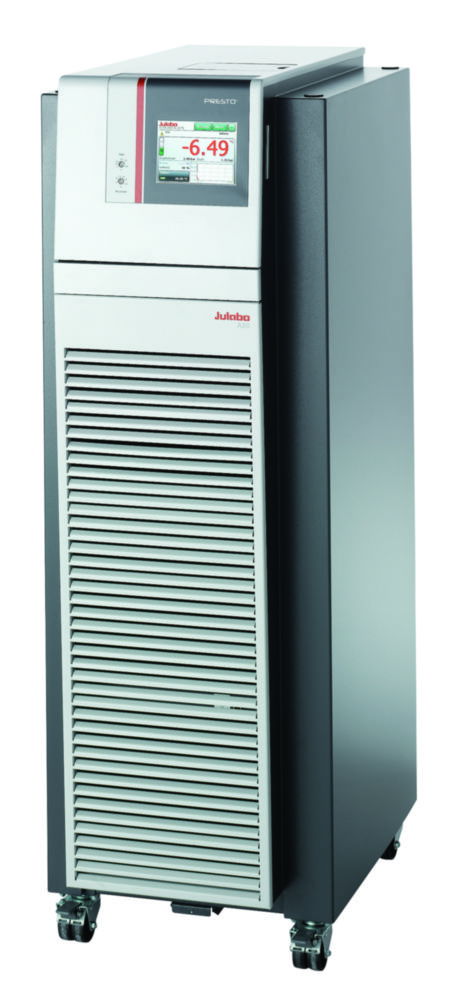

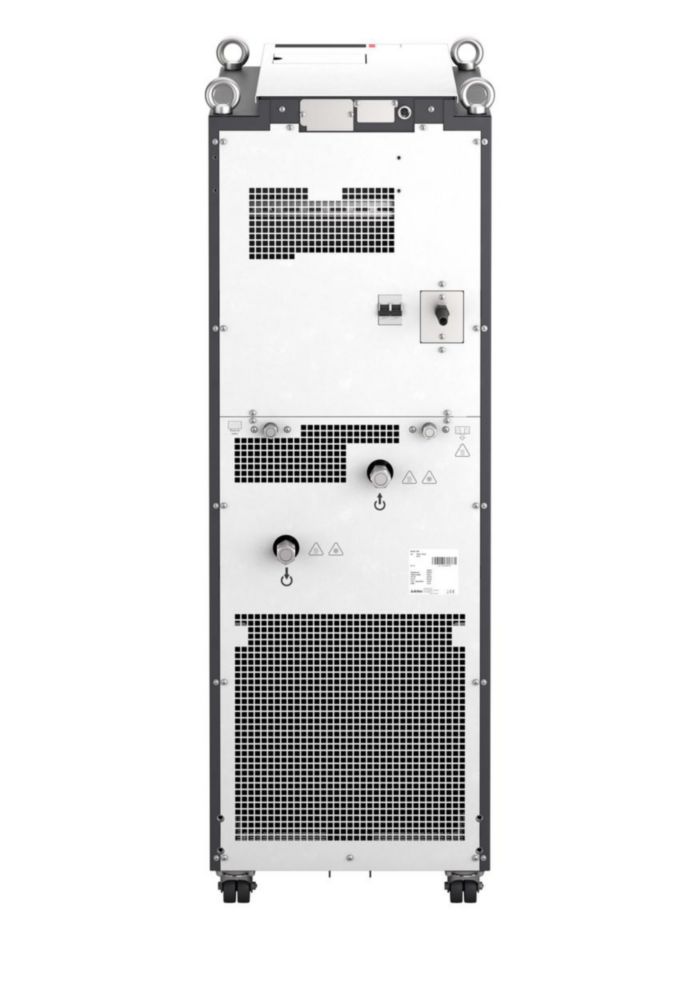

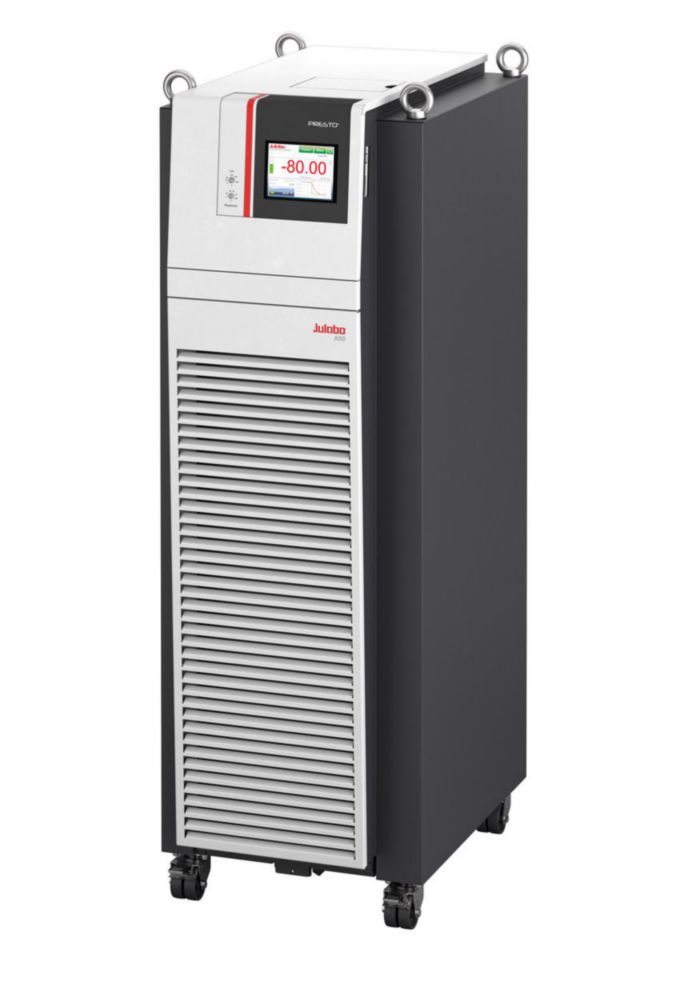

Highly dynamic temperature control systems PRESTO™, air-cooled
€0.00
Product information "Highly dynamic temperature control systems PRESTO™, air-cooled"
- Space-optimised, compact design
- Short heating and cooling times
- Large working temperature ranges without changing heat transfer media
- Minimized floor space due to side panels without ventilation slits
- 5.7" TFT touch screen
- SD card slot
- Interfaces for USB, Ethernet, RS232, Modbus
- Connections for alarm output, Pt100 external sensor, and standby-input
- ICC cascade temperature control
- Electronic level indicator
- Integrated programmer for 8 x 60 steps
- Class III (FL) acc. to DIN 12876-1
- With air-cooled refrigerating machine
- A 38, A 41, and A 70 with natural refrigerants
| Cooling capacity at 20 °C: | 1,2 kW |
|---|---|
| Ext. depth: | 650 mm |
| Ext. height: | 1260 mm |
| Ext. width: | 430 mm |
| External dimensions (WxDxH): | 430 x 650 x 1,260 mm |
| Heating capacity: | 1.8 kW |
| IP code: | IP 20 |
| Manufacturer Article Number: | 9420801 |
| Max. delivery pressure: | 1.7 bar |
| Max. flow rate: | 40 l/min |
| Max. temperature: | 250 °C |
| Max. voltage: | 230 V |
| Min. temperature: | -80 °C |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Temperature: | -80 ... 250 °C |
| Temperature stability: | ±0,01 ... ±0,05 °C |
| Type: | A 80 |
| Type of auxiliary energy: | Mains connection |
| Weight: | 164 kg |
