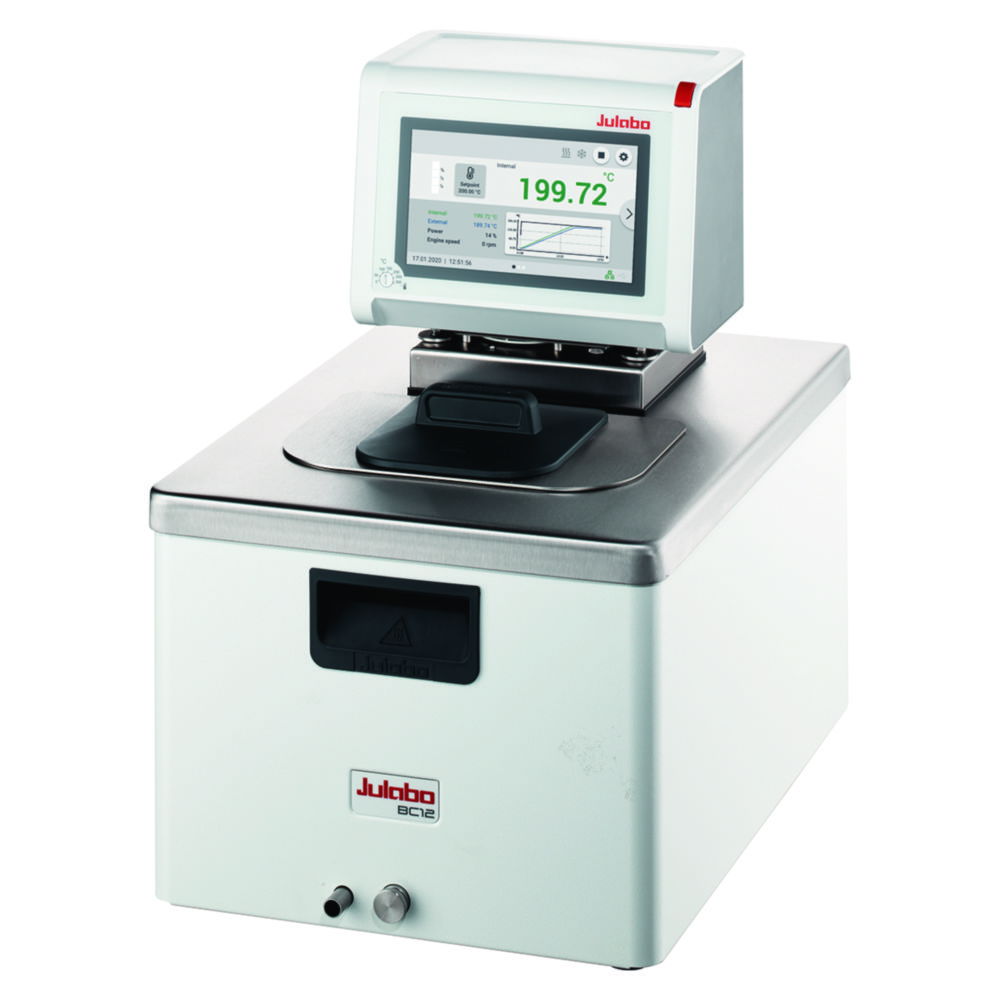

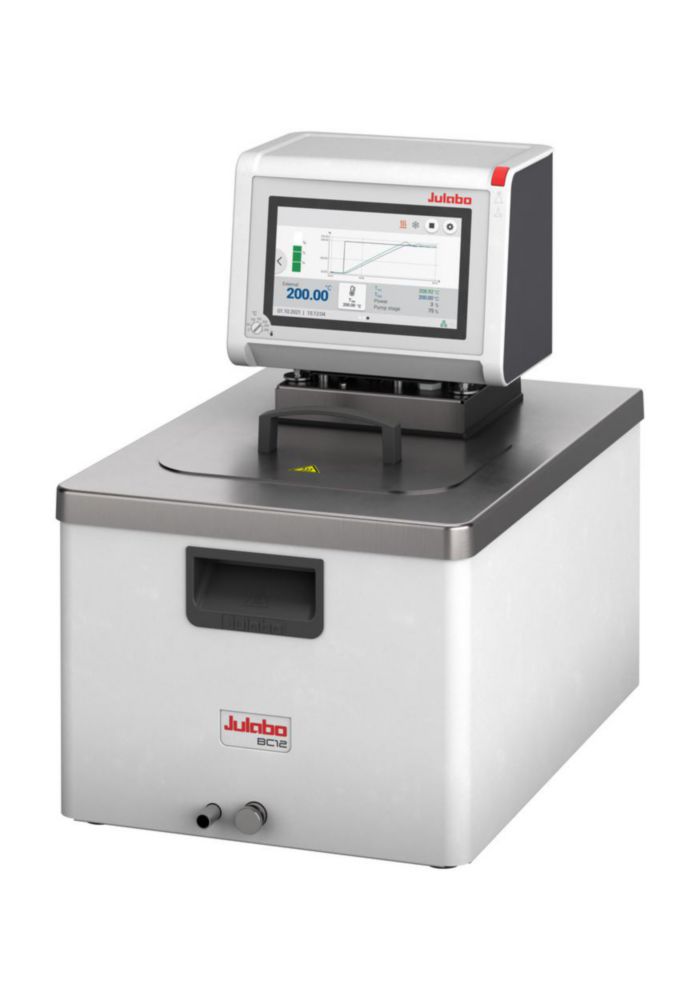

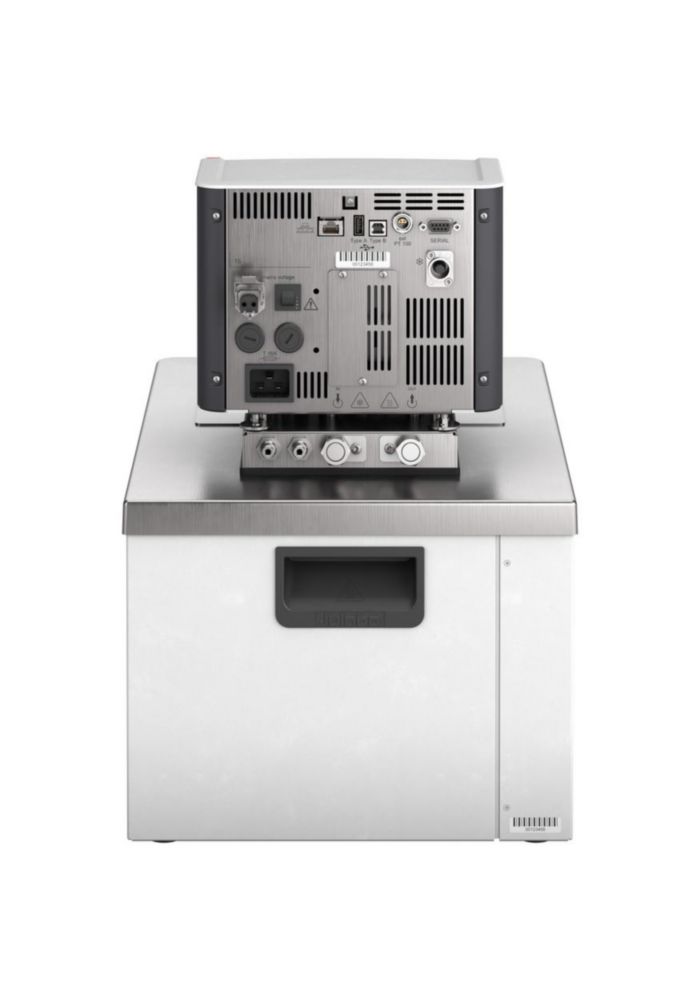

Heating circulator MAGIO MS/MX
€0.00
Product information "Heating circulator MAGIO MS/MX"
- Simple control of complex applications
- Infinitely adjustable, extremely powerful pressure and suction pump
- Large, high-resolution TFT touch display with multilingual user interface
- Medium-contacting parts made of stainless steel
- Integrated programmer
- External Pt100 connection
- USB interface
- RS232 interface
- Ethernet interface
- High quality thermal insulation of the bath tanks
- Integrated drain cock for easy and safe emptying
- Classification III according to DIN 12876-1
| Bath depth: | 200 mm |
|---|---|
| Depth opening: | 150 mm |
| Ext. depth: | 490 mm |
| Ext. height: | 470 mm |
| Ext. width: | 330 mm |
| External dimensions (WxDxH): | 330 x 490 x 470 mm |
| Heating capacity: | 3 kW |
| IP code: | IP 20 |
| Manufacturer Article Number: | 9033512 |
| Material bath: | Stainless steel |
| Max. delivery pressure: | 0.92 bar |
| Max. flow rate: | 31 l/min |
| Max. suction pressure: | 0.4 bar |
| Max. temperature: | 300 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 12 l |
| Min. temperature: | 20 °C |
| Min. voltage: | 200 V |
| Min. volume bath: | 8.5 l |
| Opening (WxD): | 220 x 150 mm |
| Power supply: | 200 ... 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Programmable: | Yes |
| Temperature: | 20 ... 300 °C |
| Temperature stability: | ±0,01 °C |
| Type: | MX-BC12 |
| Type of auxiliary energy: | Mains connection |
| Type of display: | TFT |
| Volume bath: | 8.5 ... 12 l |
| Weight: | 14.6 kg |
| Width opening: | 220 mm |
| With lid: | Yes |
| With timer: | Yes |
Login
Accessories
Temperature hoses with special single insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection. Max. pressure 6 bar (at 20 °C), 4.6 bar (at 200 °C).
Telescopic bridges are extendable from 330 to 680 mm.
Black. Tubing insulations for CR tubings.
The ProfiNet interface is a protocol converter from ProfiNet to RS232. Application interfaces RS232, 422, and 485. Bus interface ProfiNet 2Port. Mounting on DIN top-hat rail.
Minimizes oil vapors and odors at high bath temperatures.Suitable for heating circulators with the bath type BC12 and refrigerated circulators with the bath types 600F, 601F, 1000F.
Test tube racks made of stainless steel.Suitable for heating circulators with the bath types BC4, BC6, B5, BT5 and refrigerated circulators with the bath types 200F, 201F, 300F, 310F, 450F.
Temperature hoses with special triple insulation and two M16 x 1 connections. The ends are covered with silicone caps for protection. Max. pressure 6 bar (at 20 °C), 4 bar (at 350 °C).
Height adjustable.Suitable for heating circulators with the bath type BC26 and refrigerated circulators with the bath type 900F.
