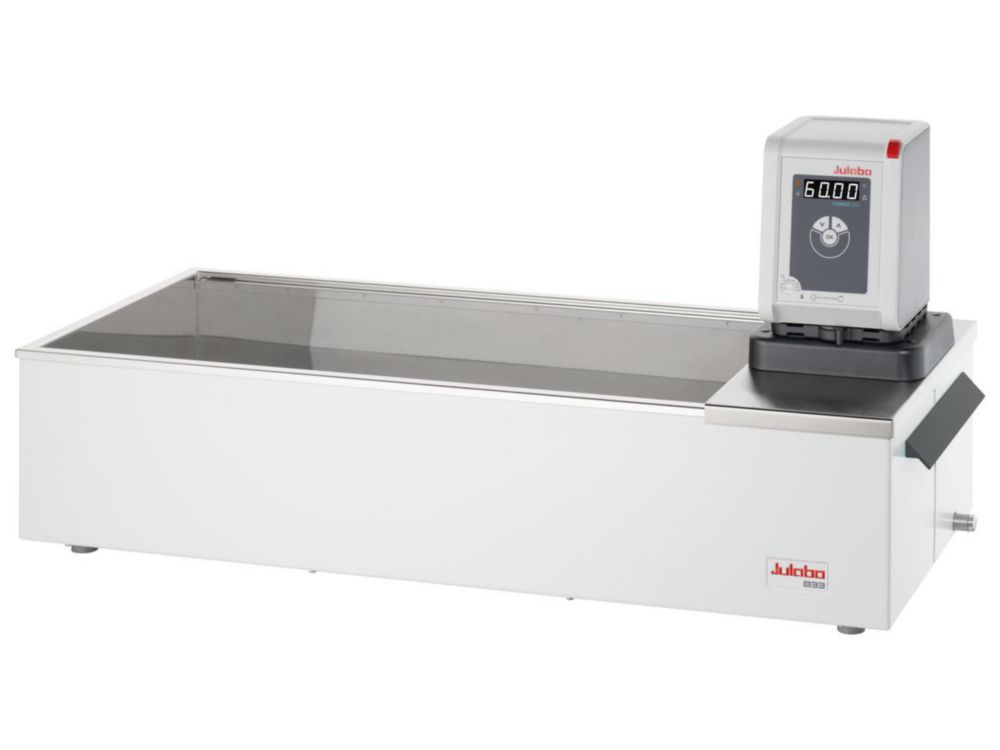

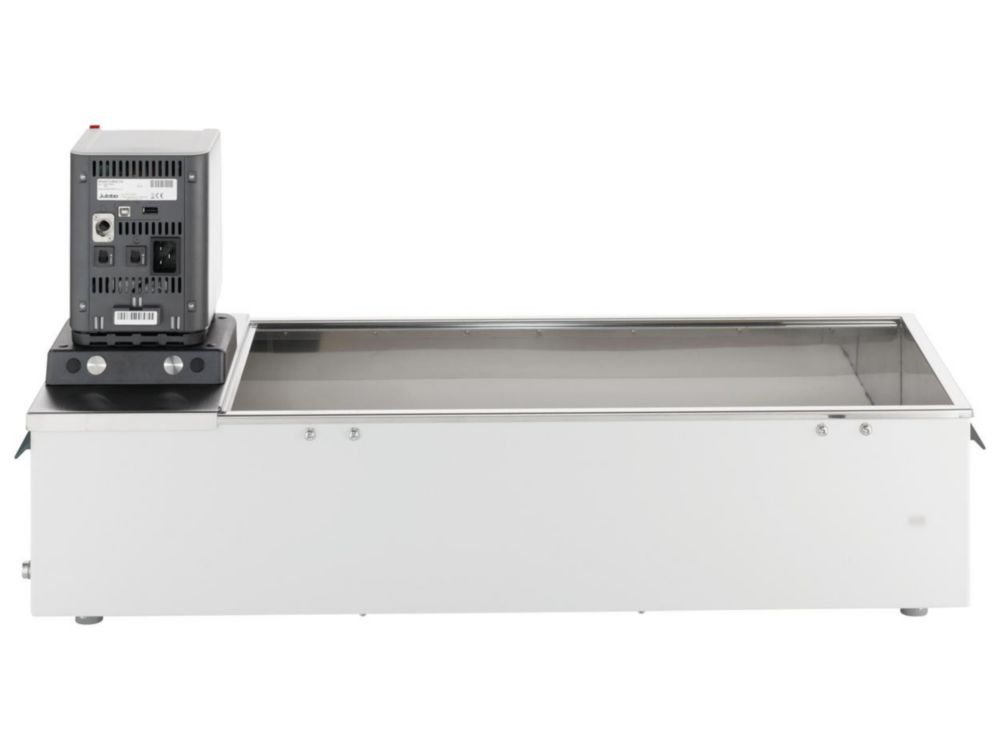

Heating bath circulator, CORIO™ CD-B, with stainless steel bath tank
€0.00
Product information "Heating bath circulator, CORIO™ CD-B, with stainless steel bath tank"
- Bright, white, easy to read display
- Very quiet
- Pump change-over between internal and external circulation
- USB connection
- Integrated drain screw (except for B5)
- Class III (FL) according to DIN 12876-1
| Bath depth: | 150 mm |
|---|---|
| Depth opening: | 320 mm |
| Ext. depth: | 360 mm |
| Ext. height: | 430 mm |
| Ext. width: | 910 mm |
| External dimensions (WxDxH): | 910 x 360 x 430 mm |
| Heating capacity: | 2 kW |
| IP code: | IP 21 |
| Manufacturer Article Number: | 9012433 |
| Material bath: | Stainless steel |
| Max. delivery pressure: | 0.35 bar |
| Max. flow rate: | 15 l/min |
| Max. temperature: | 150 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 39 l |
| Min. temperature: | 20 °C |
| Min. volume bath: | 26 l |
| Opening (WxD): | 660 x 320 mm |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Temperature: | 20 ... 150 °C |
| Temperature stability: | ±0,03 °C |
| Type: | CD-B33 |
| Type of auxiliary energy: | Mains connection |
| Volume bath: | 26 ... 39 l |
| Weight: | 21 kg |
| Width opening: | 660 mm |
| With lid: | No |
