Immersion circulator KISS E
Immersion circulator with powerful pressure/suction pump and KISS controller. Ideally suited for a variety of typical laboratory applications, such as sample temperature control, analytics, material testing, as well as for external temperature control of measuring devices or test set-ups. The device is equipped with overtemperature and low level protection. The scope of supply includes a screw clamp, which allows the thermostats to be mounted very easily on any type of vessel.Large, bright OLED displaySimple operation with menu navigationSimultaneous display of setpoint, actual temperature, Tmin, TmaxStatus displays for pump, cooling and heatingRS232 and USB interfaceAutostart function for power failureSafety class III (FL) acc. to DIN 12876
Immersion circulator MX
Immersion circulator for all kinds of water baths. It clamps securely to both straight and curved tank walls. The patented, closed housing protects the user and the heating element.Minimum working depth 7,5inch/19 cmLarge LCD-displayDisplay resolution 0,1 °CDisplays actual and set point temperature simultaneouslyIntegrated pump and heater protectionIntegrated over-temperature protectionLow liquid level protectionIncluded clamp for straight and curved tank walls
Immersion thermostat IC basic
Immersion thermostat for tempering of liquids in open or covered vessels up to a temperature of 250 °C. With integrated, extendable bath bridge for hanging in bath tanks of various sizes. The integrated, adjustable pressure and suction pump allows the IC basic to be used for internal or external applications. An optional cooling coil can be connected to the unit for temperature control below or near the ambient temperature. The IC basic ensures fast heat-up times and stable temperature conditions and can be used even with flammable liquids.Complete packages with all necessary components (bath vessels, covers, bath bridges, pump connection sets and cooling coils) are also available.Visual and acoustic warning functions for excess temperature, sub-level and over-levelLED display for adjustment of relevant parametersMenu navigation via push and turn buttonsAdjustable safety circuitIntegrated M16 x 1 connectors for external applicationsConnection for external Pt100 temperature probeUSB/RS 232 interface
Labwise software for Thermostatic controllers Optima™ series
Permits the remote set-up and programming of thermostats with interface from a PC. Real-time temperature / time profile and graphic representation of processes. Profile documentation and programme memory on disk. Minimum requirements: Microsoft Windows XP, Vista (32/64 bit), or Windows 7 (32/64 bit). Pentium III / Celeron 866 MHz or equivalent.
Lockable bath cover for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™
Minimizes oil vapors and odors at high bath temperatures.Suitable for heating circulators with the bath type BC12 and refrigerated circulators with the bath types 600F, 601F, 1000F.
Open bath system AD, with stainless steel bath
Bath system with Advanced Digital (AD) temperature controller. Controller bridge rests securely on the bath tank, but can be easily removed for cleaning. The generous bath opening provides direct access to the samples.Intuitive 3.75" display with touch-pad controlLarge 180° rotatable Swivel 180™ displayPressure/suction pump with variable speed and external circulation capability in open and closed control loopsUSB, Ethernet, RS-232/RS-485 interfaceConnection for external Pt100 temperature sensor4 languages selectableAutomatic performance optimization and specific heat tuningSingle-point calibration capabilityClass I (NFL) acc. to DIN 12876-1
Open bath system AP, with stainless steel bath
Bath system with Advanced Programmable (AP) temperature controller. Controller bridge rests securely on the bath tank, but can be easily removed for cleaning. The generous bath opening provides direct access to the samples.Intuitive 4.3" SmartTouch displayLarge 180° rotatable Swivel 180™ displayPressure/suction pump with variable speed and external circulation capability in open and closed control loopsUSB, Ethernet, RS-232/RS-485 interfaceConnection for external Pt100 temperature sensorOpenMode time/temperature programmingEvent scheduling (time and date) with real-time clock11 languages selectableReview temperature trends for up to 10 daysMultiple selectable ‘home’ screensAutomatic and/or user adjustable performance optimisation10-point calibration capabilityClass I (NFL) acc. to DIN 12876-1
Open bath system MX, with stainless steel bath
Bath system with MX temperature controller. The Controller bridge rests securely on the bath tank, but can be easily removed for cleaning. The generous bath opening provides direct access to the samples.3.25" LCD displayPressure pump with 1 pump speedExternal circulation: closed loopSingle-point calibration capabilityClass I (NFL) acc. to DIN 12876-1
Pump adapters
Complete, for KISS E, CC-E and with baths as indicated. Incl. hose connectors NW 12.
Pump set for immersion circulators CORIO™ and DYNEO™
Pump set for temperature control of external applications with pump connectors M16x1.
Racks for Falcon tubes for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™
Racks for Falcon tubes made of stainless steel.Suitable for heating circulators with the bath types BC4, BC6, B5, BT5 and refrigerated circulators with the bath types 200F, 201F, 300F, 310F, 450F.

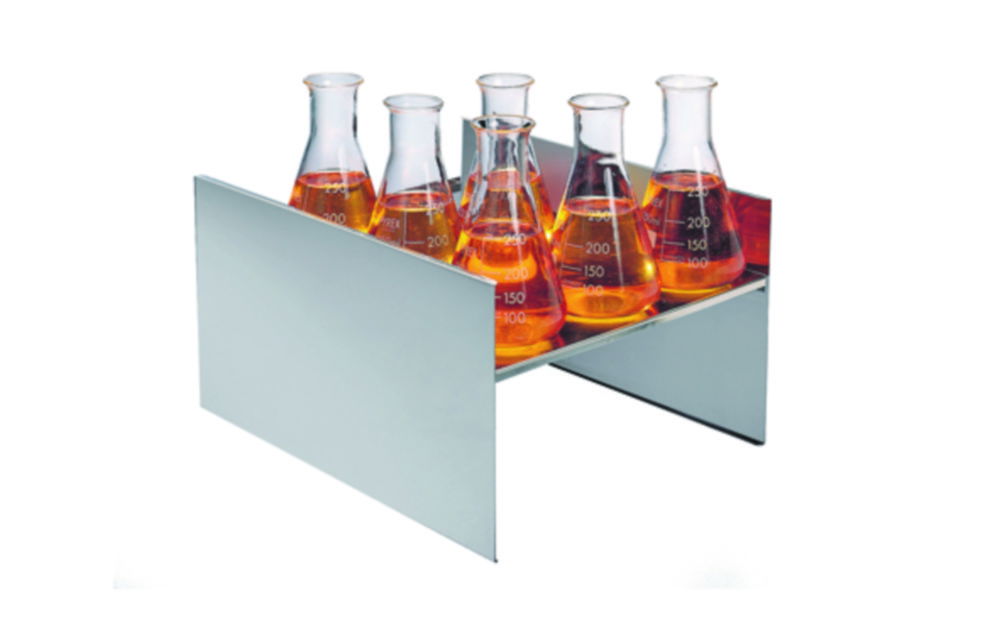

Raised shelves for water baths Optima™ series
The effective liquid depth is reduced in order to place small or shallow containers in the bath.
Reaction vessels, cylindrical, with thermostatic jacket
With graduationLaboratory flange LFGrooveFlat bottomTwo connectors with threads GL 14 or GL 18Made of DURAN® tubingOther sizes on request.

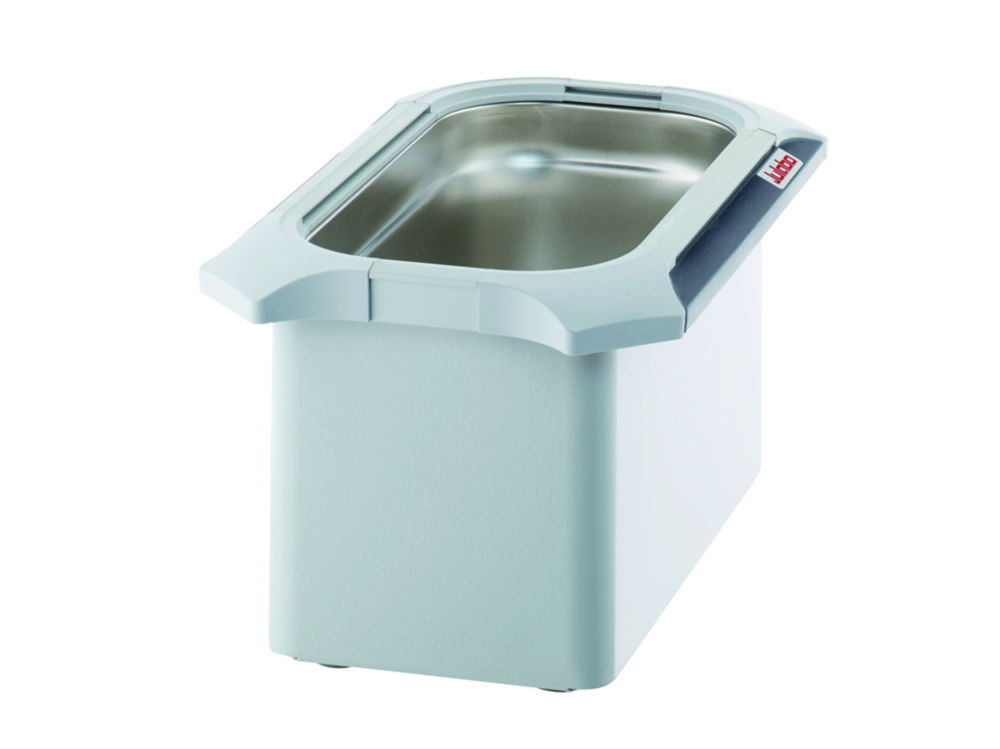

Stainless steel bath tanks for immersion thermostats CORIO™ C/CD
Stainless steel bath tanks (insulated) for immersion thermostats CORIO™.
Tanks Optima™ series, stainless steel
High efficiency stainless steel (ST) tanks (range -15 °C to 200 °C). Drain tap included on ST12, ST18, ST26, ST38. Raised feet for carrying repositioning and retort access. Accessory polypropylene spheres or a lid must be used at temperatures between 60 °C and 100 °C. Above 100 °C only a lid must be used. Accessory cooling is required for temperatures below ambient.Please order lid and PP spheres separately.
Telescopic bridges for heating and refrigerated circulators
Telescopic bridges are extendable from 330 to 680 mm.
Temperature control systems IC basic pro c, with stainless steel bath
Complete, ready-to-connect temperature control systems with immersion circulator, stainless steel bath and all required accessories. For liquid temperature control in a bath tank. Suitable up to a temperature of 150 °C, for internal and external applications.Visual and acoustic warning functions for excess temperature, sub-level and over-levelLED display shows all relevant parametersMenu navigation via push and turn buttonsAdjustable safety circuitWith integrated M16x1 connectors for external applicationsConnection for external Pt100 temperature probeUSB/RS 232 interfaceScope of supply: immersion circulator, stainless steel bath, temperature sensor, cooling coil, cover, bath bridge

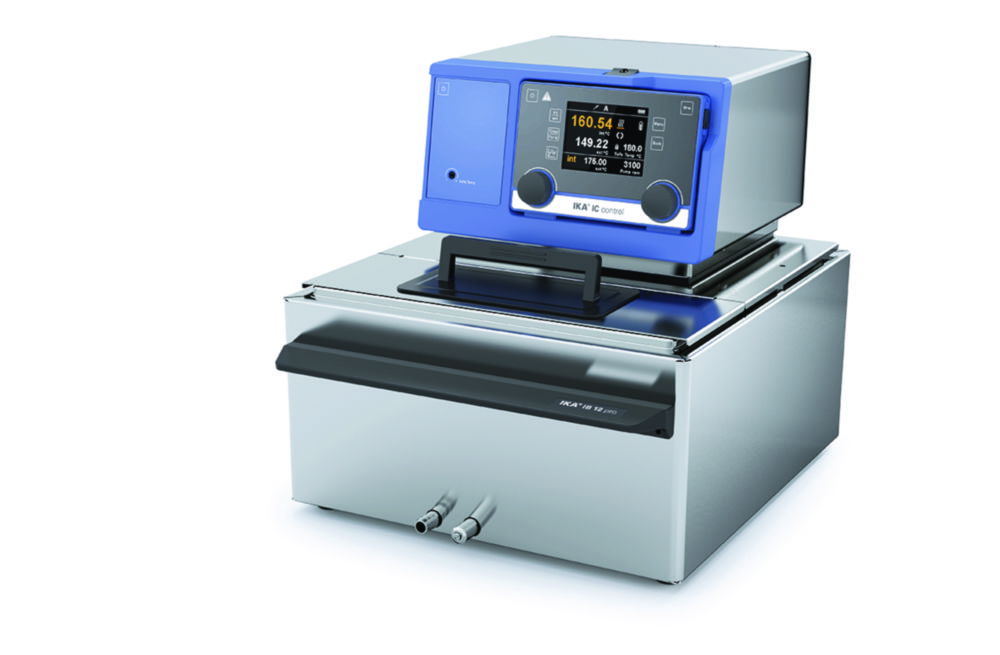

Temperature control systems IC control pro c, with stainless steel bath
Complete, ready-to-connect temperature control systems with immersion circulator, stainless steel bath and all required accessories. For liquid temperature control in a stainless steel bath tank up to a temperature of 250 °C. With integrated cooling coil and easy switching between internal and external control. Large TFT display with multilingual user interface.Detachable display for wireless remote control, e.g. outside closed fume hoodsVisual and acoustic warning functionsWith integrated M16x1 connections for external applicationsAdjustable safety circuitElectronic timer function: 0 - 99 h 59 minConnection for solenoid valveUSB/RS 232 interfaceScope of supply: control immersion circulator, stainless steel bath, temperature sensor, cooling coil, cover, bath bridge

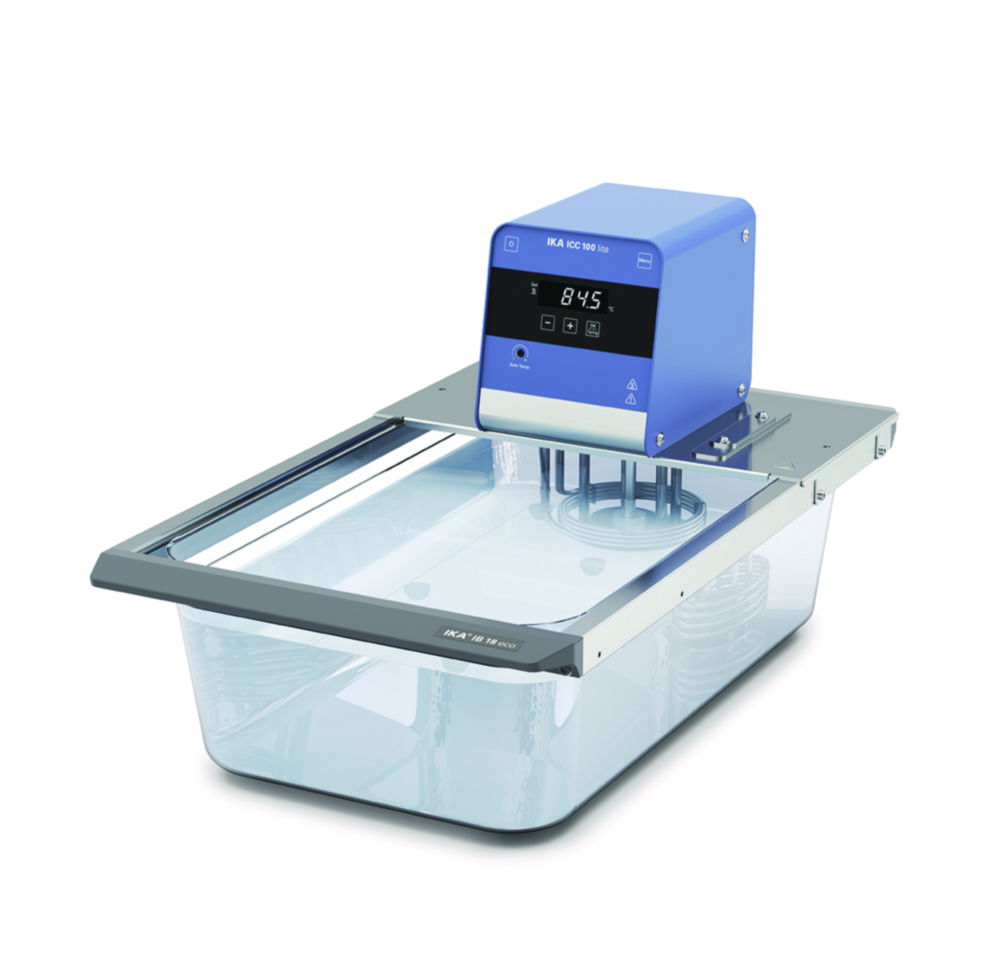

Temperature control systems ICC 100 lite eco 18
Compact and powerful immersion circulators with plastic bath for temperature control of water up to 100 °C. With internal circulation.Scope of supply: Immersion circulator ICC 100 lite, plastic bath IB 18 eco (L), bath bridge BL.ICC lite big

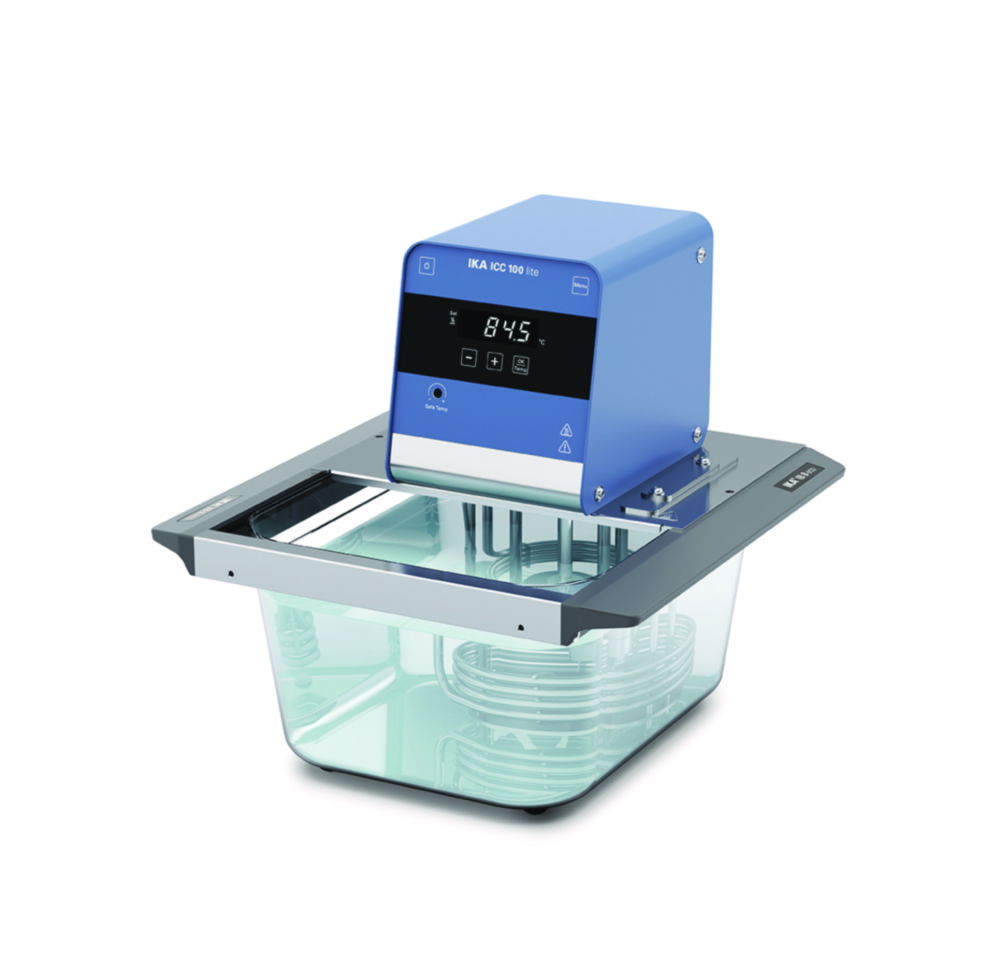

Temperature control systems ICC 100 lite eco 8
Compact and powerful immersion circulators with plastic bath for temperature control of water up to 100 °C. With internal circulation.Scope of supply: Immersion circulator ICC 100 lite, plastic bath IB 8 eco (S), bath bridge BS.ICC lite small
