Compact refrigerated circulators - Ministat®
Exceptionally compact and powerful, Ministats have been the smallest cooling circulators in the world since 1976. Their compact form allows them to be placed in small spaces, e.g. in a laboratory extraction hood. Compliance with DIN 12876, class 3 allows them to be used unsupervised in continual operation. The maximum ambient temperature is 40 °C.The powerful variable speed pressure/suction pump can thermoregulate objects in the bath or external applications. The maximum pressure can be controlled using an optional pressure sensor - VPC (Variable Pressure Control) - which protects delicate glassware. The small volume and high power of the Ministats means exceptionally rapid heating and cooling rates are achieved. Optional displacement inserts reduce the bath volume by approximately 50 % amplifying this effect and reducing moisture absorption in the thermal fluid. All models have Active Cooling Control for cooling power control at the maximum working temperature and an automatic cooling power regulation for energy saving operation and reduced heat dissipation into the lab.The bath opening is large enough to allow small objects to be thermoregulated within. All parts in contact with the thermal fluid are made of stainless steel or Polycarbonate.Ministats have the Pilot ONE with Plug & Play technology (proven since 1980). In the event of service the controller can be simply swapped. Using a data cable the Ministat can be remotely controlled. The Pilot ONE has a state of the art microprocessor controller and a high precision temperature measurement system for exact and reproducible temperature control. The functionality and TFT-display are supported by Easy Control.Typical applications for the smallest cooling circulator in the world are external closed systems e.g. photometer, refractometer and viscosimeter.Pump pressure max.: Max. suction:27 L/min / 0.7 bar 20 L/min / 0.4 barTemperature Stability to DIN 12876:0.02 KAll units use natural refrigerant as standard.*with displacement insert
Compatible Control Refrigeration Circulators K6
The K6 models are compact refrigeration bath circulators for temperatures from -25 to 200°C. These units are a combination of a refrigerated bath and immersion circulator, in combination with an integrated pump they are suitable for external open (with level control) and closed applications. The CC-E immersion circulator with its suction / pressure pump is suitable to externally open and closed applications. The temperature stability is 0.02K for the Compatible Control models and 0.05K for the KISS models.Safety class:FL, IIIHeating capacity :2 kWPressure pumpCC-K6 / CC-K6s:27L/min / 0.7 barKISS-K6 / KISS-K6s:14 L/min / 0,25 barAll units use natural refrigerant as standard.

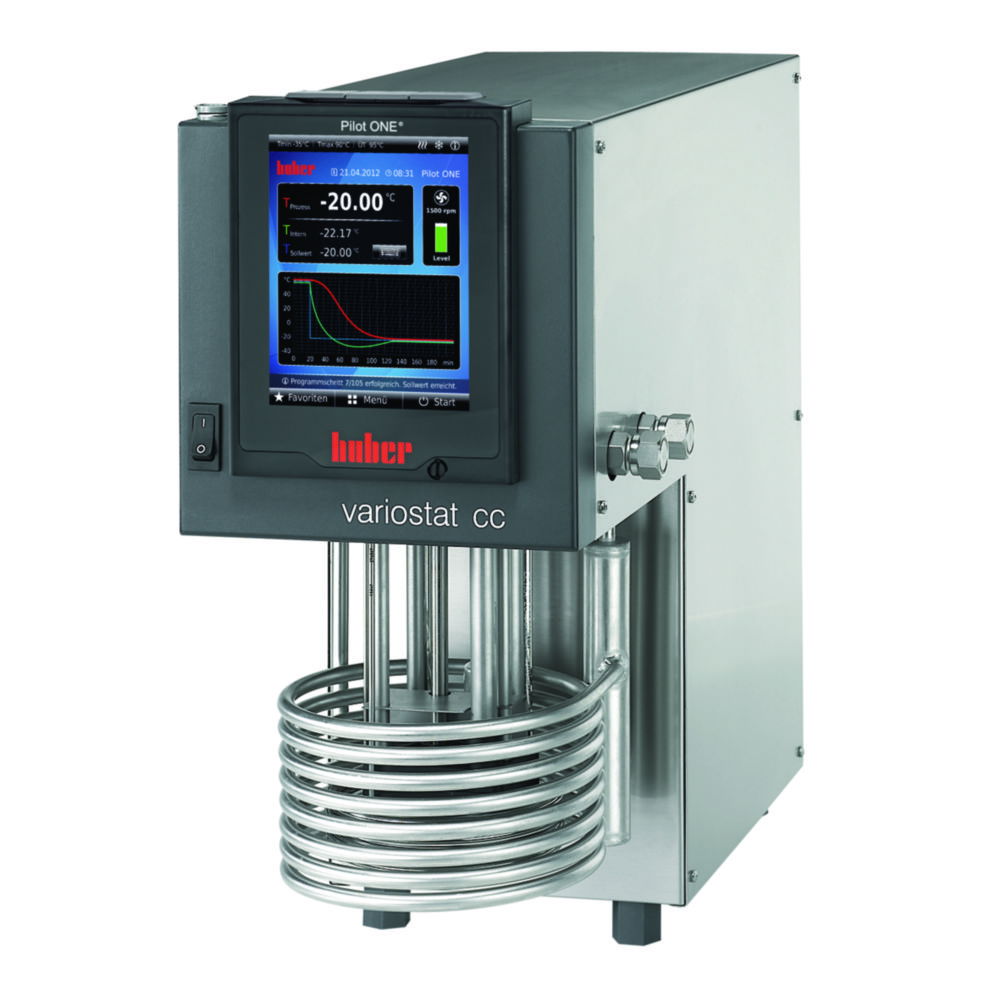

Cooling circulator Variostat® for a variety of baths
This unique immersion circulator can thermoregulate a wide range of baths between -30°C and 150°C. This innovative construction allows the user ultimate flexibility. The circulation can be adjusted to suit the bath size using the stepless, variable speed suction/pressure pump. The pump can also be controlled with an optional pressure sensor for external applications.

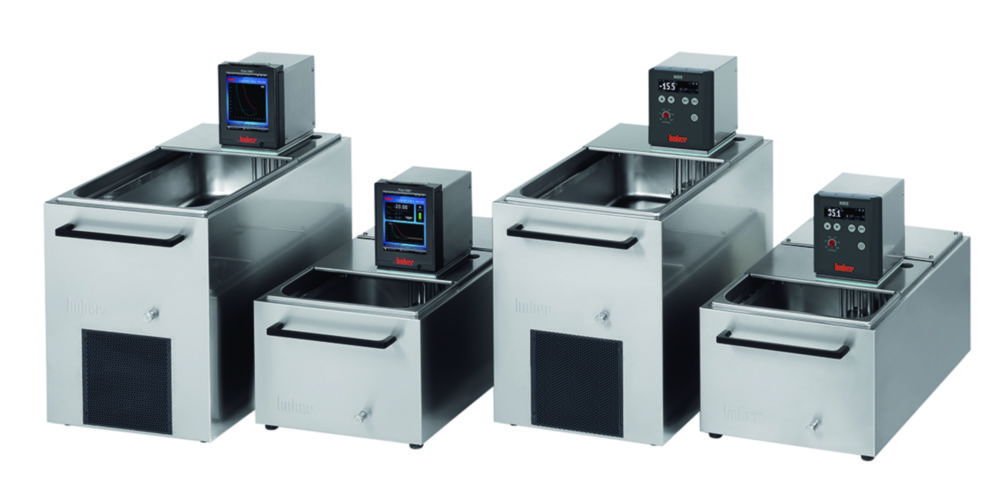

Cooling circulators
Combinations of immersion circulators and insulated refrigeration baths are low-cost solutions for direct thermoregulation within the temperature range -20/-30°C to +200°C. The refrigeration baths operate with natural refrigerants. A pump adapter (optional) can be fitted for thermoregulation of externally closed applications. Models with the Pilot ONE controller have a variable speed pressure/suction pump and are therefore suitable for external open thermoregulation applications. The temperature stability is 0.02K for the Compatible Control models and 0.05K for the KISS models.
Cooling/heating bath circulator CBC visc lite
Designed for combination with the IKA ROTAVISC viscometers and covers a wide temperature range.A second beaker (600 ml) can be pre-tempered during the measurementOptimised water flow management in the insulated bath for fast and precise temperature control.Equipped with environmentally friendly natural refrigerant R290External pump connection for heating standard vessels according to DIN for absolute viscosity definition with ELVAS spindles or double-walled beakersEasy to maintain thanks to easily removable and therefore easy-to-clean air filters
Double-walled wide-mouth bottles GLS 80®, DURAN®
The DURAN® double-walled wide-mouth bottles GLS 80® incorporate an integral jacket that isolates the contents from the external environment. Heated or cooled liquids can be circulated through the jacket to control the temperature within the screw topped DURAN® bottle.ApplicationsSimple, low cost, jacketed chemostat or bioreactor for cell cultureVessel for temperature-controlled reactions such as enzyme digestionsSimple continuous flow stirred reactor system with the optional GLS 80® cap componentsThermostatic vessel to maintain fluids, or high viscosity liquids at a constant temperature, useful when working with endo- or exothermic reactionsLarge cold trap or condenser when used with dry ice in the inner containerFeaturesUsable temperature range of - 40 to 120 °CManufactured from DURAN® borosilicate 3.3 glassAll components are fully autoclavableAvailable in two sizes: 500 and 1000 mlCompatible with full range of wide mouth GLS 80® connection cap systems for liquid addition or removal during processing

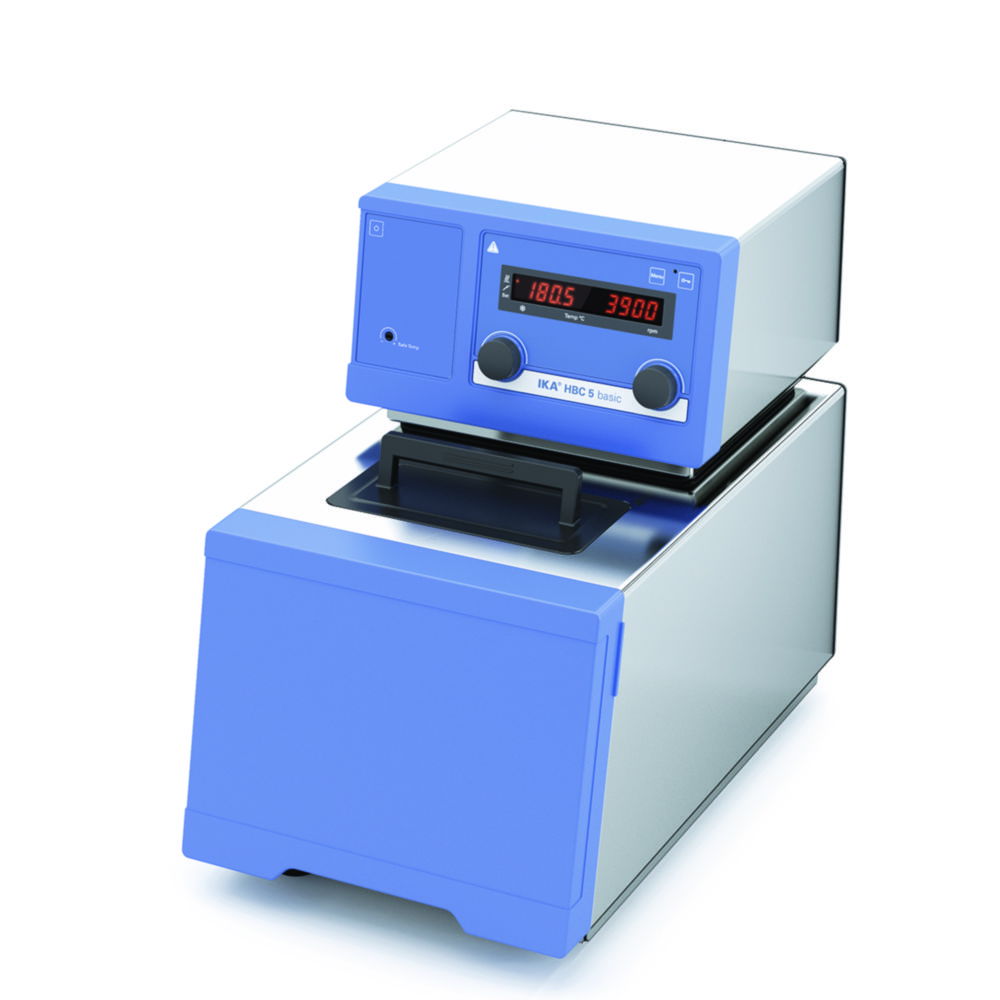

Heated bath circulators HBC basic, with stainless steel bath
Heated bath circulators with stainless steel bath for operating temperatures up to 250 °C. Easy switching between internal and external control. With integrated cooling coil and powerful pressure and suction pump in a housing made of temperature and chemical resistant plastic. The large surface of the radiator allowes for an optimum heat exchange, even heating of the medium and very fast heat-up times. The bath is easy to clean and has a drain valve with hose connection on the front for draining the bath. Can be operated with flammable liquids.Adjustable safety circuitSimple menu navigation with push buttons and rotary knobsVisual and audible warning functionsUSB/RS 232 interfaceWith large, easy-to-read LED display

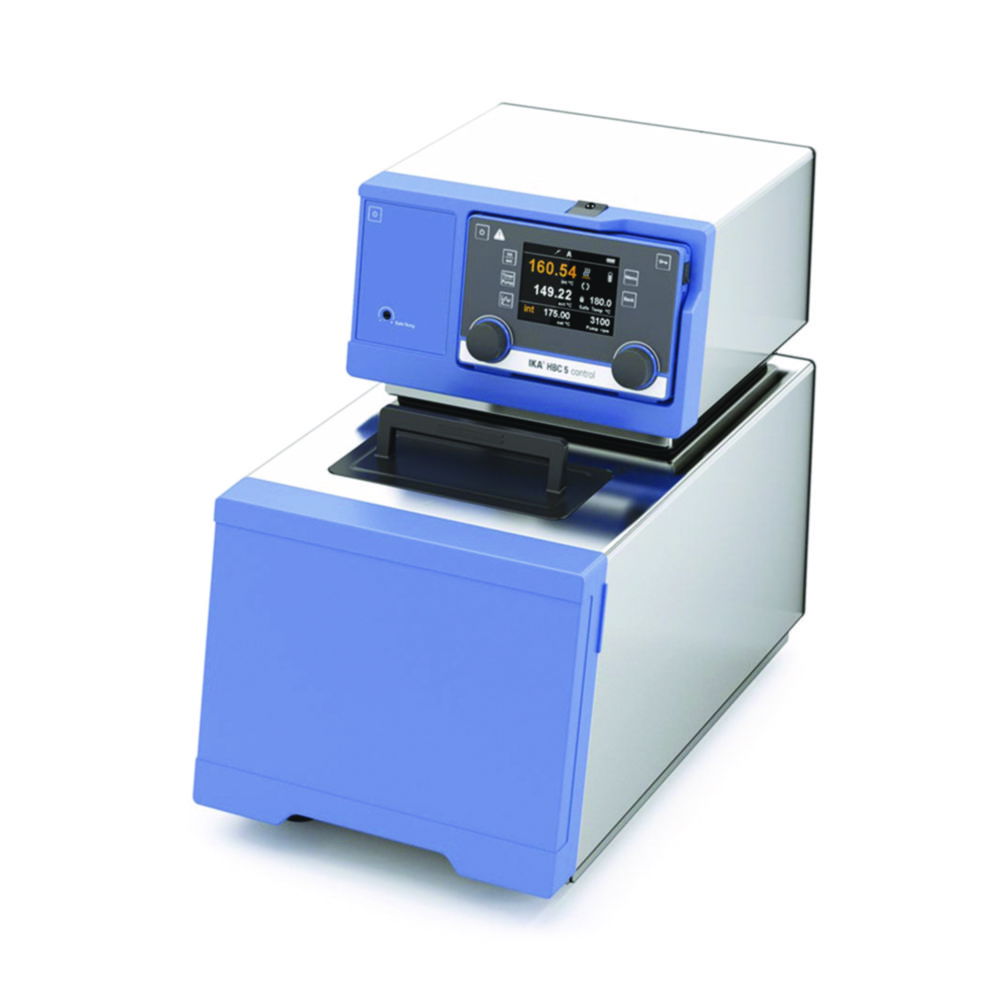

Heated bath circulators HBC control, with stainless steel bath
Heated bath circulators with stainless steel bath for operating temperatures up to 250 °C. Easy switching between internal and external control. With integrated cooling coil and powerful pressure and suction pump in a housing made of temperature and chemical resistant plastic. The large surface of the radiator allows for an optimum heat exchange, even heating of the medium and very fast heat-up times. The bath is easy to clean and has a drain valve with hose connection on the front for draining the bath. Can be operated with flammable liquids.Adjustable safety circuitSimple menu navigation with push buttons and rotary knobsVisual and audible warning functionsUSB/RS 232 interfaceWith removable TFT display for controlling and monitoring the device parameters. The display can be used as a remote control, e.g. in a fume hoodWith timer functionA solenoid valve can be connected

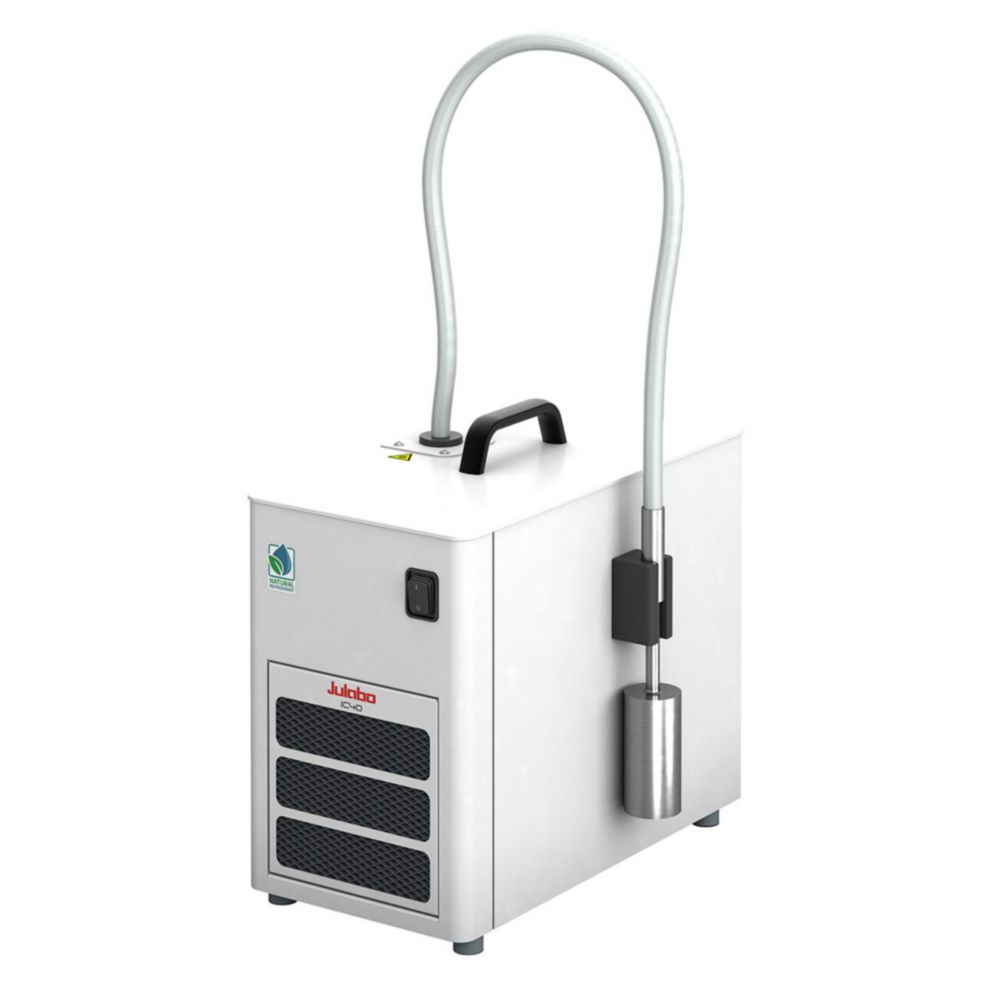

Immersion cooler IC40/50
The modern immersion cooler is used for rapid cooling of fluids, for counter-cooling in conjunction with heating circulators or as a dry ice substitute. It is primarily used for open applications. Thanks to its simple operation and handling, the device is recommended for a wide range of cooling tasks. All models work with natural, climate-friendly refrigerant. The magnetic probe holder enables flexible and stable attachment of the probe. The tool-free removable venting grid facilitates regular cleaning.Preventing unnecessary tap water consumption for coolingProbe dimensions (L x Ø) 100 x 50 mmClassification I (NFL)

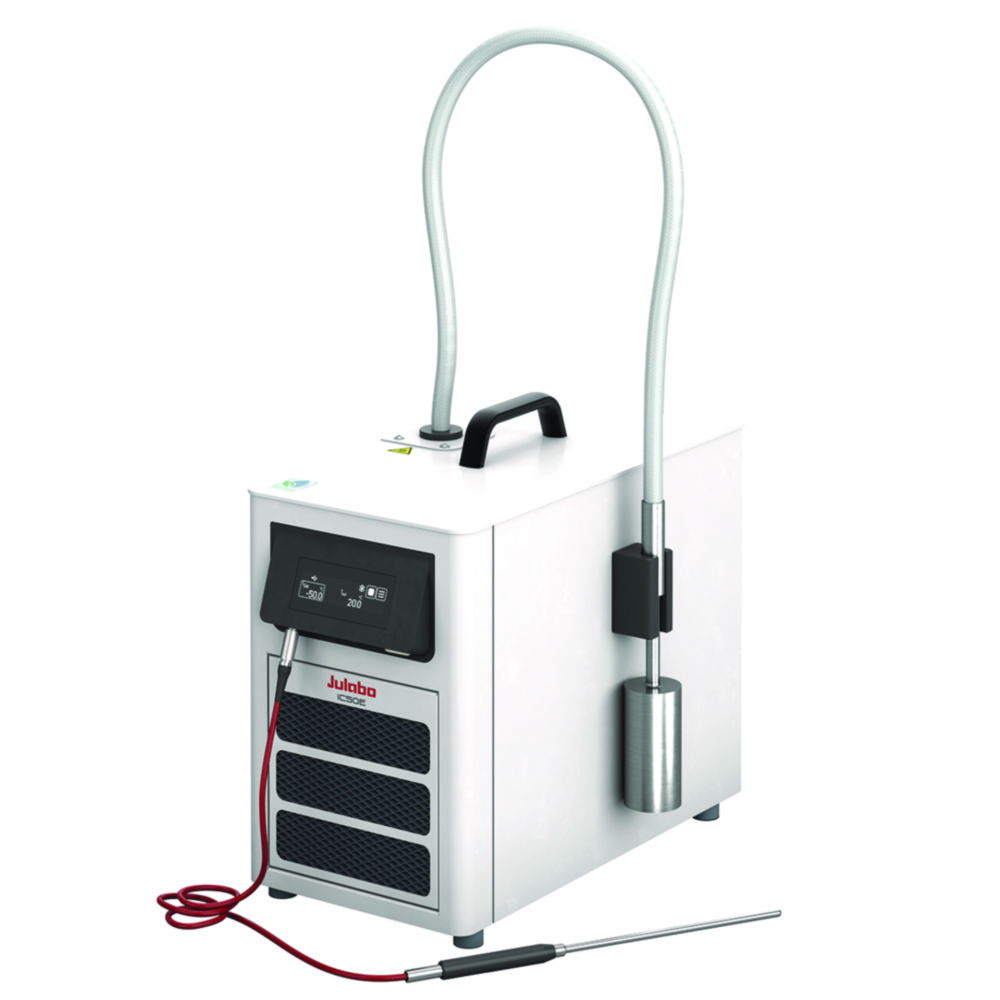

Immersion cooler IC50E
The modern immersion cooler is used for rapid cooling of fluids, for counter-cooling in conjunction with heating circulators or as a dry ice substitute. It is primarily used for open applications. Thanks to its simple operation and handling, the device is recommended for a wide range of cooling tasks. All models work with natural, climate-friendly refrigerant. The magnetic probe holder enables flexible and stable attachment of the probe. The tool-free removable venting grid facilitates regular cleaning.Inclined OLED touch display with intuitive menu navigationWarnings and messages in easy-to-understand full-text languageAutoStart functionUSB interfaceConnection for a Pt100 temperature sensorPreventing unnecessary tap water consumption for coolingProbe dimensions (L x Ø) 100 x 50 mmClassification I (NFL)

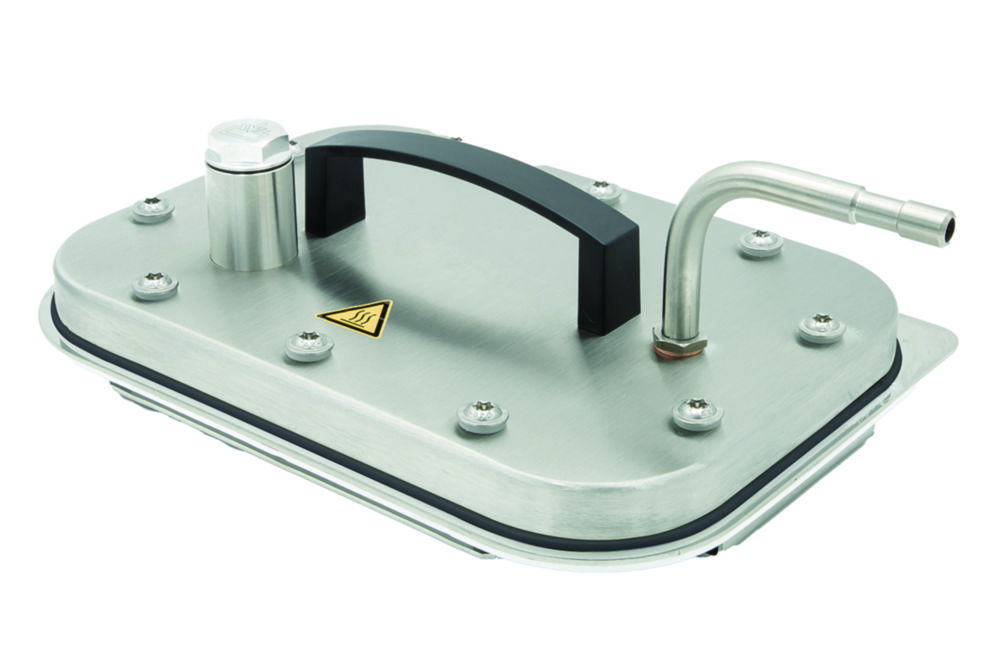

Lockable bath cover for heating and refrigerated circulators MAGIO™ / DYNEO™ / CORIO™
Minimizes oil vapors and odors at high bath temperatures.Suitable for heating circulators with the bath type BC12 and refrigerated circulators with the bath types 600F, 601F, 1000F.
Racks for Falcon tubes for heating and refrigerated circulators MAGIO™/DYNEO™/CORIO™
Racks for Falcon tubes made of stainless steel.Suitable for heating circulators with the bath types BC4, BC6, B5, BT5 and refrigerated circulators with the bath types 200F, 201F, 300F, 310F, 450F.

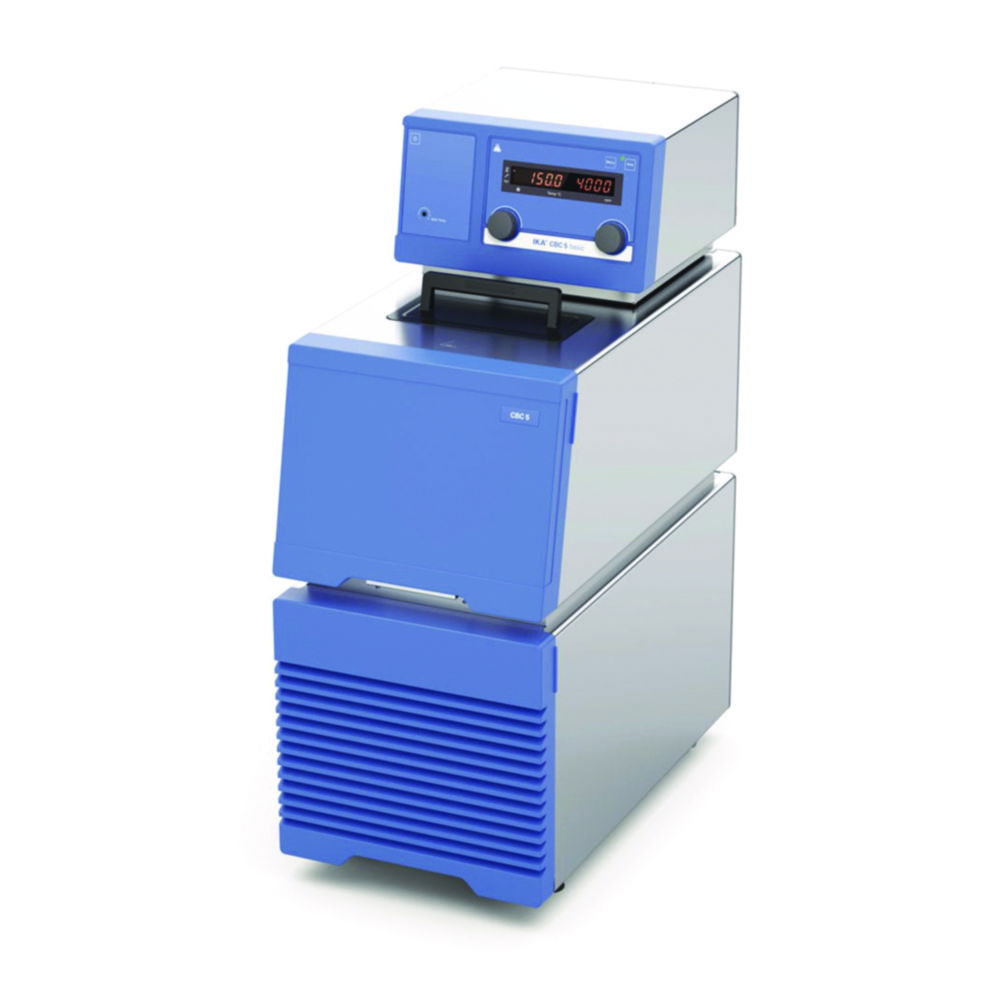

Refrigerated / heated circulatores CBC 5 basic
Powerful circulators with strong heating and cooling power for operating temperatures from -25 °C to 200 °C. With speed-controlled pressure and suction pump, suitable for external applications. Very good thermal insulation, therefore particularly fast heating-up times and low heat input at low temperatures. All parameters can be read, monitored and documented via software.Connection for external Pt100 temperature sensor and external solenoid valves via Multi I/O connectionVisual and audible warning functionsUSB/RS 232 interfaceSafety drain valveAdjustable safety circuitCalibration optionWith built-in LED display for controlling and monitoring the device parameters

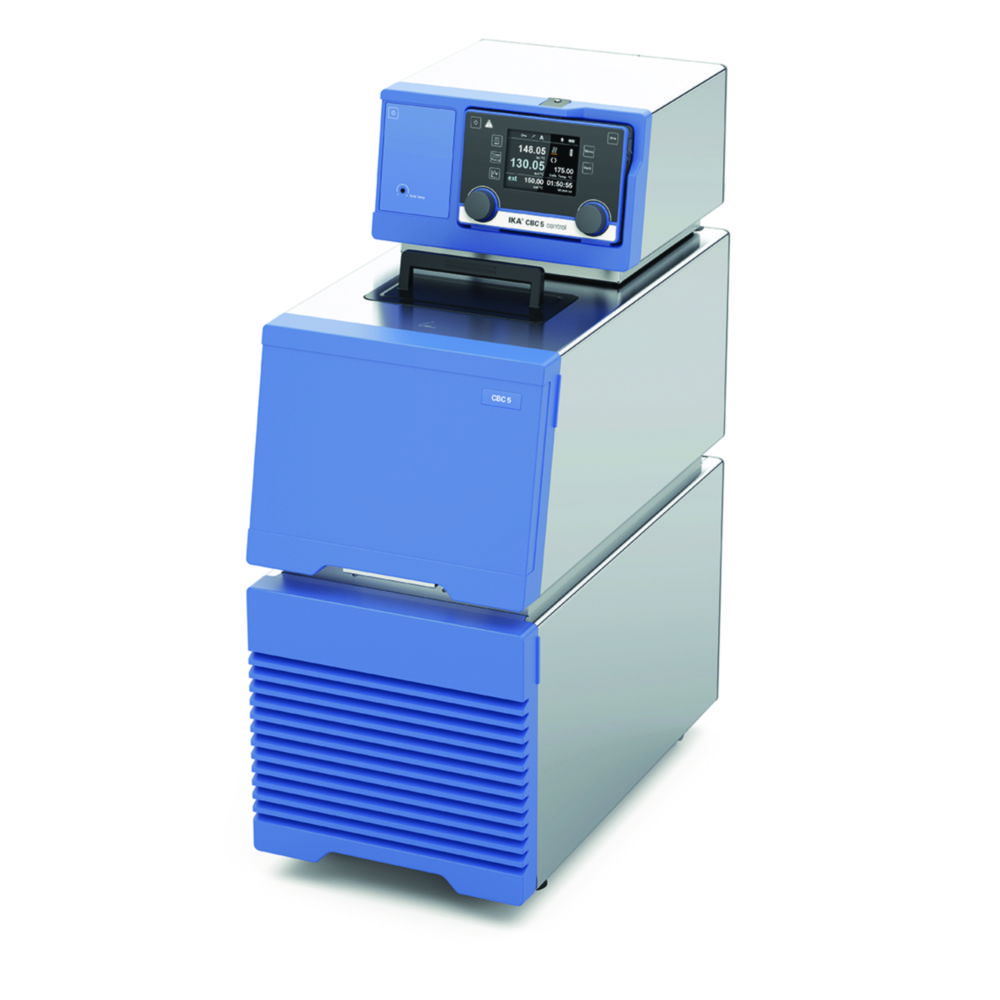

Refrigerated / heated circulatores CBC 5 control
Powerful circulators with strong heating and cooling power for operating temperatures from -25 °C to 200 °C. With speed-controlled pressure and suction pump, suitable for external applications. Very good thermal insulation, therefore particularly fast heating-up times and low heat input at low temperatures. All parameters can be read, monitored and documented via software.Connection for external Pt100 temperature sensor and external solenoid valves via Multi I/O connectionVisual and audible warning functionsUSB/RS 232 interfaceSafety drain valveAdjustable safety circuitCalibration optionWith removable TFT display for controlling and monitoring the device parameters. The display can be used as a remote control, e.g. in a fume hood

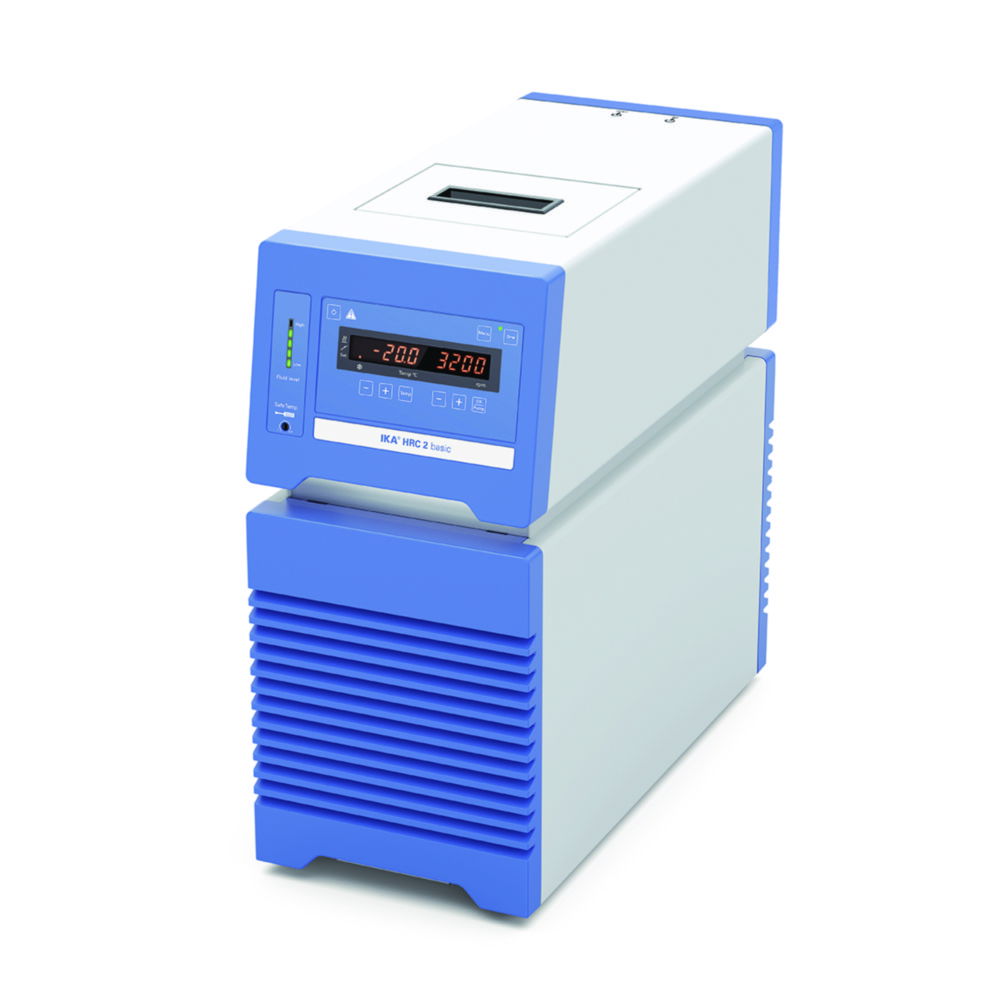

Refrigerated / heated circulators HRC 2 basic
The compact refrigerated and heated circulators are renowned for their high energy efficiency and on-demand and speed-controlled compressor, which reduces noise and operating costs. The high-quality isolation of the 4 l bath allows fast heating and reduces heat input when cooling. Using the external temperature control circuit, it is possible to have up to 2.5 l thermofluid without a refill. The integrated hopper and drain valve ensure safe and clean handling of the thermofluid. Speed-controlled refrigeration systemSpeed-controlled pump (PEEK)Digital level indicatorInterfaces: RS 232 and USB

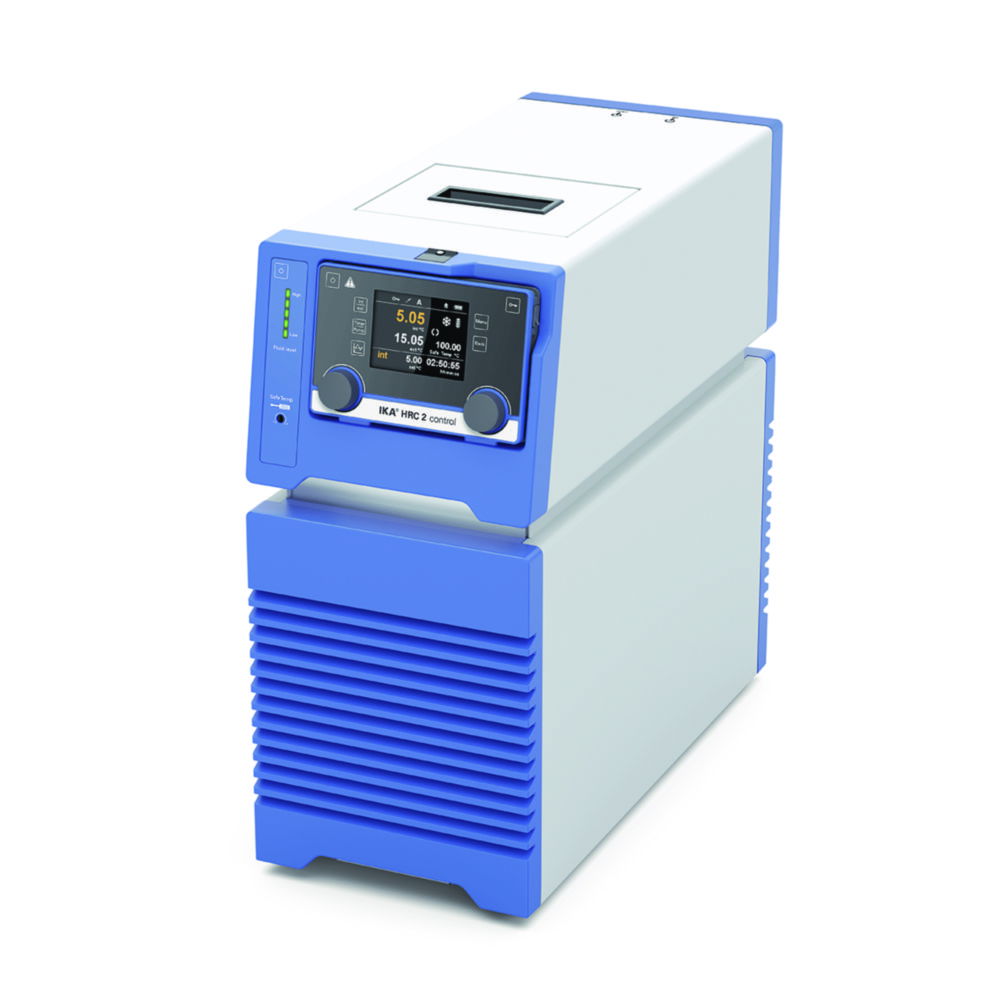

Refrigerated / heated circulators HRC 2 control
The compact refrigerated and heated circulators are renowned for their high energy efficiency and on-demand and speed-controlled compressor, which reduces noise and operating costs. The high-quality isolation of the 4 l bath allows fast heating and reduces heat input when cooling. Using the external temperature control circuit, it is possible to have up to 2.5 l thermofluid without a refill. The integrated hopper and drain valve ensure safe and clean handling of the thermofluid. The HRC 2 control in combination with an external temperature sensor is perfectly suitable to precisely temper external closed or open applications.Speed-controlled refrigeration systemSpeed-controlled pump (PEEK)Digital level indicatorInterfaces: RS 232 and USBRemote control via Wireless Controller (WiCo)Simplified and automated processes through 10 freely programmable temperature ramps with 10 steps eachTimer/CounterDegassing functionAdjustable temperature safety circuitConnection of magnetic valves possible (Multi IO)Alarm contact (Multi IO)Connector for standby contact input (Multi IO)Connection for external PT100 temperature sensor

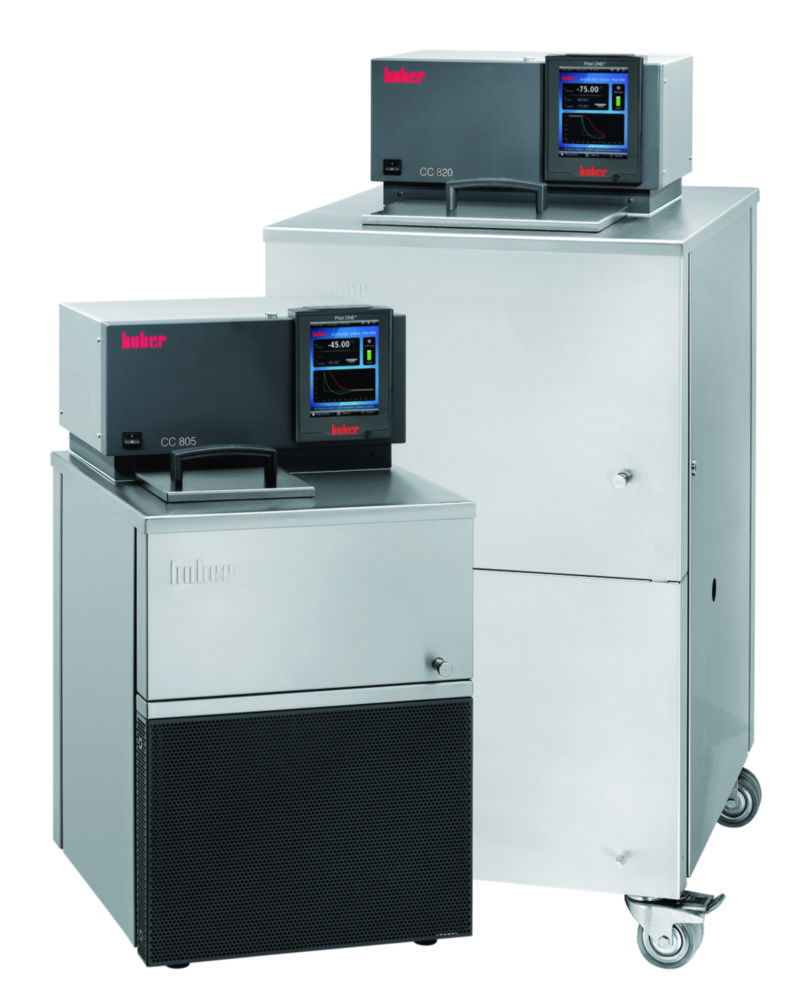

Refrigerated Bath Circulators to -90°C
The CC-805 is a low cost alternative for low temperature applications when low power is required.Option: Natural refrigerant available on requestPump data CC-805 to CC-906w:Max. pressure: Max. suction:25 L/min / 0.7 bar 18.5 L/min / 0.4 barSupply requirement: CC-805 / CC-902:400 V 50 Hz 230 V 50 HzTemp. stability acc. to DIN 12876:0.02 K*with displacement insertFunction version available by E-grade

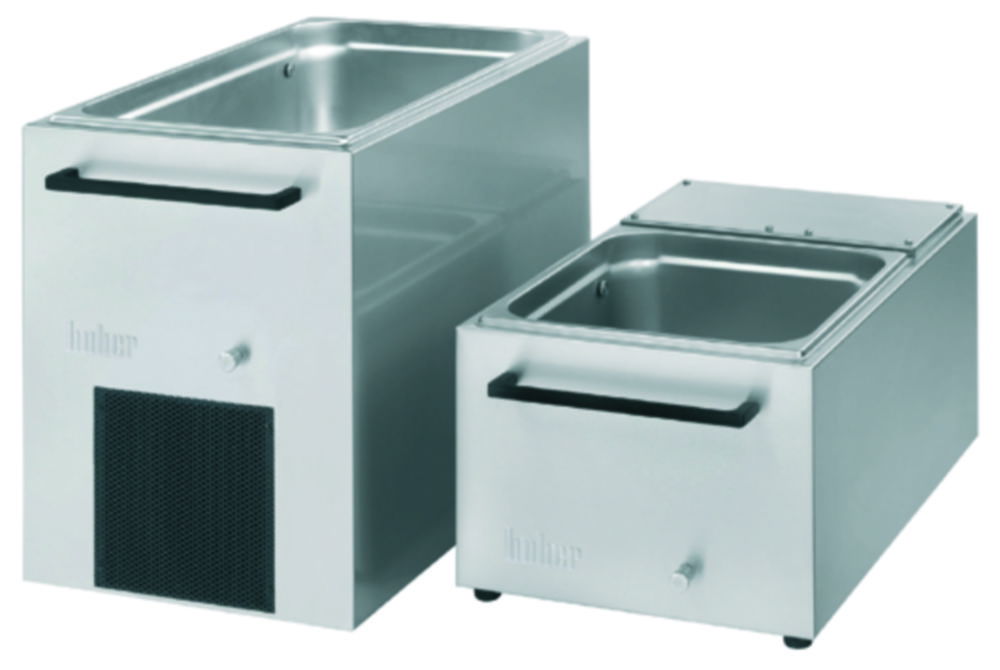

Refrigerated Baths
The refrigerated baths K12 to K25 use natural refrigerants. The immersion circulator controls the temperature. In combination with an immersion circulator, these refrigerated baths can cover the complete temperature range. The refrigeration system offers active cooling, in continuous operation over the complete working range.

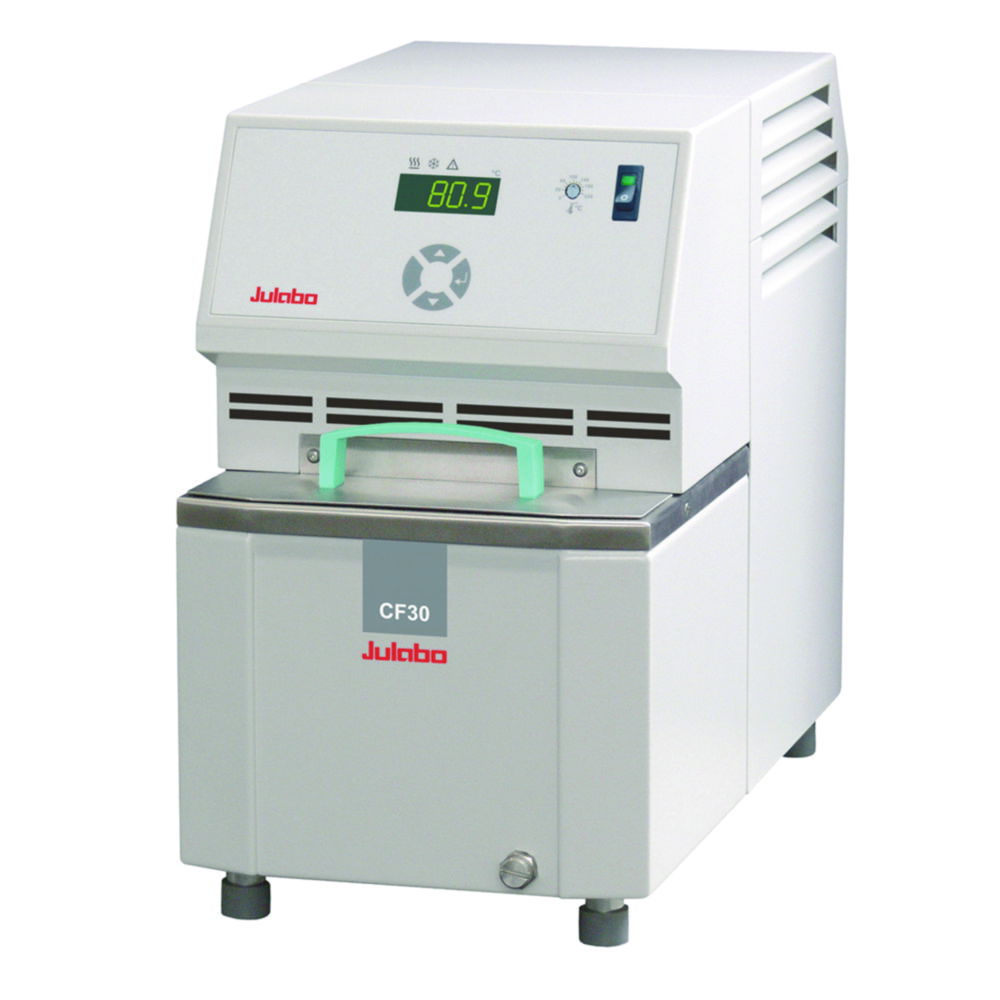

Refrigerated circulator baths series Economy CF
The new CF series offers compact refrigerated/heating circulators. With small overall dimensions the units can even be placed on a very small surface or within a complex installation. All models offer a heating capacity of 2 kW and safety class 3 according to DIN12876-1. The maximum ambient temperature of 40 °C as well as ventilated air cooling allow the units to be positioned very closely together, with other units or directly under a fume hood. Furthermore all the models feature pump connections for external temperature applications and a bath opening for temperature control of small objects directly in the circulator bath. Wetted parts are made of high quality stainless steel or plastic. The instruments incorporate reliable Microprocessor electronics offering high temperature stability as well as warning and safety functions.Ergonomic design and easy operationCompact dimensions require minimal spaceSplash-proof keypadLarge, bright LED temperature displayPrecise PID temperature controlRS232 interface for PC connectionAdjustable high temperature cut-outPump connections for external temperature applicationsBath opening for temperature control of small objects in the bathEarly warning system for low liquid level3-point calibration

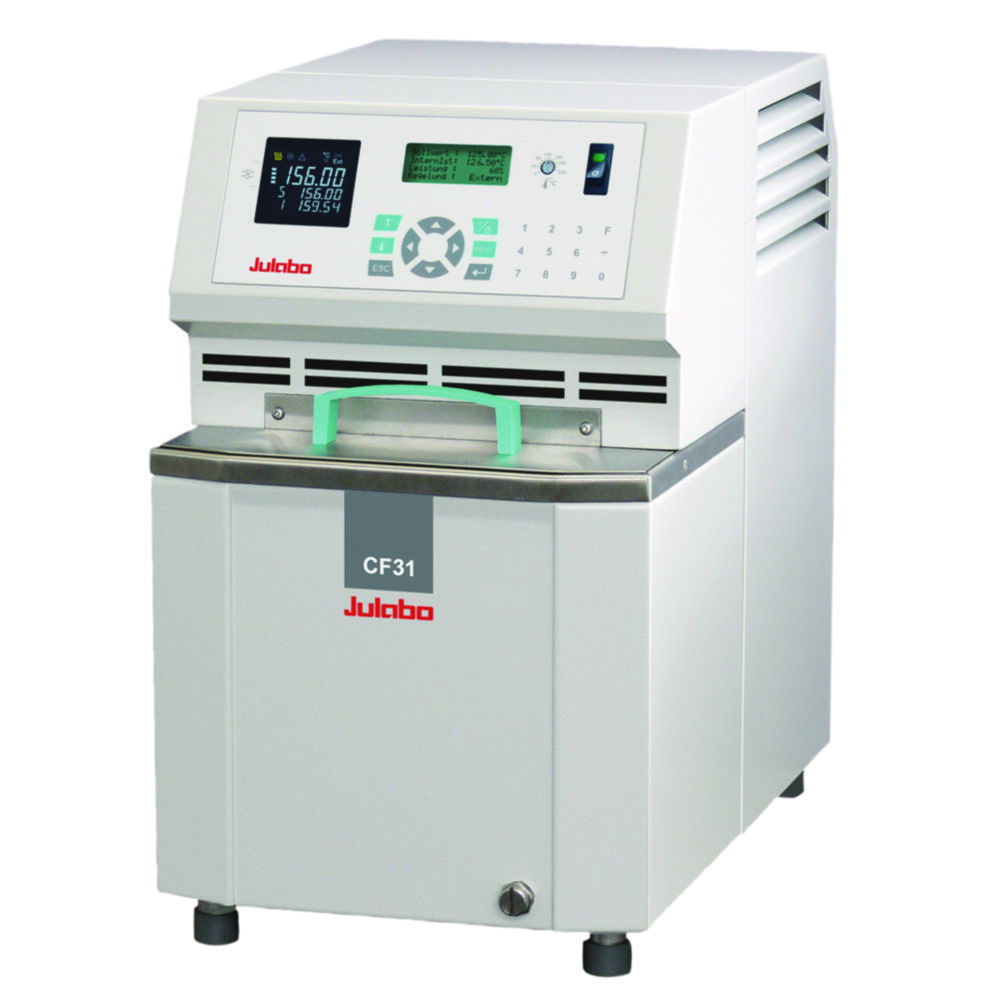

Refrigerated circulator baths series HighTech CF
The new CF series offers compact refrigerated/heating circulators. With small overall dimensions the units can even be placed on a very small surface or within a complex installation. All models offer a heating capacity of 2 kW and safety class 3 according to DIN12876-1. The maximum ambient temperature of 40 °C as well as ventilated air cooling allow the units to be positioned very closely together, with other units or directly under a fume hood. Furthermore all the models feature pump connections for external temperature applications and a bath opening for temperature control of small objects directly in the circulator bath. Wetted parts are made of high quality stainless steel or plastic. The instruments incorporate reliable Microprocessor electronics offering high temperature stability as well as warning and safety functions.Ergonomic design and easy operationCompact dimensions require minimal spaceSplash-proof keypadBright VFD display and interactive LCD dialogue displayHighly precise ICC cascade temperature controlRS232/RS485 interface for PC connectionAdjustable high temperature cut-outPump connections for external temperature applicationsBath opening for temperature control of small objects in the bathElectronically adjustable pump outputExternal Pt100 sensor connectionIntegrated programmer with 6x60 program stepsEarly warning system for low liquid level3-point calibrationTCF Temperature Control Features

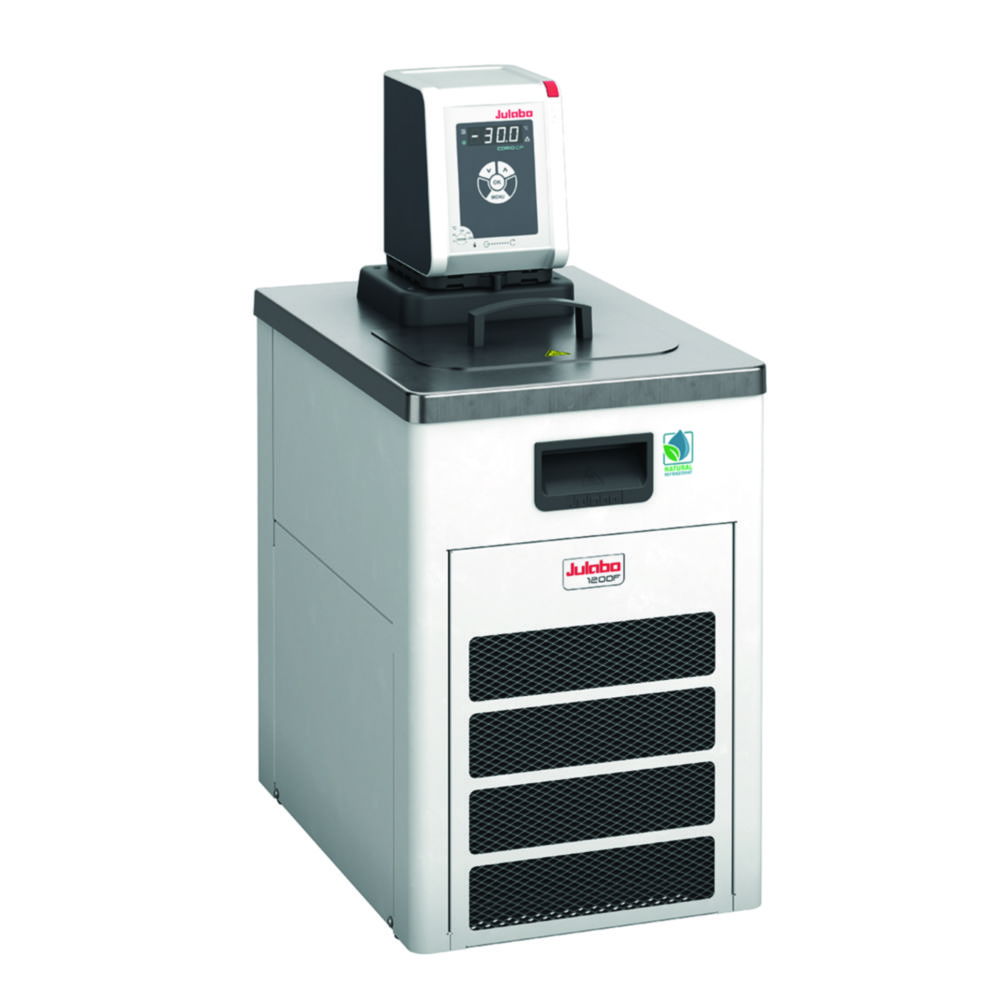

Refrigerated circulator CORIO™ CP-1200F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmWith natural refrigerant R1270
Refrigerated circulator CORIO™ CP-1201F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmWith natural refrigerant R1270

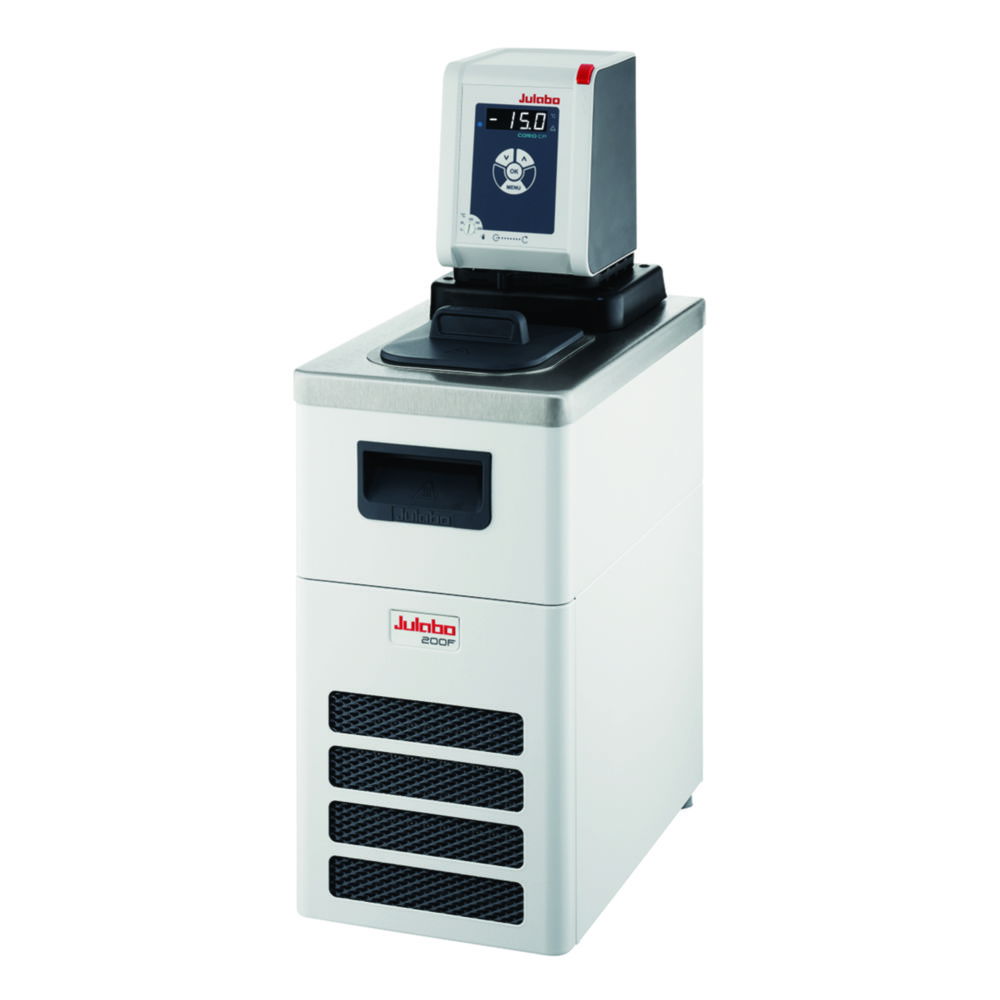

Refrigerated circulator CORIO™ CP-200F
Refrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mmRefrigerated circulators with enhanced, flexible pump performance and a working temperature range up to 200 °C. Temperature control is possible either in the internal bath or in a connected external application.Bright, white, easy-to-read displayEasy pump switching between internal and external circulationExternal pump connections (M16x1)Infinitely adjustable pressure pumpUSB connectionRS232 interfaceTimer adjustable up to 999 minutesSpace-saving cooling coil design yields more usable space in the bath tankStainless steel bath tank including bath lid and drain tapRemovable ventilation gridRefrigeration unit without lateral ventilation openingsUnique early warning system for low liquid levelClass III (FL) acc. to DIN 12876-1Scope of supply: Refrigerated circulator, mains power cable, connection box, bath cover, connecting cable, refrigerator, hose olives 8 and 12 mm
