Cooling circulator Variostat® for a variety of baths
€0.00
Product information "Cooling circulator Variostat® for a variety of baths"
| Cooling capacity at 20 °C: | 0,3 kW |
|---|---|
| Depth: | 465 mm |
| Dimensions (WxDxH): | 183 x 465 x 416 mm |
| Heating capacity: | 1 kW |
| Height: | 416 mm |
| IP code: | IP 20 |
| Manufacturer Article Number: | 2013.0003.01 |
| Max. delivery pressure: | 0.7 bar |
| Max. flow rate: | 25 l/min |
| Max. suction capacity: | 18.5 l/min |
| Max. suction pressure: | 0.4 bar |
| Max. temperature: | 150 °C |
| Max. voltage: | 240 V |
| Min. temperature: | -30 °C |
| Min. voltage: | 220 V |
| Operation: | Touchscreen |
| Power supply: | 220 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Temperature: | -30 ... 150 °C |
| Temperature stability: | ±0,02 K |
| Type: | Variostat® |
| Type of auxiliary energy: | Mains connection |
| Weight: | 24 kg |
| Width: | 183 mm |
Login
Other customers also bought
Combinations of immersion circulators and insulated refrigeration baths are low-cost solutions for direct thermoregulation within the temperature range -20/-30°C to +200°C. The refrigeration baths operate with natural refrigerants. A pump adapter (optional) can be fitted for thermoregulation of externally closed applications. Models with the Pilot ONE controller have a variable speed pressure/suction pump and are therefore suitable for external open thermoregulation applications. The temperature stability is 0.02K for the Compatible Control models and 0.05K for the KISS models.

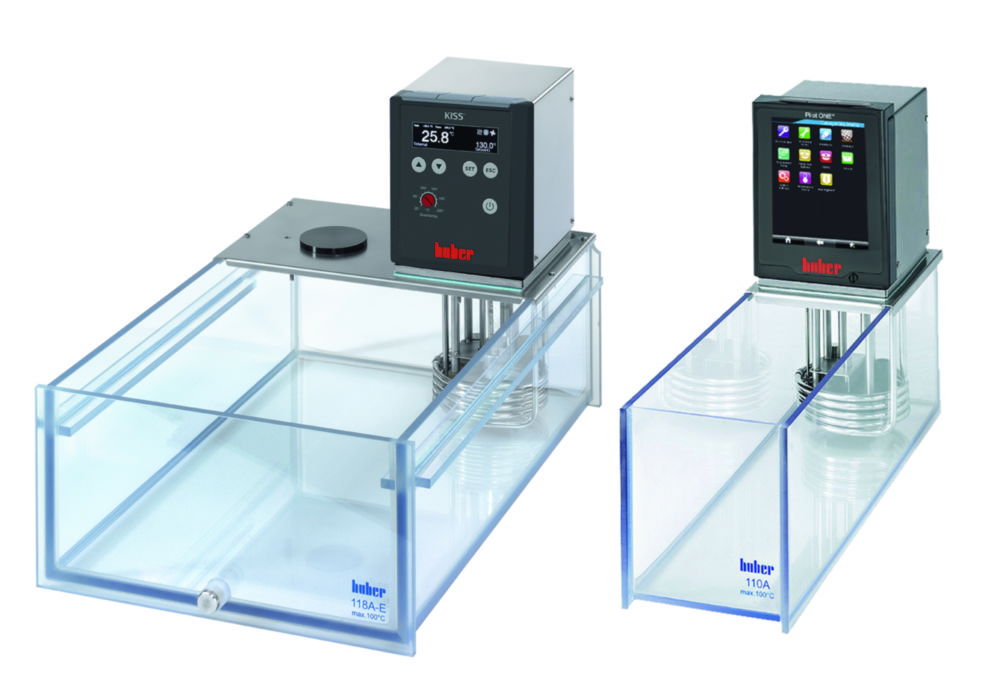

The transparent polycarbonate baths are suitable for use up to 100°C. An immersion thermostat is mounted on the bath bridge for all models. With a pump adapter, this combination can also be used with external, closed applications. Models with the Pilot ONE controller have a variable speed pressure/suction pump and are therefore also suitable for external open applications.Temperature max.:100 °CTemp. Stability at 70 °C to DIN12876KISS E: CC-E:0.05K 0.02KSafety class:FL, IIIBath depth:150mm
