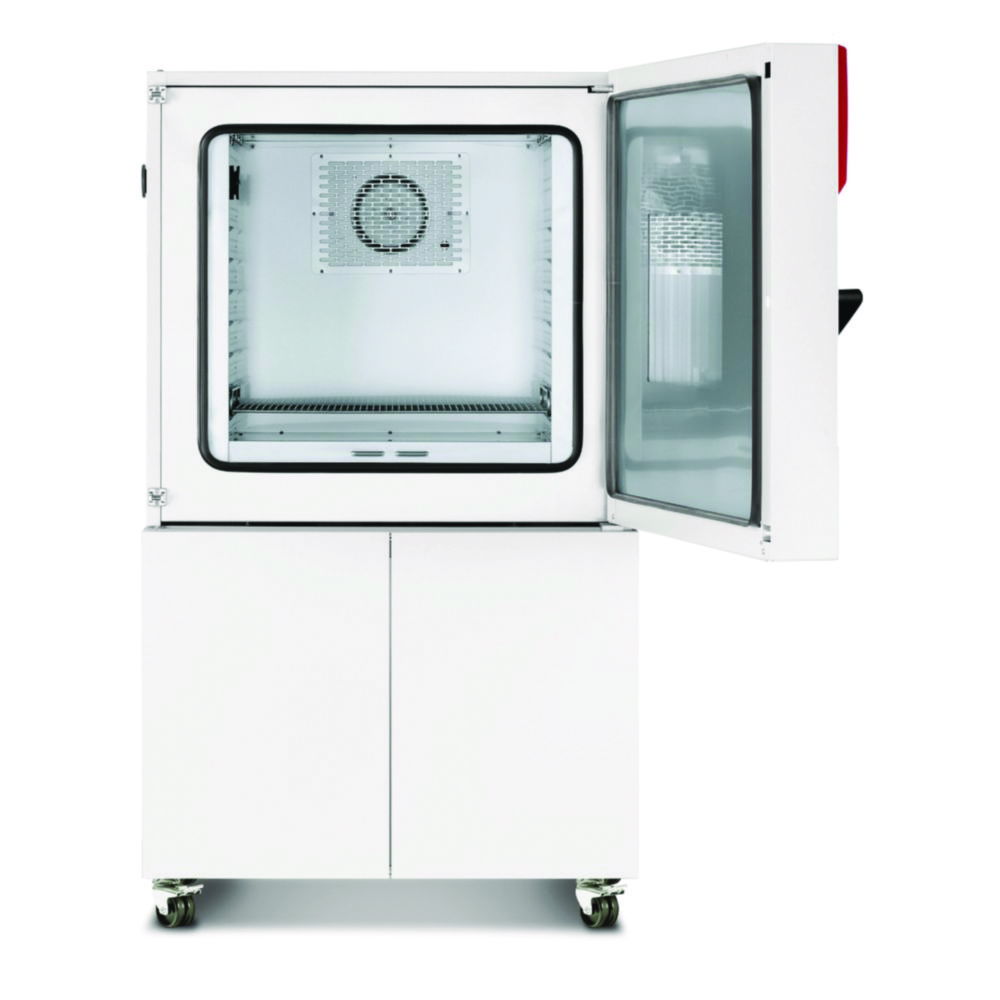

Dynamic climate chambers MKT, with extended low temperature range
BINDER GmbH
€0.00
Content: 1
Product number: 4705678
Product information "Dynamic climate chambers MKT, with extended low temperature range"
Environmental chambers are ideal for material testing under dynamic conditions. The standard rapid alternation speeds of approx. 5 K/min enable standard-compliant testing.
Models with 480 V nominal voltage are equipped with a voltage and frequency converter.
- Homogeneous climate conditions thanks to APT.line™ preheating chamber technology
- Touchscreen controller with time-segment and real-time programming
- Internal data logger, measured values can be read out via USB
- Programmable condensation protection
- Troubleshooting system with visual and acoustic alarms
- Heated viewing window with LED interior lighting
- BINDER Multi Management Software APT-COM™ Basic Edition
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Ethernet interface
- Adjustable ramp function
- Integrated chart recorder
- Door heating
- Inner chamber made of stainless steel
- 1 stainless steel rack
- 4 zero-voltage relay contacts
- CFC-free refrigerant R-452A and R-23
Models with 480 V nominal voltage are equipped with a voltage and frequency converter.
| Depth int.: | 443 mm |
|---|---|
| Ext. depth: | 925 mm |
| Ext. height: | 1935 mm |
| Ext. width: | 1115 mm |
| External dimensions (WxDxH): | 1,115 x 925 x 1,935 mm |
| Height int.: | 700 mm |
| Int. width: | 735 mm |
| Internal dimensions (WxDxH): | 735 x 443 x 700 mm |
| Manufacturer Article Number: | 9020-0364 |
| Material inserts: | Stainless steel |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 6 |
| Max. temperature: | 180 °C |
| Max. voltage: | 480 V |
| Min. temperature: | -70 °C |
| Nominal capacity: | 228 l |
| Plug type: | CEE |
| Power supply: | 480 V, 60 Hz |
| Power supply frequency: | 60 Hz |
| Rated capacity: | 6.5 kW |
| Temperature: | -70 ... 180 °C |
| Temperature stability: | 0,1 ... 0,4 K |
| Type: | MKT 240 |
| Type of auxiliary energy: | Mains connection |
| Weight: | 380 kg |
| With CO₂ control: | No |
