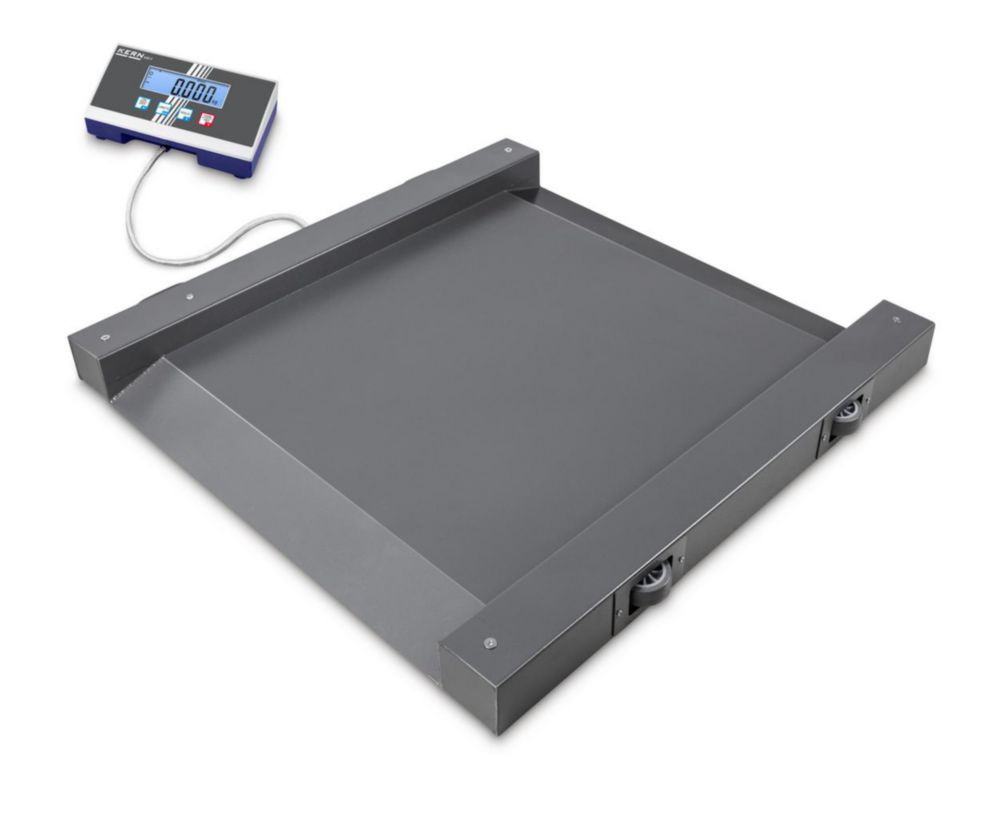

Drive-through scale NIB
Kern & Sohn GmbH
€0.00
Content: 1
Product number: 4682504
Product information "Drive-through scale NIB"
Drive-through scale for rapid weighing of e.g. wire cage trolleys, shelf trolleys, container trolleys, storage trolleys, sack trucks, mobile containers, containers refuse etc.
Scope of supply: Drive-through scale, wall mount for the display device, protective working cover
- Large LCD display
- Weighing bridge made of powder coated steel
- 4 silicon-coated aluminium load cells with protection against dust and water splashes to IP67
- Level indicator to level the balance precisely
- With rollers and a handle
- Dimensions of display device (WxDxH): 235×114×51 mm
Scope of supply: Drive-through scale, wall mount for the display device, protective working cover
| Adjusting program: | External |
|---|---|
| Depth: | 1000 mm |
| Depth weighing plate: | 800 mm |
| Dimensions (WxDxH): | 1,000 x 1,000 x 80 mm |
| Height: | 80 mm |
| Manufacturer Article Number: | NIB 300K-1 |
| Material housing: | Plastic |
| Material weighing plate: | Steel, powder-coated |
| Max. load: | 300 kg |
| Max. voltage: | 240 V·AC |
| Min. voltage: | 100 V |
| Plug type: | EU/CH/UK/US |
| Power supply: | 100 ... 240 V·AC, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0.1 kg |
| Reproducibility: | 0.1 kg |
| Type: | NIB 300K-1 |
| Type of auxiliary energy: | Battery/mains connection |
| UNSPSC: | 41111502 |
| Warranty: | 3 years |
| Weighing plate (WxD): | 800 x 800 mm |
| Weight: | 40 kg |
| Width: | 1000 mm |
| Width weighing plate: | 800 mm |
