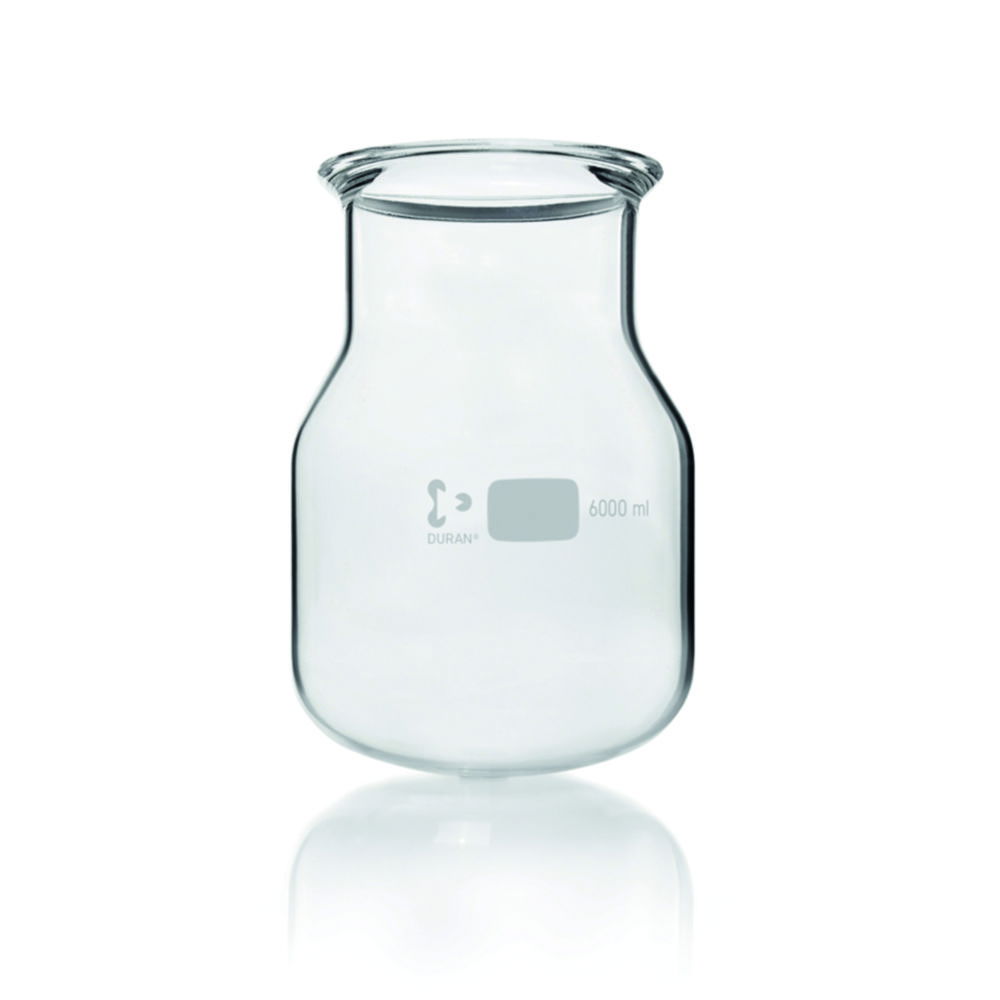

Reaction flasks, flat flange, DURAN®, flask shaped
Flanged neck with groove for vacuum use. Capacities indicated are brim-full volumes. Glass Type I / neutral glass as per USP, EP and JP. Autoclavable.
Reaction vessels, cylindrical, with thermostatic jacket
With graduationLaboratory flange LFGrooveFlat bottomTwo connectors with threads GL 14 or GL 18Made of DURAN® tubingOther sizes on request.

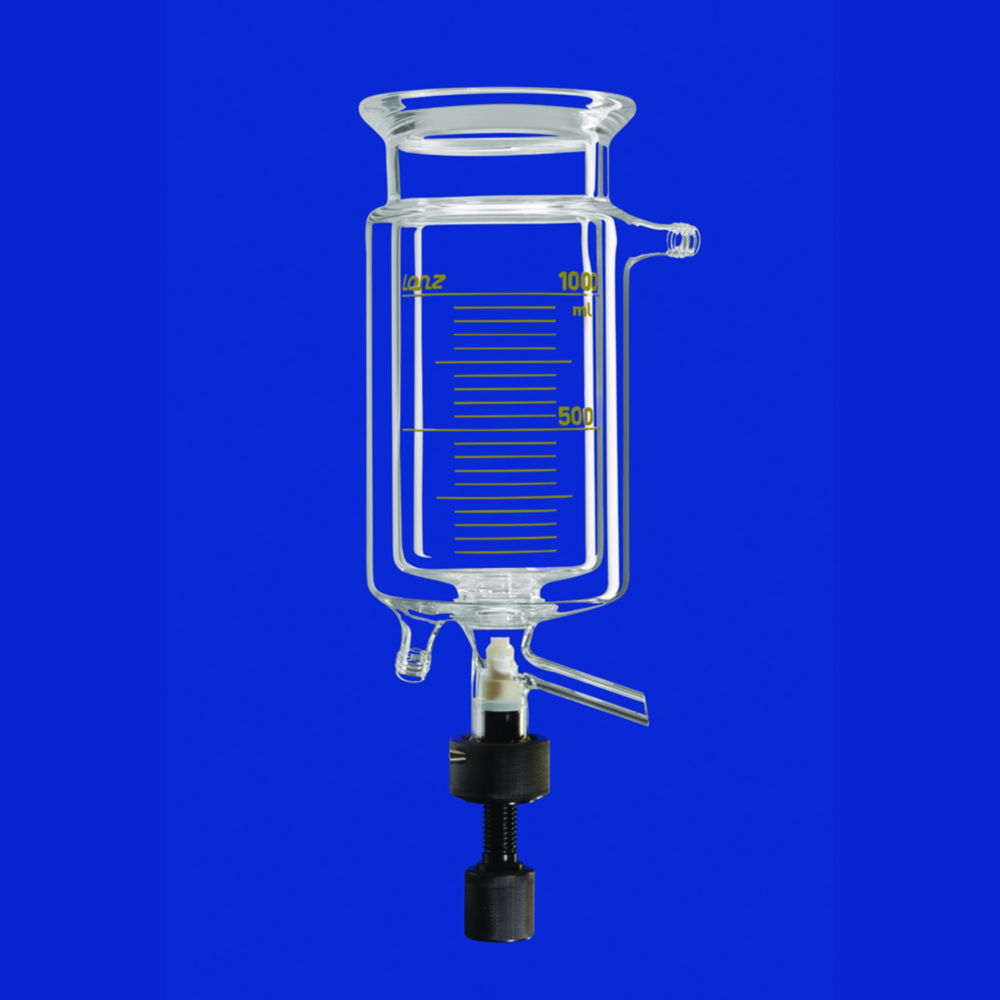

Reaction vessels, cylindrical, with thermostatic jacket and withdrawal valve
With graduationLaboratory flange LFWith grooveTwo connectors with threads GL 14 or GL 18Made of DURAN® tubingOther sizes on request.

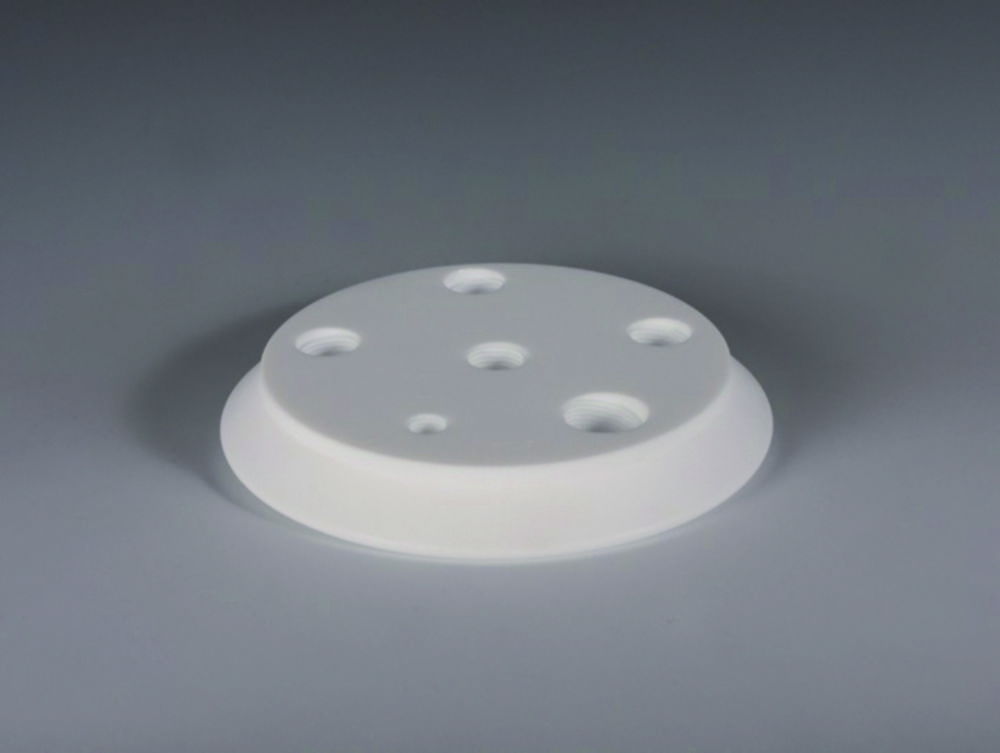

Reactor lids for Glass reactors, PTFE
Suitable for glass reactors with SCHOTT flat flange DN 60, DN 100 and DN 150. All Reactor Lids dispose of a centric screw-in thread NPT for connection of a stirrer bearing. The lateral necks, that even dispose of NPT screw-in threads, are arranged round the centric connector. The angles of lateral necks are made for an insertion of probes and tubes aside the centre in order to avoid collisions with the stirrer shaft. With screw in threads for connection of transition fittings and a center neck NPT 1/2". Temperature resistance from -200°C to +250°C, universal chemical resistance, FDA conformity, further combinations on request.B 150-02: NPT 1/4" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection aside the shaftB 150-04: NPT 1/2" connection aside the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection aside the shaftB 150-12: NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 1/2" connection directly to the shaftB 150-14: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 3/4" connection aside the shaft, NPT 1/4" vertical connectorB 150-16: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 1/4" connection aside the shaft, NPT 1/4" vertical connectorB 150-22: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 1/4" connection aside the shaft, NPT 1/4" vertical connectorB 150-24: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1/2" connection directly to the shaft, NPT 3/4" connection aside the shaft, NPT 1/4" vertical connectorB 150-26: NPT 1/2" connection directly to the shaft, NPT 1/2" connection aside the shaft, NPT 1" connection directly to the shaft, NPT 1/4" connection aside the shaft, NPT 1/4" vertical connector

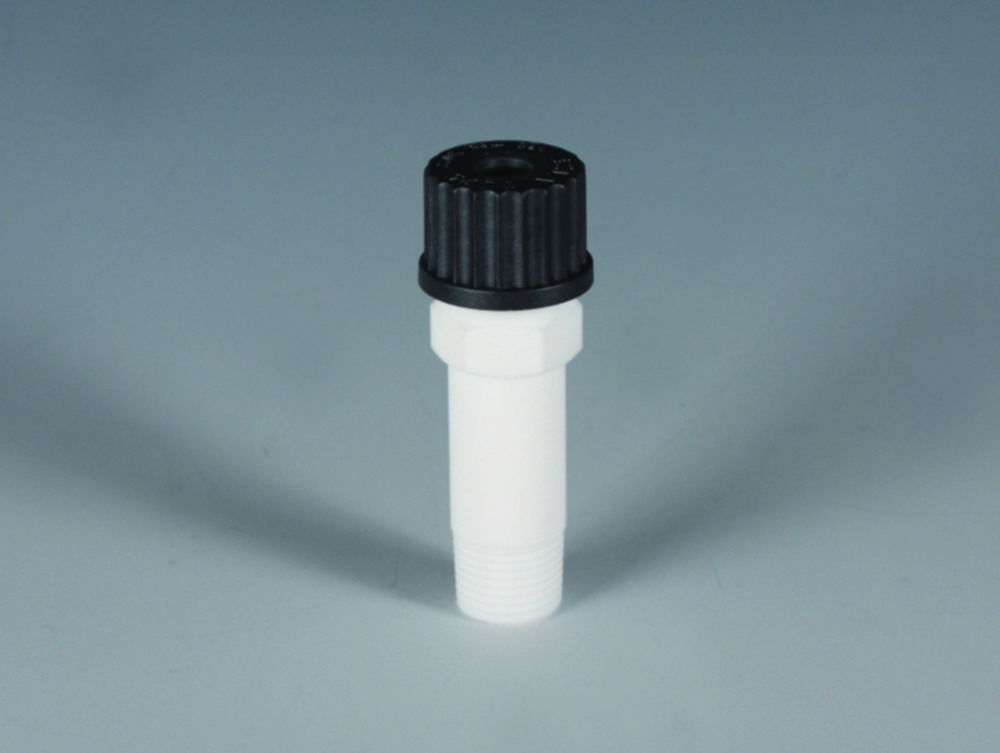

Stirrer bearings, PTFE for Reactor lids
With NPT screw thread. Universal chemical resistance. With special gasket made of PTFE and an FPM o-ring for optimal compression of the GL screw cap made of PPS. The media is only exposed to PTFE. With hexagonal gripping surface in standard wrench size. Temperature resistant from -15 to 200 °C.

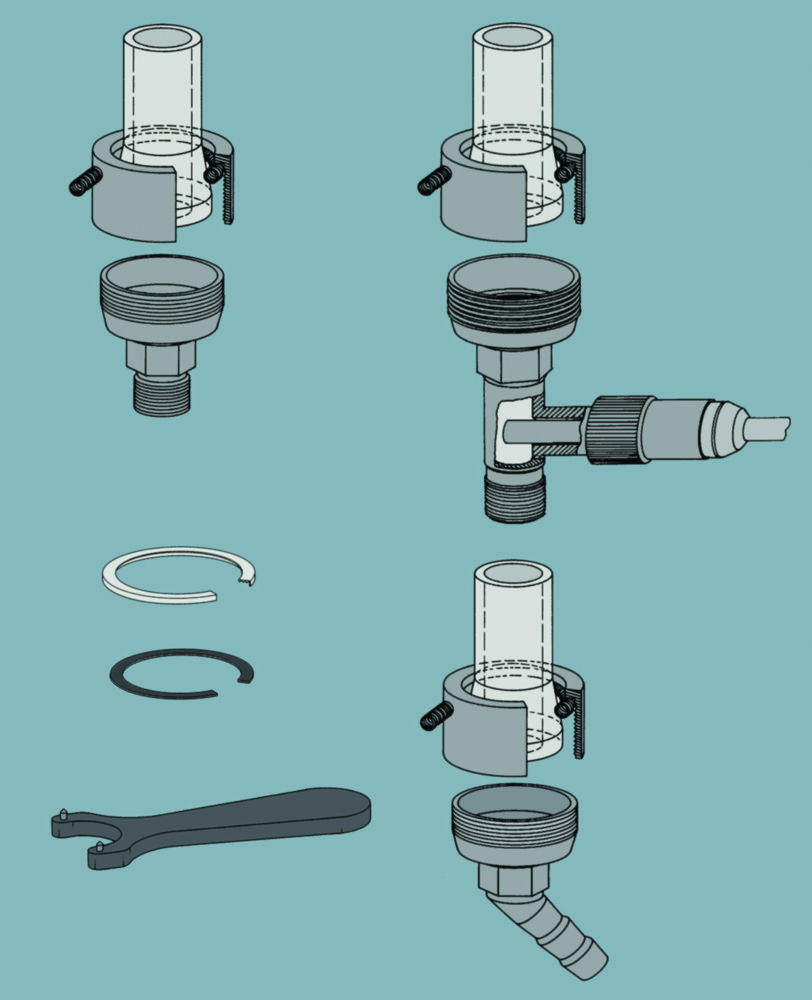

Tubing adapters for heating and cooling connection
For metal or standard tubing connectors with secure, quick attachment / release, using spring insert technology.
Vacuum sublimation apparatus
Enables effective cleaning of chemicals and substances that turn from solids to vapours directly without liquidifying first and solidifying again on cooling. The cleaned sublimate can be fully recovered from the conical cooler without difficulty once the sublimation process is complete.
