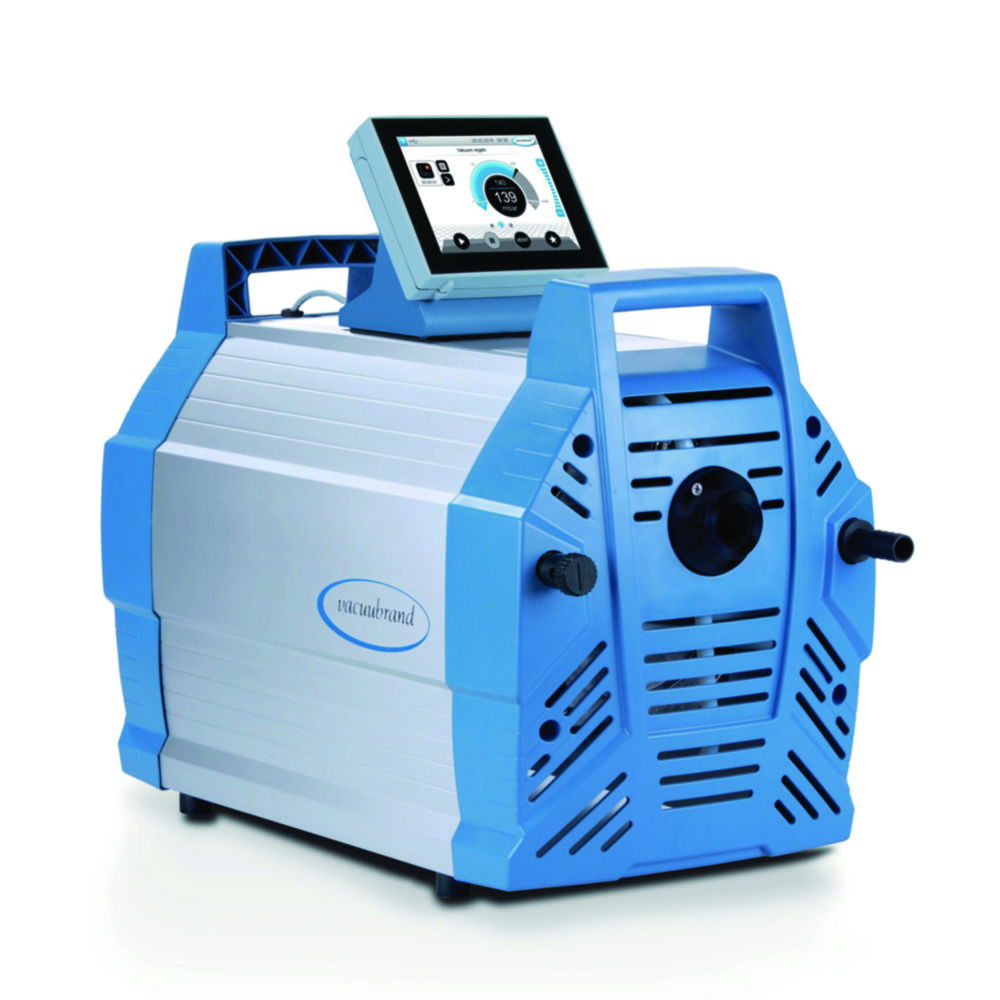

Diaphragm vacuum pumps, chemistry design, ME 16C NT VARIO select
€0.00
Product information "Diaphragm vacuum pumps, chemistry design, ME 16C NT VARIO select"
- Improved performance, increased pumping speed and lower ultimate vacuum extends applications in both the laboratory and in industrial applications
- Long-life diaphragm with PTFE sandwich construction and unstressed diaphragm support
- Easy service/exchange of diaphragm or valves due to novel integrated valve head assembly. Easy dismantling, cleaning and reassembly without requiring readjustment
- Very quiet and ultra low vibration due to compact drive with patented motor control system. Ideal as a built-in component for sensitive equipment in both the laboratory and in industry
- Superior vapour tolerance due to integral tubing connections and gas ballast valve for continuous purge
- Easy to clean due to smooth exterior surfaces
- Improved performance, increased pumping speed and lower ultimate vacuum extends applications in both the laboratory and in industrial applications
- Long-life diaphragm with PTFE sandwich construction and unstressed diaphragm support
- Easy service/exchange of diaphragm or valves due to novel integrated valve head assembly. Easy dismantling, cleaning and reassembly without requiring readjustment
- Very quiet and ultra low vibration due to compact drive with patented motor control system. Ideal as a built-in component for sensitive equipment in both the laboratory and in industry
- Superior vapour tolerance due to integral tubing connections and gas ballast valve for continuous purge
- Easy to clean due to smooth exterior surfaces
| Depth: | 533 mm |
|---|---|
| Dimensions (WxDxH): | 260 x 533 x 450 mm |
| Flow rate: | 19.3 m³/h |
| Height: | 450 mm |
| Manufacturer Article Number: | 25741750 |
| No. of stages: | 1 |
| Plug type: | CEE |
| Type: | ME 16C NT VARIO select |
| UNSPSC: | 40151502 |
| Ultimate vacuum: | 70 mbar |
| Ultimate vacuum with gas ballast: | 100 mbar |
| Width: | 260 mm |
