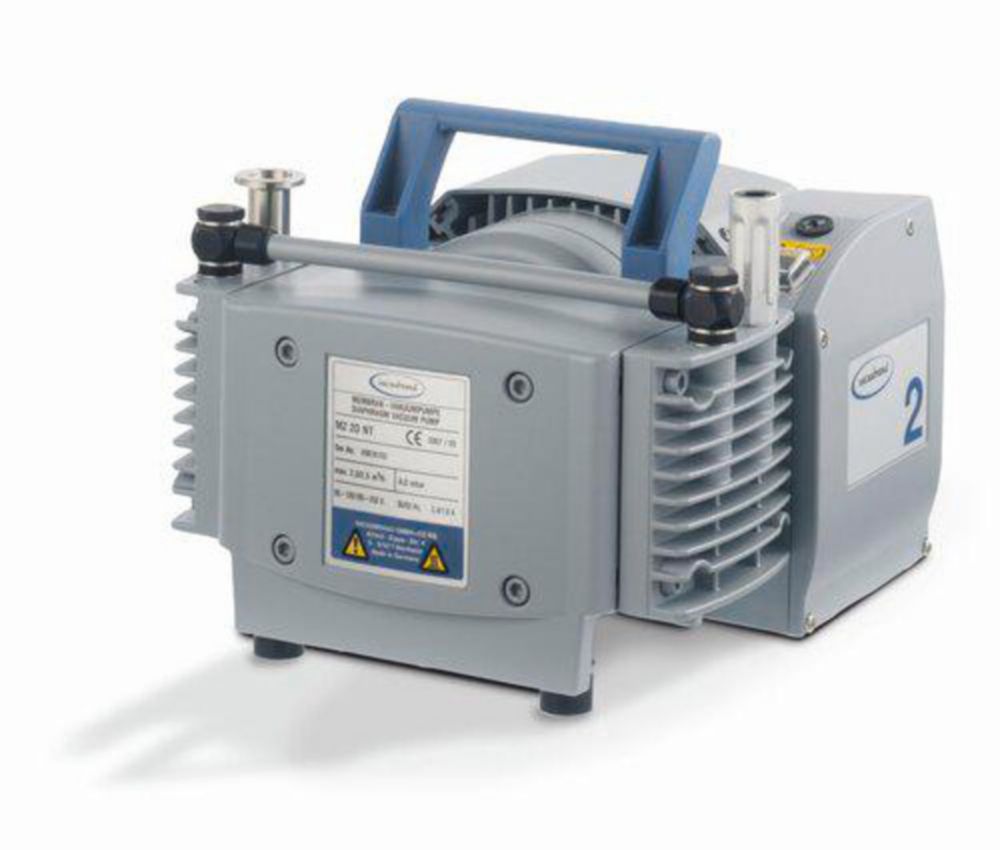

Diaphragm pumps, Aluminium, MZ 2D NT
€0.00
Product information "Diaphragm pumps, Aluminium, MZ 2D NT"
- Improved performance, increased pumping speed and better ultimate vacuum Extend applications with non-aggressive gases whether used in the laboratory or for industrial processes
- Very low leak rate due to enhanced leak-tight tubing connections, resulting in consistent performance characteristics - even after many years of operation. Ideal for analytical applications
- Long diaphragm and valve lifetimes: made of highly flexible FPM, with fabric-reinforced double diaphragms for improved long term stability
- Very quiet and ultra low vibration due to compact drive with patented motor drive system. Ideal as a built-in component for sensitive analytical equipment
- Easy to clean due to smooth surfaces. A robust solution for numerous applications in industrial environments
Country-specific power cord versions available on request.
- Improved performance, increased pumping speed and better ultimate vacuum Extend applications with non-aggressive gases whether used in the laboratory or for industrial processes
- Very low leak rate due to enhanced leak-tight tubing connections, resulting in consistent performance characteristics - even after many years of operation. Ideal for analytical applications
- Long diaphragm and valve lifetimes: made of highly flexible FPM, with fabric-reinforced double diaphragms for improved long term stability
- Very quiet and ultra low vibration due to compact drive with patented motor drive system. Ideal as a built-in component for sensitive analytical equipment
- Easy to clean due to smooth surfaces. A robust solution for numerous applications in industrial environments
Country-specific power cord versions available on request.
| Connection pressure side: | G1/4" |
|---|---|
| Connection suction side: | KF DN 16 |
| Depth: | 246 mm |
| Dimensions (WxDxH): | 242 x 246 x 198 mm |
| Flow rate: | 2.3 m³/h |
| Height: | 198 mm |
| Manufacturer Article Number: | 20732202 |
| No. of stages: | 2 |
| Plug type: | UK |
| Type: | MZ 2D NT |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 40151502 |
| Ultimate vacuum: | 4 mbar |
| Width: | 242 mm |
