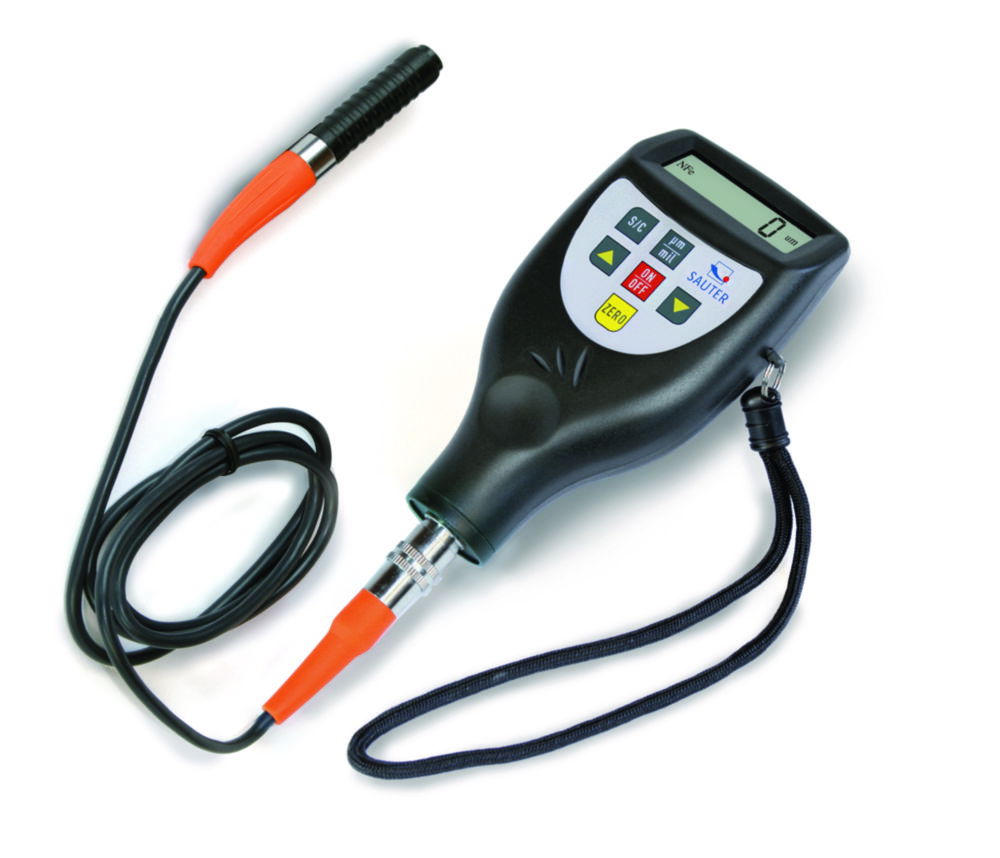

Coating thickness gauge, digital, TE-FN
Kern & Sohn GmbH
€0.00
Content: 1
Product number: 6270969
Product information "Coating thickness gauge, digital, TE-FN"
For non-magnetic coatings on iron and steel and coatings on non-magnetic metals. The Offset-Accur function allows you to adjust the instrument precisely on the locally measured range by a two-point calibration. This results in a higher accuracy of approx. 1 % of the measured value.
Scope of supply:
Coating thickness gauge, external sensor, base plate, calibration foils, carrying case
- Selectable measuring units: µm, ml
- Auto-Power-Off
- Battery operation
- Data interface RS-232
Scope of supply:
Coating thickness gauge, external sensor, base plate, calibration foils, carrying case
| Battery/rechargeable battery: | 4 x 1.5 V, AAA |
|---|---|
| Depth: | 65 mm |
| Designation ANSI: | AAA |
| Dimensions (WxDxH): | 131 x 65 x 28 mm |
| Height: | 28 mm |
| Manufacturer Article Number: | TE 1250-0.1FN |
| Max. measured value: | 1250 µm |
| Max. voltage battery/rechargeable battery: | 1.5 V |
| Measured range: | 100 ... 1,250 µm |
| Min. measured value: | 100 µm |
| No. of batteries/rechargeable batteries: | 4 |
| Tolerance: | 3 % |
| Type of auxiliary energy: | Battery |
| Weight: | 100 g |
| Width: | 131 mm |
