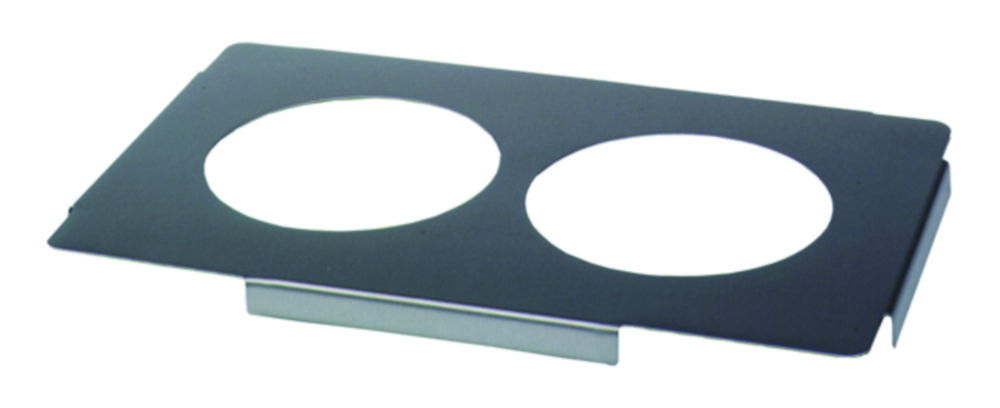

Positioning lids for Sonorex ultrasonic baths
Stainless steel.For supporting inset beakers.

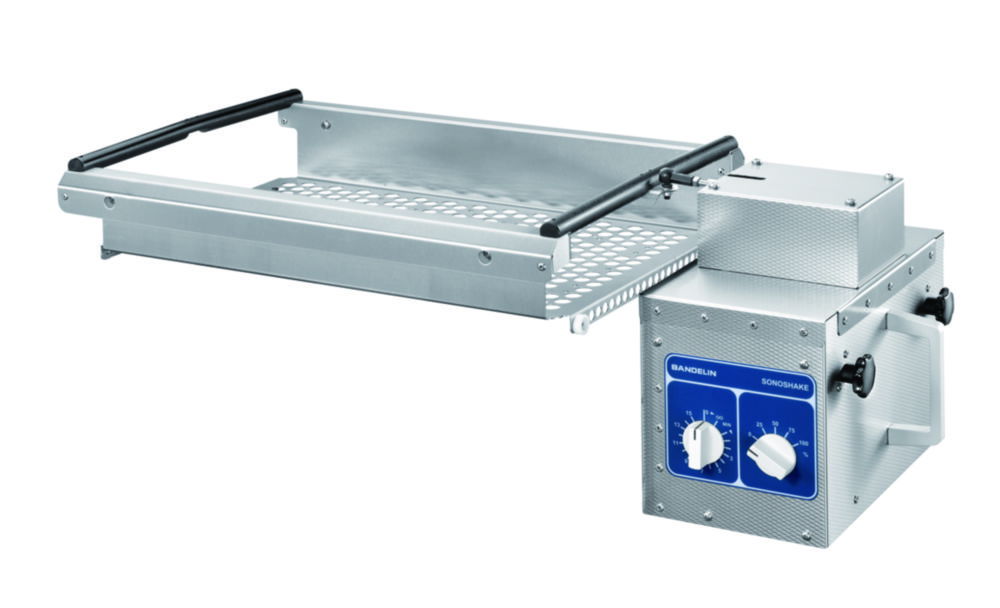

Shaking Device SA 1028 for Ultrasonic Bath SONOSHAKE
Analogue setting of time and shaking frequencyReciprocating motion: settings in 4 steps possible of up to 200/minTimer: 1 to 15 min, or continuousConstant amplitude of 20mm independent of loadingRack easy to remove - easy mounting of the laboratory clamps EK 10-250 (separately to order)Footprint approx. 410mm x 280mm (L x W)Holds 36 x 10ml, 36 x 25ml, 18 × 50ml, 12 x 100ml or 10 x 250ml flasksAn existing SONOREX DIGITEC DT1028 F ultrasonic bath can easily be retrofitted with the shaker attachment SA 1028.

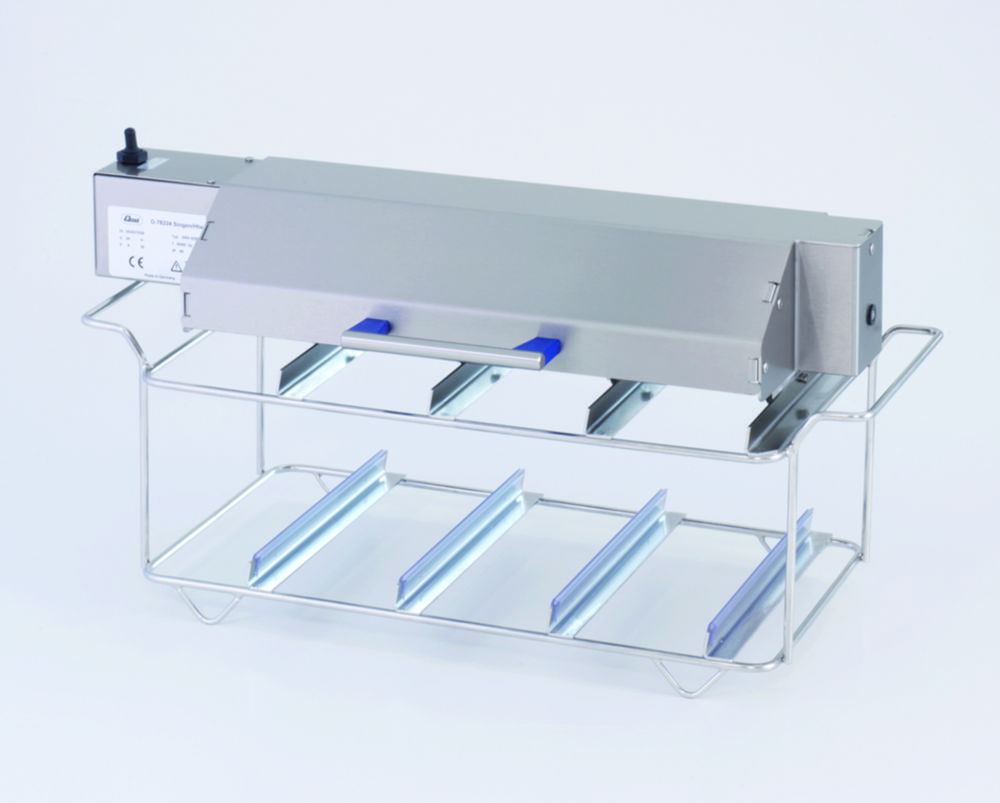

Sieve cleaning module SRH 4/200
Sieve cleaning module made of stainless steel with integrated rotary unit for cleaning up to 4 test sieves (Ø up to 200/203 mm) in an ultrasonic bath. The inclined position of the test sieves in the SRH 4/200 ensures a better cleaning and rinsing effect. Thus, the test sieves are cleaned gently and without changing the mesh size or fabric tension. The dimensional accuracy and calibration of the test sieves is maintained 100 %.For use with: Elmasonic Easy 300, Elmasonic Select 300/450/900, Elmasonic S 300/500/900, Elmasonic P 300, Elmasonic Xtra 300

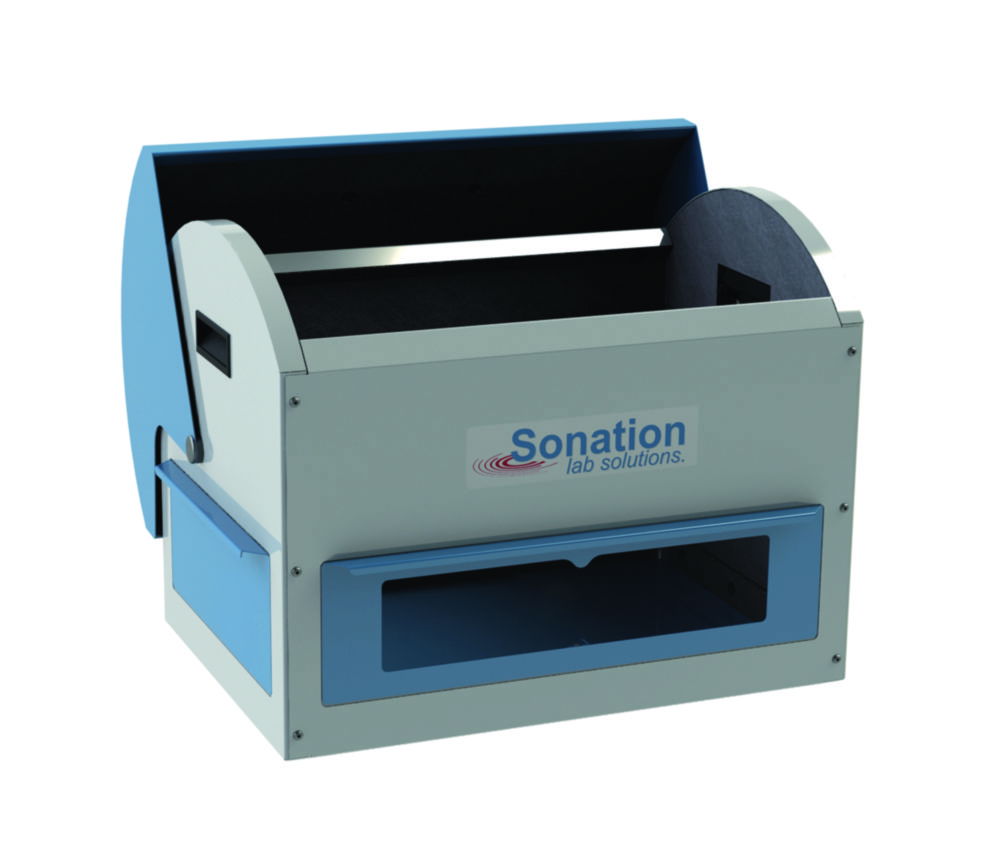

Sound proof boxes USBB series
The USBB series has been developed especially for the noise insulation of ultrasonic baths in the laboratory.Advantages:High noise reduction up to 30dB(A). That means a drop in noise of 90 to 95%Available in four different sizes for mostly all ultrasonic baths, compatibility list for Bandelin Ultrasonic baths on requestThe cover can be completely opened, so the removal of the basket is very easy to handleSmooth and easy handling of the cover, no additional space needed when opening, so the box can be placed and operated under extractor hoodsControl panel stays visible. Thanks to the transparent front, the progress of the washing program can be observed anytimeEquipped with fast access openings on the front and both sides to operate the ultrasonic bath or to drain the cleaning agentIntegrated fan to remove vaporsRecessed grips on the sides for easy transportationPowder coated, robust and easy cleanable surface
Suspension baskets with subdivisions for Sonorex ultrasonic baths
Stainless steel.Optimal ultrasonic wave transmission. Items to be cleaned should not be placed on the bottom of the tank.

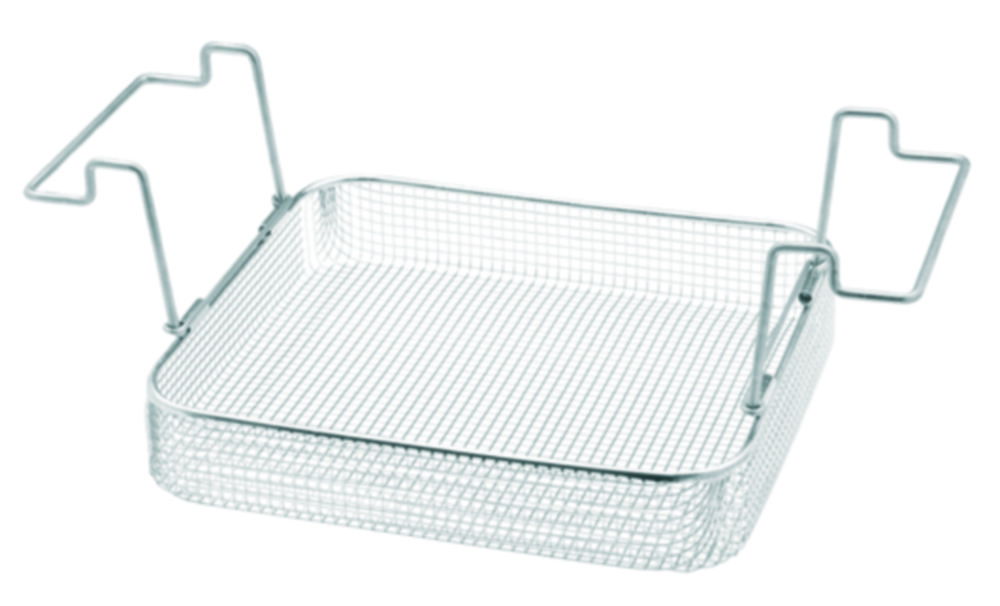

Suspension baskets, rectangular for Sonorex ultrasonic baths
Stainless steel.Optimal ultrasonic wave transmission. Items to be cleaned should not be placed on the bottom of the tank.

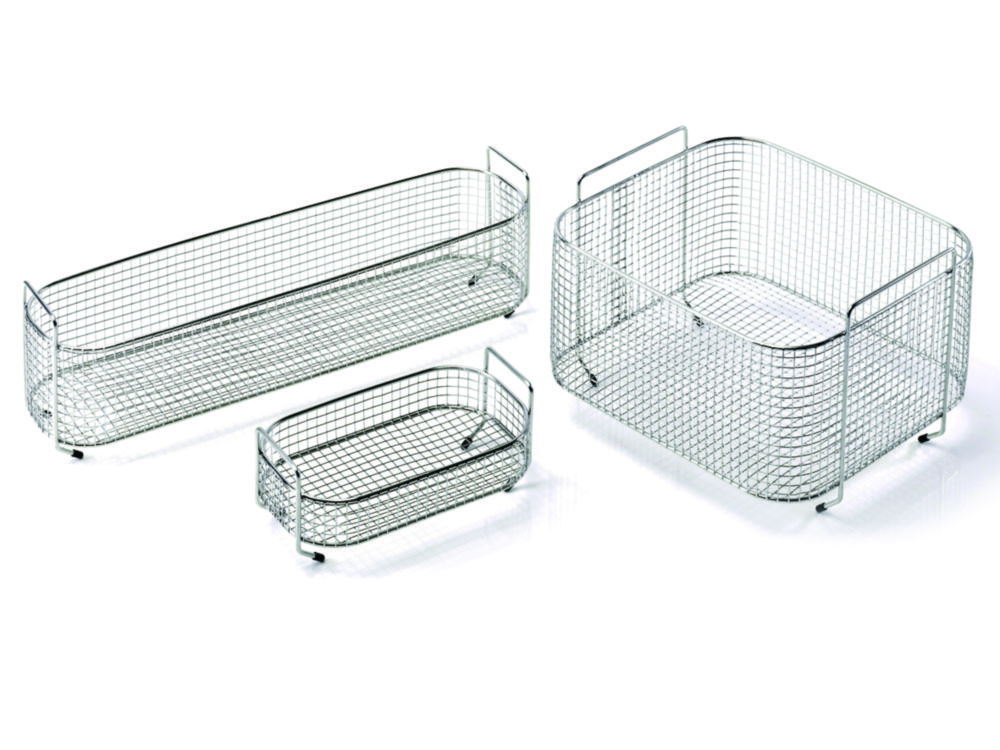

Suspension baskets, round for Sonorex ultrasonic baths
Stainless steel, adjustable.Optimal ultrasonic wave transmission. Items to be cleaned should not be placed on the bottom of the tank.
Ultrasonic bath 200
Branson Model B-200 tabletop ultrasonic cleaner has the ability to handle a wide variety of applications. This cleaner uses ultrasonic energy (40 kHz) in the form of sound waves to create millions of tiny microscopic vacuum cavities in the solution. As these cavities collapse, they release high frequency energy, loosening dirt on all surfaces that the solution touches. This activity, called cavitation, occurs thousands of times per second to gently yet thoroughly scrub contamination off the article being cleaned. Typical applications include laboratory glassware, instrument parts, small geological samples, metal and plastic machined parts, small electrical/electronic components, recorder and drafting pens, optical components and jewellery. With automatic timer, complete with lid and basket.

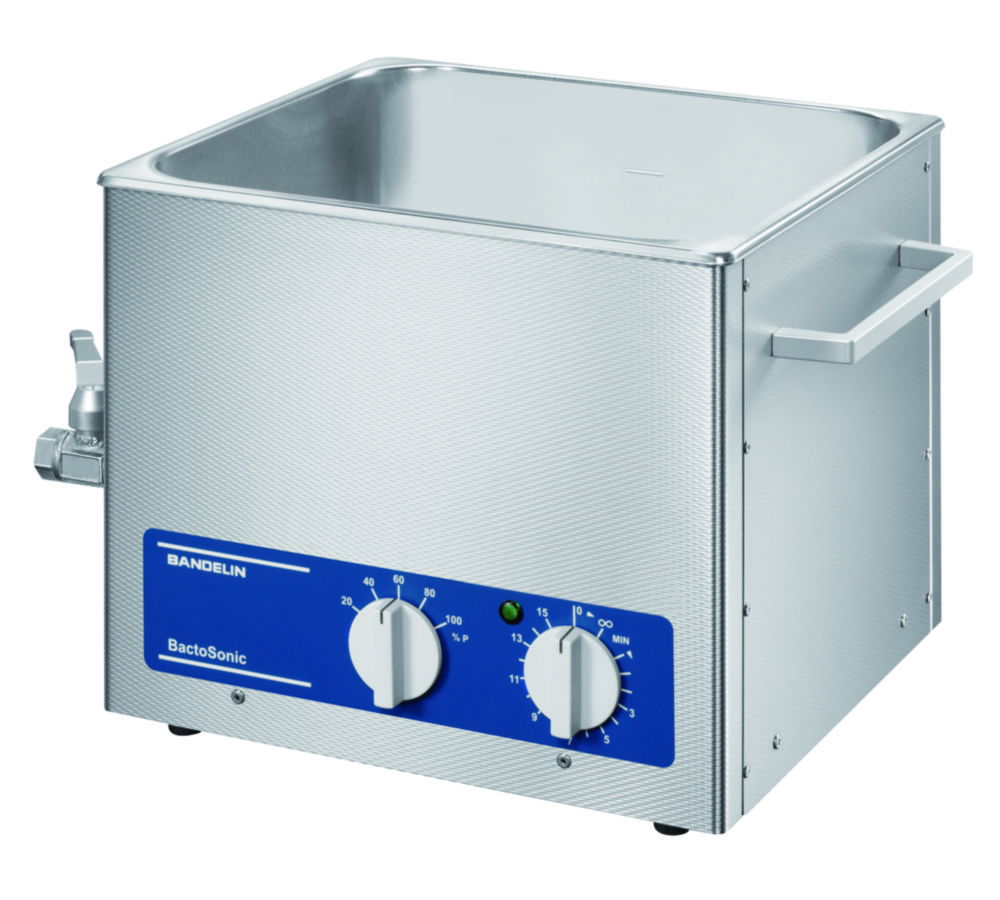

Ultrasonic bath BactoSonic® 14.2
Ultrasonic special bath for a gentle removal of biofilms.Scope of supply: Ultrasonic bath
Ultrasonic bath BactoSonic® 14.2 Set

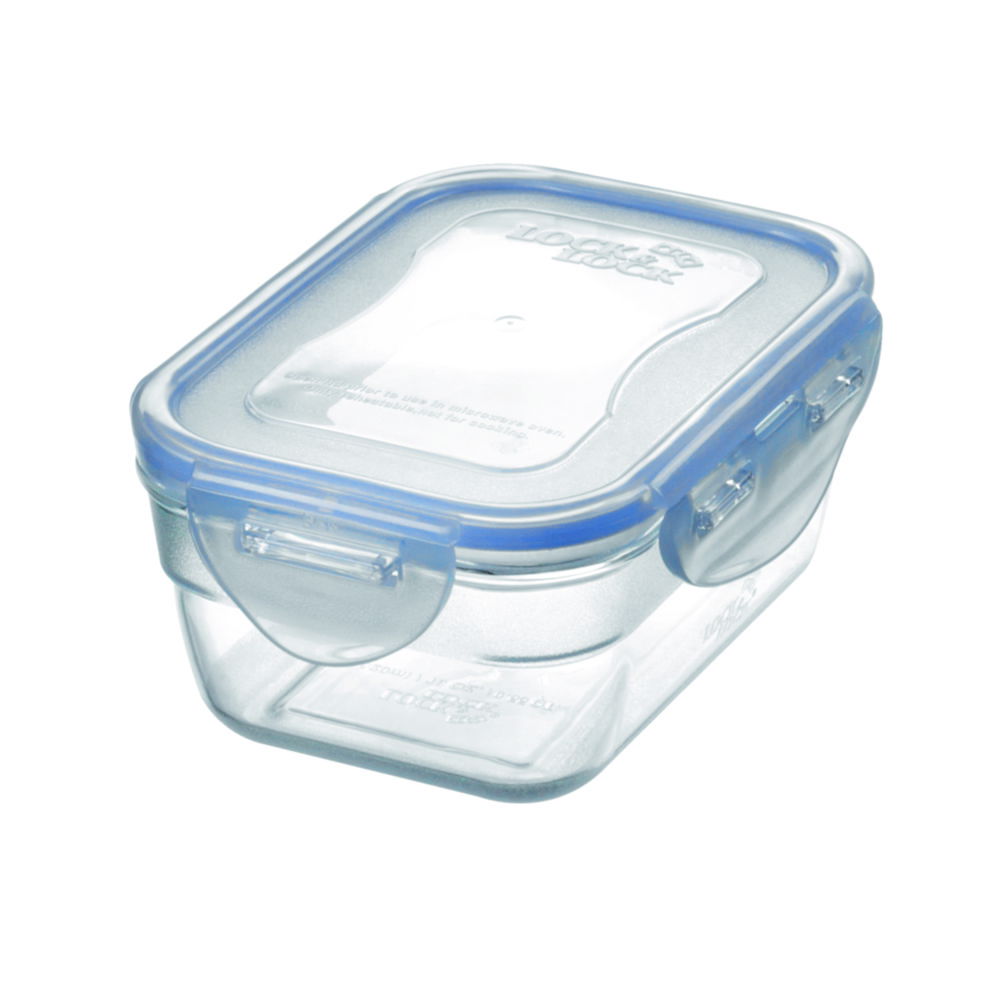

Ultrasonic special bath for a gentle removal of biofilms.Scope of supply: Ultrasonic bath, scientifically proven description of the procedure, transport containers PP: 2 x IB 5 (0.52 l), 2 x IB 6 (0.6 l), 1 x IB 10 (1.0 l), 1 x IB 18 (1.8 l), 1 x IB 20 (2.0 l), container carriers for transport containers PC: 2 x BT 5 for IB 5, 2 x BT 6 for IB 6, 1 x BT 10 for IB 10, 1 x BT 18 for IB 18, utensil holder for transport containers GH 14 (stainless steel, for 3 x IB 20), frame for foil test FT 14, 250 ml contact liquid TICKOPUR R 33 (concentrate)
Ultrasonic Bath Bransonic® M 1800
The mechanical Ultrasonic Bath is designed for performance, control, durability and reliability for a variety of applications. It can be used for cell separation, sample preparation and degassing of liquids.Chemical-resistant plastic bodyWith 60-minute mechanical timer and continuous operationSweep frequency eliminates standing waves and creates consistent cavitation throughout the tank40 kHz rugged industrial transducersControls are located in an easily accessible control tower panel to avoid damage from cleaning solutionsConvenient built-in pour drainConstant activity/power tracking automatically maintains the ultrasonic power by adjusting for changes in liquid level and temperature caused by a light or heavy loadScope of delivery: Ultrasonic Bath incl. plastic lid

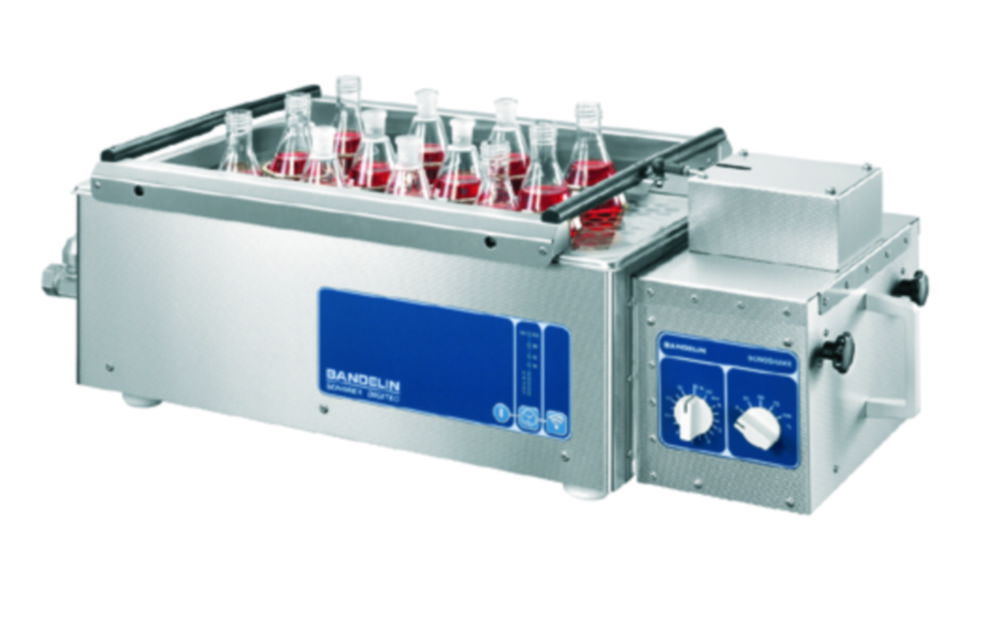

Ultrasonic Bath with Shaking Device SONOSHAKE
Consisting of:Ultrasonic bath Sonorex Digitec DT 1028 FEspecially for sonification of samples in laboratory flasks and for rapid degassing (DEGAS)Low-profile, ultrasonic bath with stainless steel tank, inner dimensions 500mm x 300mm x 65mm (L x W x D)Housing made of stainless steel, protected against spray, 535mm x 325mm x 205mm (L x W x H)Outlet: G½ ball valveTimer: 1, 2, 3, 4, 5, 10, 15, 30 min, or continuousUltrasonic peak power 1280WUltrasonic nominal power 320WWorking frequency 35kHz, SweepTec®Current consumption 1.4AShaking device SA 1028Analogue setting of time (1 to 15 min, or continuous) and shaking frequencyReciprocating motion: settings in 4 steps possible of up to 200/minConstant amplitude of 20mm independent of loadingRack easy to remove - easy mounting of the laboratory clamps EK 10-250 (separately to order)Footprint approx. 410mm x 280mm (L x W)Holds 36 x 10ml, 36 x 25ml, 18 × 50ml, 12 x 100ml or 10 x 250ml flasksBench space required for Sonoshake approx. 850mm x 360mm (L x W)An existing SONOREX DIGITEC DT 1028 F ultrasonic bath can easily be retrofitted with the shaker attachment SA 1028.

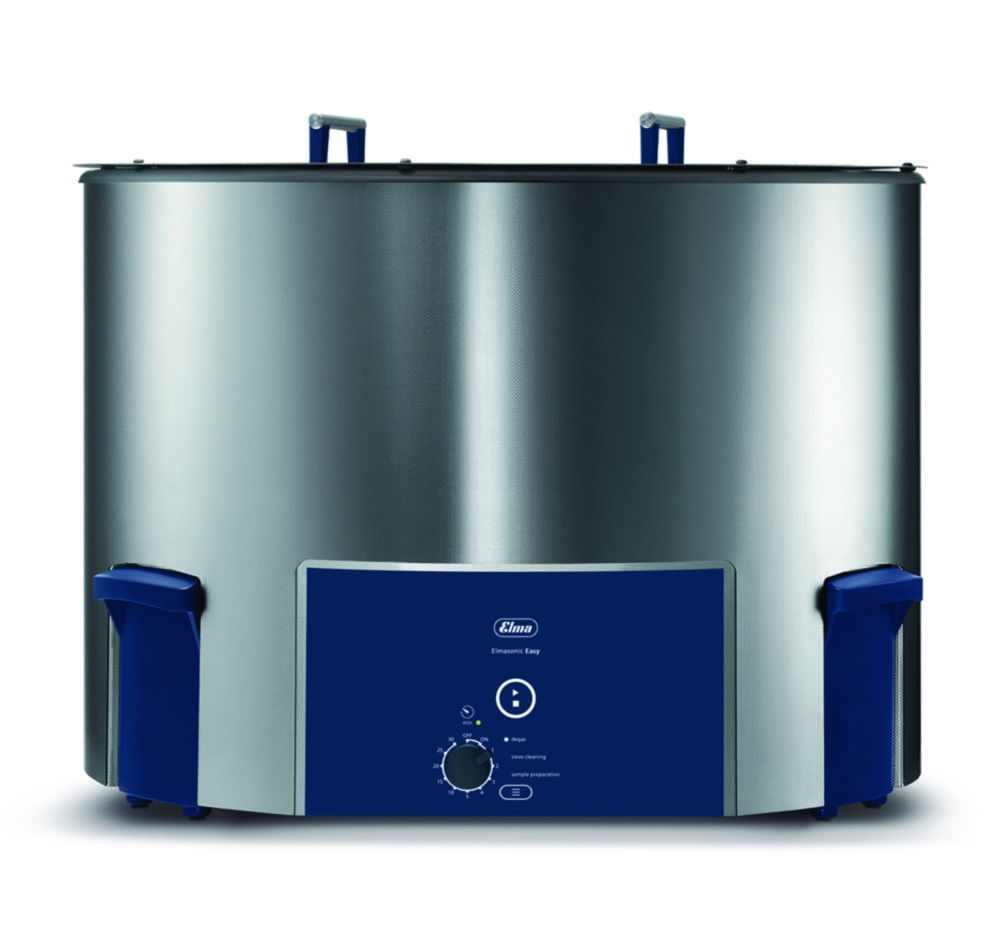

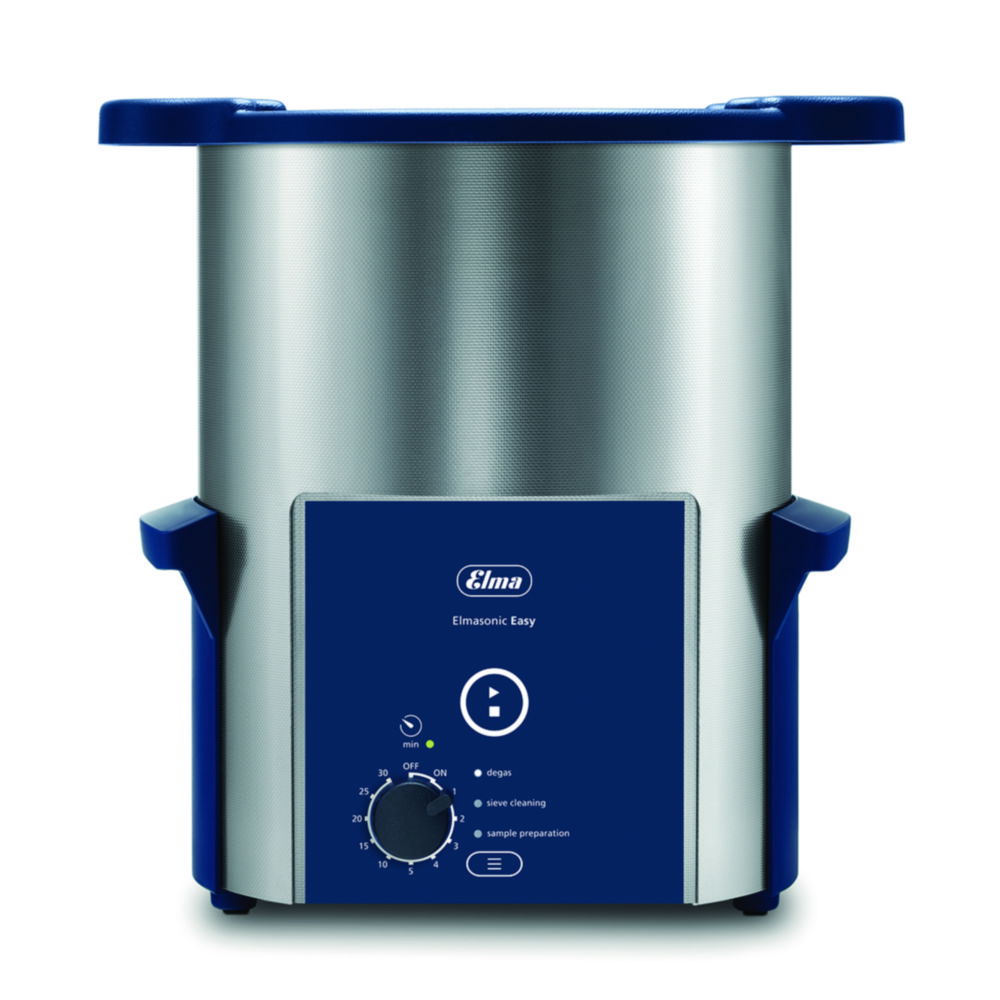

Ultrasonic baths Elmasonic Easy 350 R, without heating, with stopcock
Powerful and high-quality circular devices, especially suitable for use in sample preparation. The 4 ultrasonic modes cover general cleaning tasks, cleaning of test sieves, homogeneous and strong cleaning in tasks such as mixing, dissolving and dispersing, as well as degassing of liquids.Splash-proof housing and cleaning tank, made of stainless steelElectronic selector switch on wipeable membrane keypad.LED display of all operating statesTimer from 1 to 30 min or continuous operationAutomatic safety switch-off with wake-up functionScope of supply: Device, lidPowerful and high-quality circular devices, especially suitable for use in sample preparation. The 4 ultrasonic modes cover general cleaning tasks, cleaning of test sieves, homogeneous and strong cleaning in tasks such as mixing, dissolving and dispersing, as well as degassing of liquids.Splash-proof housing and cleaning tank, made of stainless steelElectronic selector switch on wipeable membrane keypad.LED display of all operating statesTimer from 1 to 30 min or continuous operationAutomatic safety switch-off with wake-up functionScope of supply: Device, lid
Ultrasonic baths Elmasonic Easy 50 R, without heating, without stopcock
Powerful and high-quality circular devices, especially suitable for use in sample preparation. The 4 ultrasonic modes cover general cleaning tasks, cleaning of test sieves, homogeneous and strong cleaning in tasks such as mixing, dissolving and dispersing, as well as degassing of liquids.Splash-proof housing and cleaning tank, made of stainless steelElectronic selector switch on wipeable membrane keypad.LED display of all operating statesTimer from 1 to 30 min or continuous operationAutomatic safety switch-off with wake-up functionScope of supply: Device, lidPowerful and high-quality circular devices, especially suitable for use in sample preparation. The 4 ultrasonic modes cover general cleaning tasks, cleaning of test sieves, homogeneous and strong cleaning in tasks such as mixing, dissolving and dispersing, as well as degassing of liquids.Splash-proof housing and cleaning tank, made of stainless steelElectronic selector switch on wipeable membrane keypad.LED display of all operating statesTimer from 1 to 30 min or continuous operationAutomatic safety switch-off with wake-up functionScope of supply: Device, lid

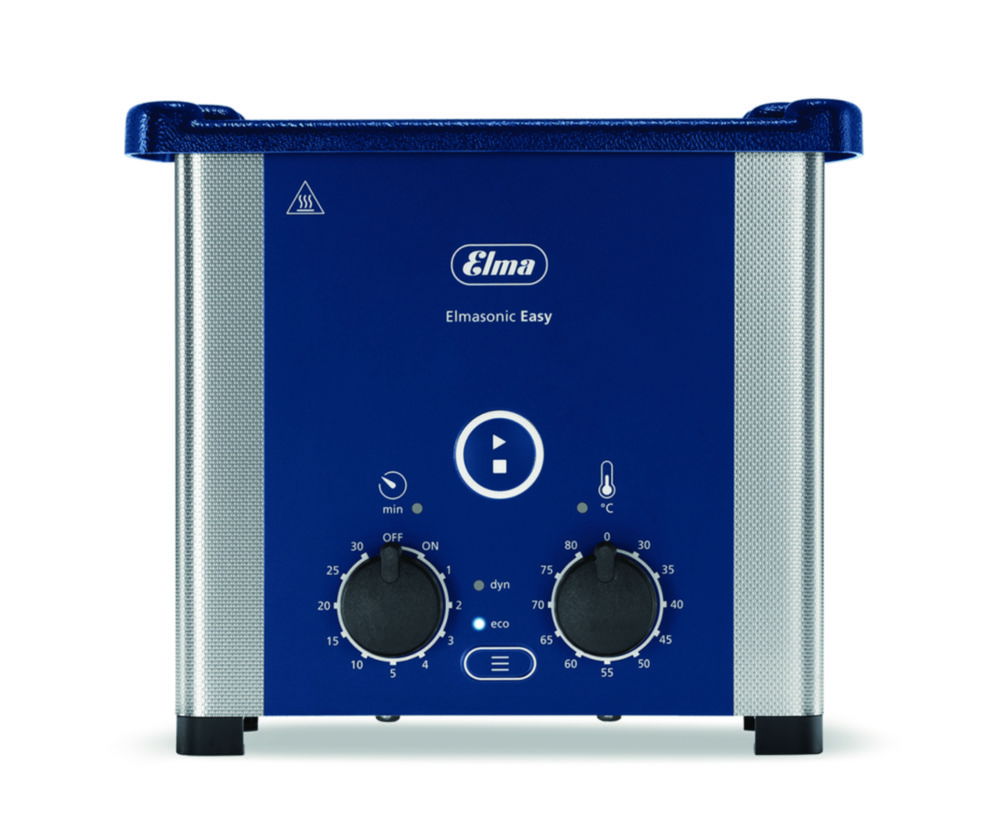

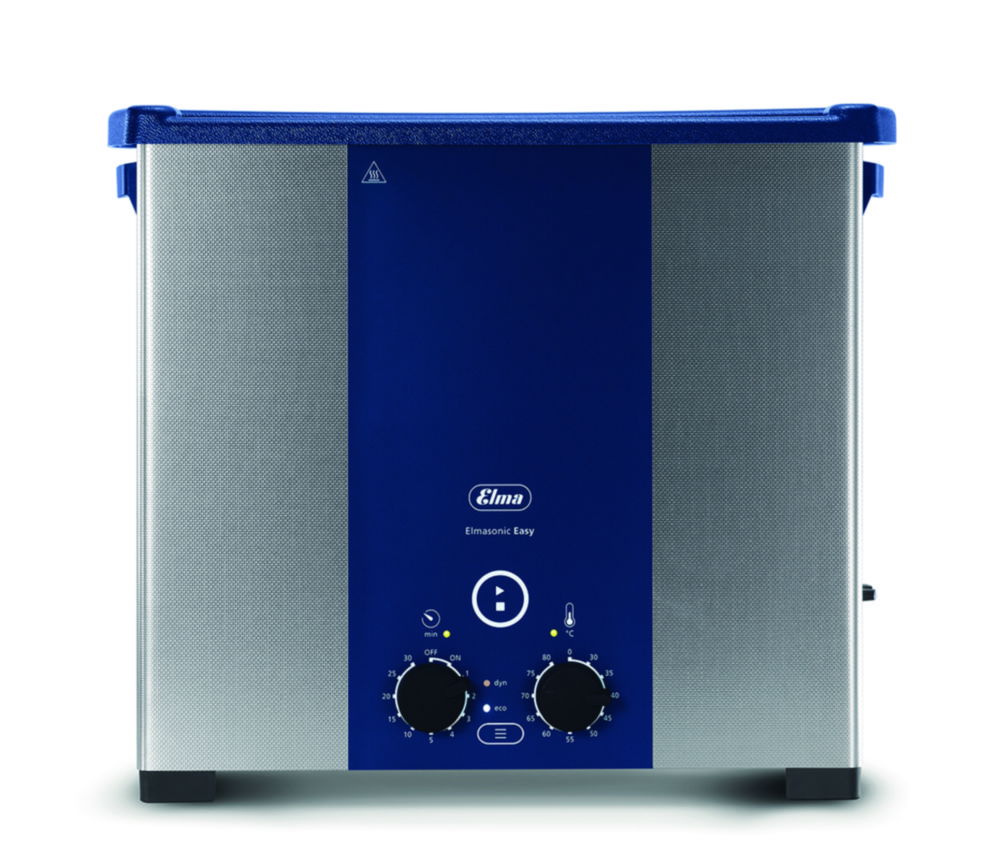

Ultrasonic baths Elmasonic Easy, with heating, with stopcock
Powerful and high-quality entry-level series for a wide range of applications. Intensive cleaning in dynamic mode or gentle and economic cleaning with quiet operation in eco mode.Splash-proof housing and cleaning tank, made of stainless steelElectronic selector switch on wipeable membrane keypad.LED display of all operating statesTimer from 1 to 30 min or continuous operationAutomatic safety switch-off with wake-up functionScope of supply: Device, lidPowerful and high-quality entry-level series for a wide range of applications. Intensive cleaning in dynamic mode or gentle and economic cleaning with quiet operation in eco mode.Splash-proof housing and cleaning tank, made of stainless steelElectronic selector switch on wipeable membrane keypad.LED display of all operating statesTimer from 1 to 30 min or continuous operationAutomatic safety switch-off with wake-up functionScope of supply: Device, lid
Ultrasonic baths Elmasonic Easy, with heating, without stopcock
Powerful and high-quality entry-level series for a wide range of applications. Intensive cleaning in dynamic mode or gentle and economic cleaning with quiet operation in eco mode.Splash-proof housing and cleaning tank, made of stainless steelElectronic selector switch on wipeable membrane keypad.LED display of all operating statesTimer from 1 to 30 min or continuous operationAutomatic safety switch-off with wake-up functionScope of supply: Device, lidPowerful and high-quality entry-level series for a wide range of applications. Intensive cleaning in dynamic mode or gentle and economic cleaning with quiet operation in eco mode.Splash-proof housing and cleaning tank, made of stainless steelElectronic selector switch on wipeable membrane keypad.LED display of all operating statesTimer from 1 to 30 min or continuous operationAutomatic safety switch-off with wake-up functionScope of supply: Device, lid

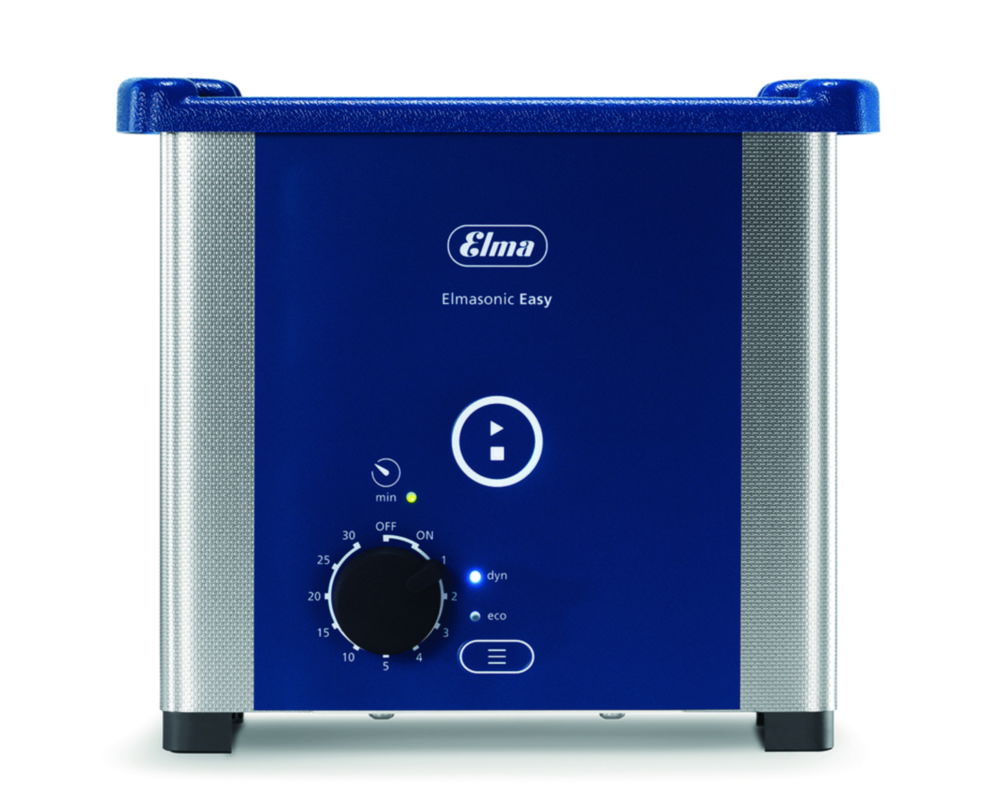

Ultrasonic baths Elmasonic Easy, without heating, without stopcock
Powerful and high-quality entry-level series for a wide range of applications. Intensive cleaning in dynamic mode or gentle and economic cleaning with quiet operation in eco mode.Splash-proof housing and cleaning tank, made of stainless steelElectronic selector switch on wipeable membrane keypad.LED display of all operating statesTimer from 1 to 30 min or continuous operationAutomatic safety switch-off with wake-up functionScope of supply: Device, lidPowerful and high-quality entry-level series for a wide range of applications. Intensive cleaning in dynamic mode or gentle and economic cleaning with quiet operation in eco mode.Splash-proof housing and cleaning tank, made of stainless steelElectronic selector switch on wipeable membrane keypad.LED display of all operating statesTimer from 1 to 30 min or continuous operationAutomatic safety switch-off with wake-up functionScope of supply: Device, lid
Ultrasonic baths Elmasonic Xtra
Developed for the toughest cleaning tasks, these devices combine the most advanced technology with proven quality and are therefore ideal for applications where high cleanliness and maximum reliability are essential. They effortlessly cope with even the most stubborn dirt such as oils, greases, abrasive pastes or organic contaminants and deliver perfect results. Especially suitable for continuous use.With welded tanks made of cavitation-resistant stainless steelDynamic mode for more intensive cleaning with higher cleaning powerSweep and Pulse mode alternately for homogeneous and powerful cleaningEco mode for gentle cleaning with quieter operationWith stainless steel drain tap on the sideAdjustable temperature from 30 to 80 °CTimer from 1 to 30 min or continuous operationAutomatic safety switch-off with wake-up functionDry-run detectionScope of supply: Ultrasonic bath, stainless steel lid, mains cable (2 m), manual
Ultrasonic Baths SONOREX DIGIPLUS
Ultrasonic baths in stainless steel housing, time setting 1, 2, 3, 4, 5, 10, 15, 30 min and continuous, with heating, adjustable temperature range from 20 to 80 °C and warning LED at excess temperature, degassing of liquids (DEGAS), Pulse function, SweepTec®. Devices additionally with power setting 20 to 100 %.
Ultrasonic baths SONOREX DIGITEC DT 1028 F
Flat ultrasonic baths with fast degassing and for sample preparation.Sample preparation in laboratory flasksFast degassing of samples at the push of the buttonHomogenisingSame power density in all ultrasonic bathsReproducibility of results in the different bath sizesUniform sonication of samples irrespective of size and arrangement of the flasksSpring clamps EK or flask holders ZF are necessary to fix the laboratory flasks.Scope of supply: Ultrasonic bath, 2 x flask holder GL 510 F, 1 l TICKOPUR R 33
