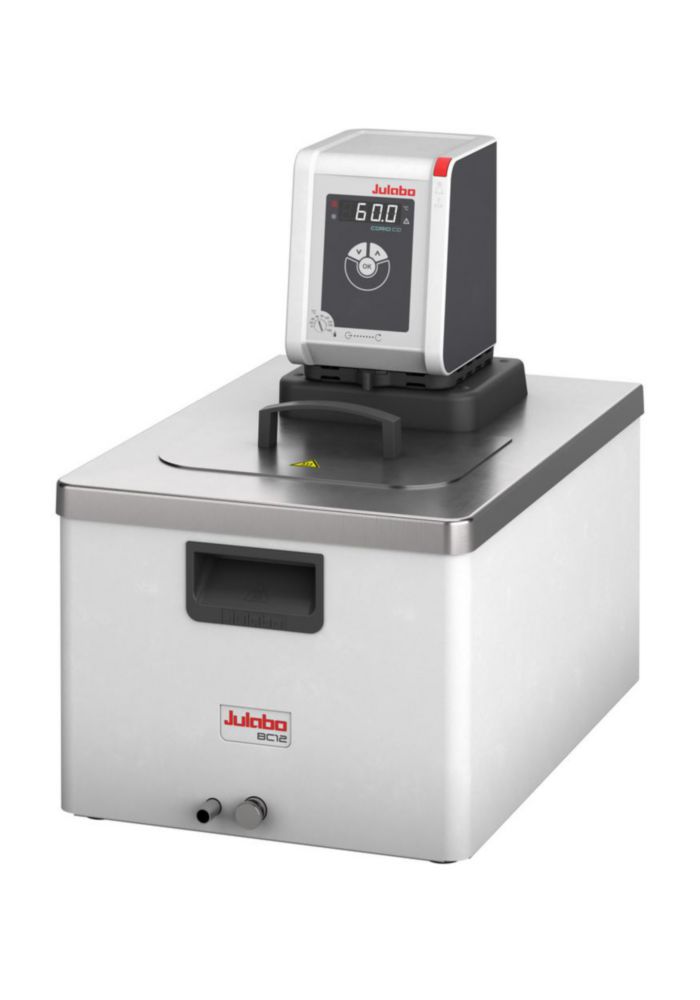

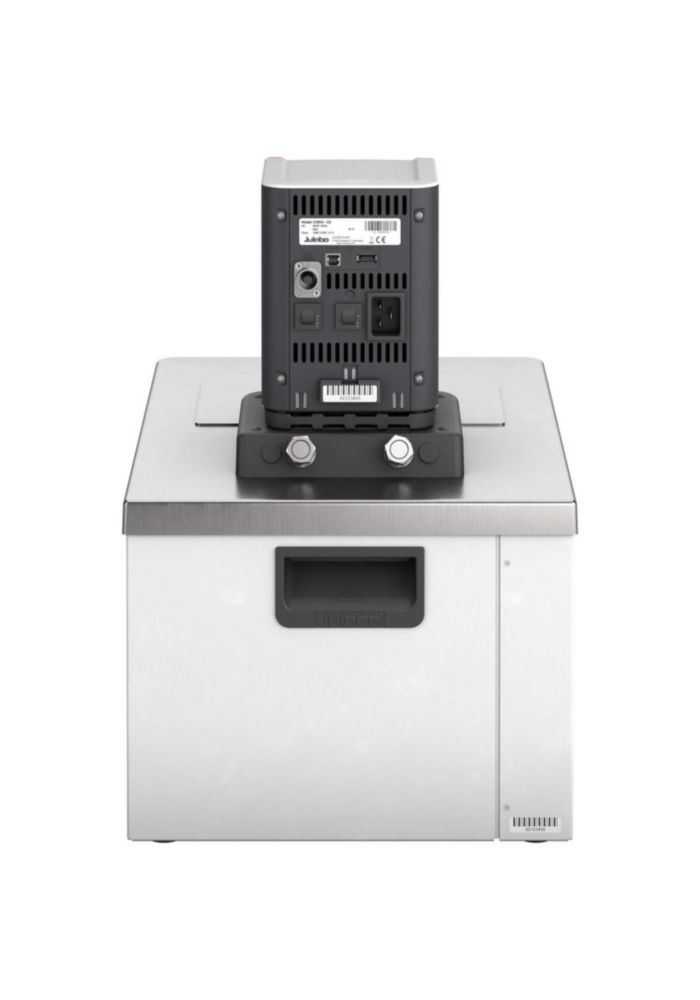

Circulator Baths, CORIO™ CD
Julabo GmbH
€0.00
Content: 1
Product number: 4658006
Product information "Circulator Baths, CORIO™ CD"
CORIO™ CD Heating Circulators for internal and external temperature applications with stainless steel baths for working temperatures from 20 °C to 150 °C. CORIO™ Heating Circulators feature professional technology for demanding applications. These units facilitate internal temperature control in the bath tank or control of externally connected applications.
- For internal and external applications
- Bright, white, easy to read display
- Very quiet
- Pump change-over between internal and external circulation
- USB connection
- High-quality bath tanks made of stainless steel with bath lid and drain tap
- Integrated cooling coil for counter-cooling
| Bath depth: | 200 mm |
|---|---|
| Depth opening: | 150 mm |
| Ext. depth: | 490 mm |
| Ext. height: | 470 mm |
| Ext. width: | 330 mm |
| External dimensions (WxDxH): | 330 x 490 x 470 mm |
| Heating capacity: | 2 kW |
| IP code: | IP 21 |
| Manufacturer Article Number: | 9012512 |
| Material bath: | Stainless steel |
| Max. delivery pressure: | 0.35 bar |
| Max. flow rate: | 15 l/min |
| Max. temperature: | 150 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 12 l |
| Min. temperature: | 20 °C |
| Min. volume bath: | 8.5 l |
| Opening (WxD): | 220 x 150 mm |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Temperature: | 20 ... 150 °C |
| Temperature stability: | ±0,03 °C |
| Type: | CD-BC12 |
| Type of auxiliary energy: | Mains connection |
| Volume bath: | 8.5 ... 12 l |
| Weight: | 12.2 kg |
| Width opening: | 220 mm |
| With lid: | Yes |
