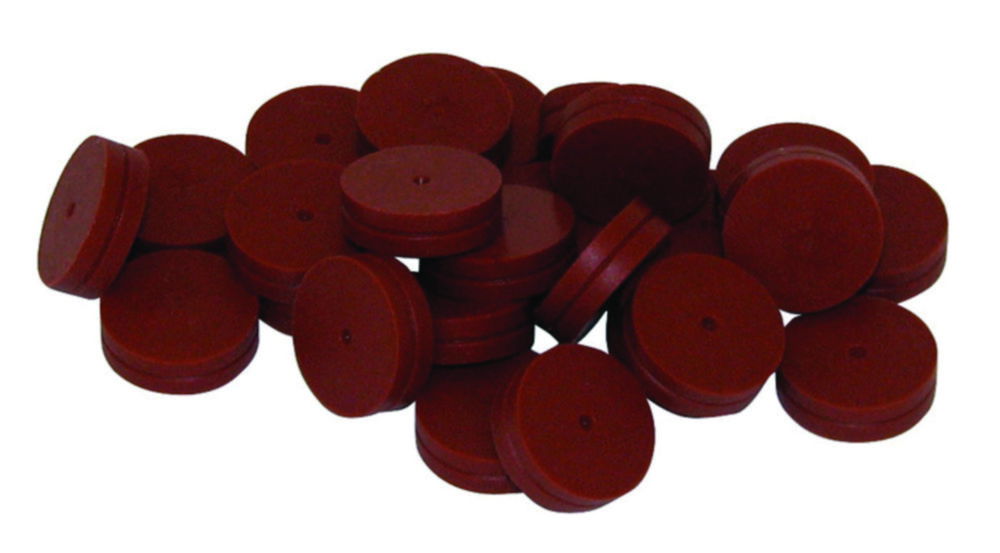

Septa for Agilent GC/EC
All Septa are made with a high grade silicone material to minimize needle coring. These new materials meet or exceed industry standards, giving you reassurance in the quality of your work. All of these Septa are durable with excellent resealing properties and excellent solvent resistance.EC = High Temperature Silicone Septa, for significantly longer injection life, low bleed and low injection port adhesion.
Septa for Agilent GC/HT
All Septa are made with a high grade silicone material to minimize needle coring. These new materials meet or exceed industry standards, giving you reassurance in the quality of your work. All of these Septa are durable with excellent resealing properties and excellent solvent resistance.HT = BTO Silicone Septa, Bleed and temperature optimized, combined with outstanding mechanical properties.
Silylation kit
For improved volatility, better thermal stability or low limit of detection in gas chromatography prerequisite: quantitative, rapid and reproducible formation of only on derivative halogen atoms introduced by derivatisation (e.g. trifluoroacetates) allow specific detection (ECD) with the advantage of high sensitivity elution order and fragmentation patterns in MS can be influenced by a specific derivatisation.Reagents for silylation - alkylation (methylation) - acylation are available.Which is the proper reagent for silylation?Test kit for determination of the optimum silylation.
Silylation reagents - BSTFA, SILYL-991
For improved volatility, better thermal stability or low limit of detection in gas chromatography prerequisite: quantitative, rapid and reproducible formation of only on derivative halogen atoms introduced by derivatisation (e.g. trifluoroacetates) allow specific detection (ECD) with the advantage of high sensitivity elution order and fragmentation patterns in MS can be influenced by a specific derivatisation.Reagents for silylation - alkylation (methylation) - acylation are available.N,O-bis-trimethylsilyl-trifluoroacetamidem.w. 257.4, Bp 40°C (12mm Hg), density d20°/4° = 0.961BSTFA: R = CF3 powerful trimethylsilyl donor with approximately the same donor strength as the non-fluorinated analogue BSAadvantage of BSTFA over BSA: greater volatility of its reaction products (particularly useful for GC of some lower boiling TMS amino acids.BSTFA is nonpolar (less polar than MSTFA), and can be mixed with acetonitrile for improved solubility. For silylating fatty acid amides, hindered hydroxyls and other compounds, which are difficult to silylate (like secondary alcohols and amines), we recommend BSTFA + 1% trimethylchlorosilane (TMCS), available under the designation SILYL-991.Due to their purpose, derivatisation reagents are very reactive substances. For this reason they should be stored cool and protected from moisture.The derivatisation reagents are supplied in vials with crimp caps for easy access with a syringe. Vials with pierced sealing disks have limited stability and should be used immediately.
Silylation reagents - MSTFA
For improved volatility, better thermal stability or low limit of detection in gas chromatography prerequisite: quantitative, rapid and reproducible formation of only on derivative halogen atoms introduced by derivatisation (e.g. trifluoroacetates) allow specific detection (ECD) with the advantage of high sensitivity elution order and fragmentation patterns in MS can be influenced by a specific derivatisation.Reagents for silylation - alkylation (methylation) - acylation are available.N-methyl-N-trimethylsilyl-trifluoroacetamidem.w. 199.1, Bp 70 °C (75 mm Hg), density d20°/4° = 1.11MSTFA: R' = CF3, R" = CH3The most volatile trimethylsilyl amide available.Very strong TMS donor which does not cause any noticeable fouling of the FID burning chamber even after long-time measuring series.The already good solution characteristics can be improved by addition of submolar quantities of protic solvents (e.g. TFA for extremely polar compounds such as hydrochlorides) or pyridine (e.g. for carbohydrates).Due to their purpose, derivatisation reagents are very reactive substances. For this reason they should be stored cool and protected from moisture.The derivatisation reagents are supplied in vials with crimp caps for easy access with a syringe. Vials with pierced sealing disks have limited stability and should be used soon.

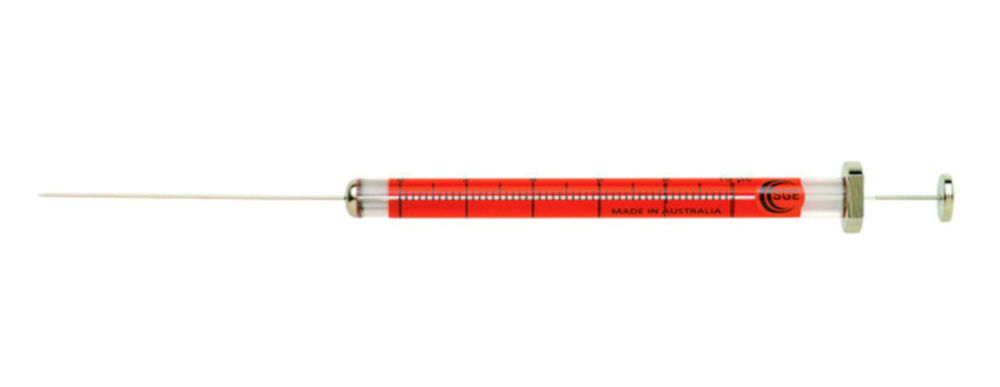

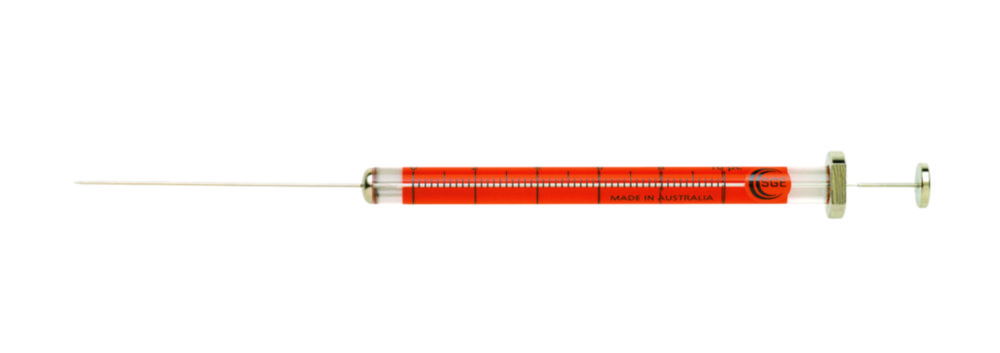

Syringes for GC autosampler from Agilent
GC syringes for Agilent autosampler 7673, 7683 and 6850With fixed or removable needleTwo different needle diameter and tapered needlesHigh reproducibility, low carry-over
Syringes for GC autosampler from Agilent, gastight
GC syringes for Agilent autosampler 7673, 7683 and 6850With fixed or removable needleTwo different needle diameter and tapered needlesHigh reproducibility, low carry-over

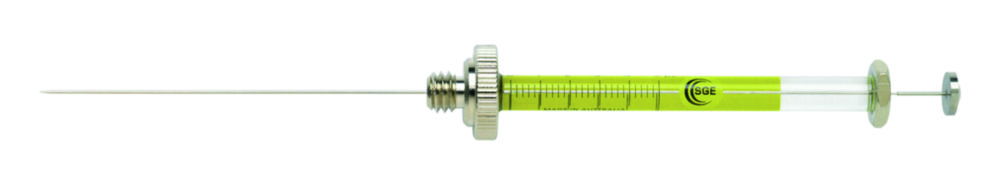

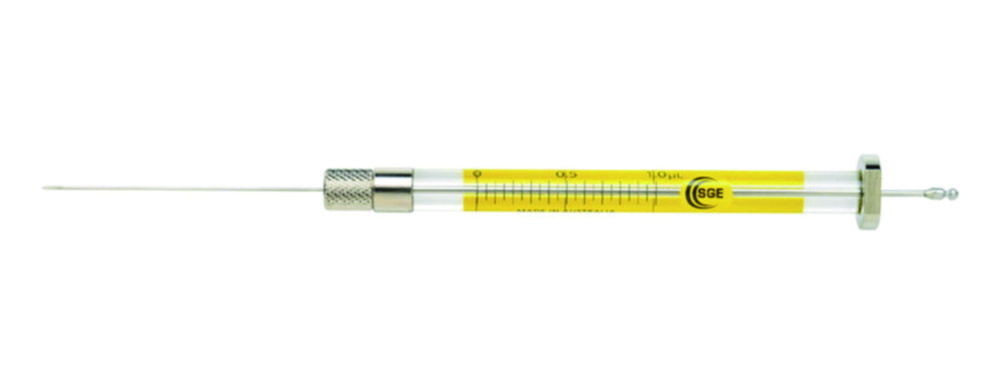

Syringes for GC autosampler from CTC
Syringes for CTC Analytics CombiPal and GC PAL. High reproducibility, low carry-over.
Syringes for GC autosampler from CTC / Thermo / Bruker (Varian)
Syringes for CTC Analytics CombiPal and GC PAL. High reproducibility, low carry-over.
Syringes for GC autosampler from CTC / Thermo AS3000, AS2000, AS200/80
Syringes for CTC Analytics CombiPal and GC PAL. High reproducibility, low carry-over.
Syringes for GC autosampler from CTC / Thermo TriPlus
Syringes for CTC Analytics CombiPal and GC PAL. High reproducibility, low carry-over.
Syringes for GC autosampler from CTC / Thermo, gastight
Syringes for CTC Analytics CombiPal and GC PAL.High reproducibility, low carry-overFor Thermo TriPlus
Syringes for GC autosampler from Perkin-Elmer
GC syringes for all Perkin-Elmer autosampler e.g. Clarus. High reproducibility, low carry-over.
Syringes for GC autosampler from Perkin-Elmer, gastight
GC syringes for all Perkin-Elmer autosampler e.g. Clarus. High reproducibility, low carry-over.

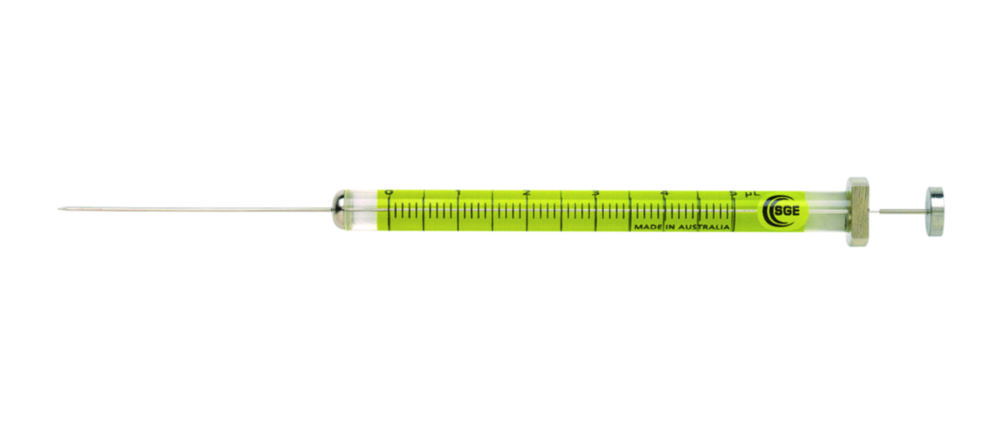

Syringes for GC autosampler from Shimadzu
For Shimadzu AOC-14, AOC-17, AOC-20 and AOC-20i. Needle tip: cone.Article 6.205 989 with GT plunger.
Syringes for LC autosampler from CTC
Syringes for CTC Analytics HTS, HTC and LC PAL (needle tip: LC). Gastight.

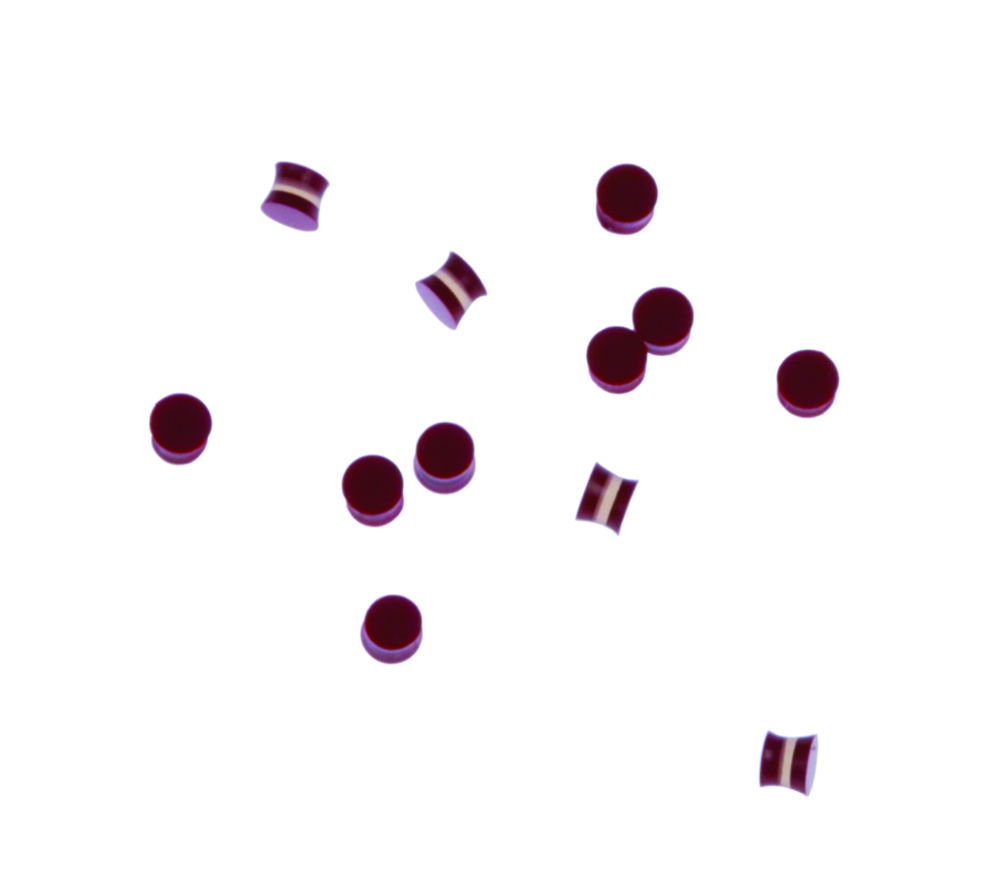

Three-layer septa for GC inlet
Low density silicone was sandwiched between two high density silicone layers. Working temperature max. 200 °C.
Zero Air generators Precision Zero Air
Generates clean, dry and hydrocarbon-free air for FIDs in GC. Also meets the purity requirements for trace analysis.Fail-safe, continuous generation of zero airHydrocarbon content <0.05 ppmModular design and combination option with other PEAK Precision devicesMinimal maintenanceNo replacement of the catalyst chamber requiredCompatible with the Precision Air CompressorStatus displayScope of supply: Zero air generator, 3 m PTFE tubing, 1/4" compression fitting, 1/8" compression fitting, mains power cable for EU, UK and USSpecificationsHydrocarbon content:0.05 ppmPermissible ambient temperature:5 ... 35 °CPower supply:110/230 V, 50/60 HzWarranty:1 year
