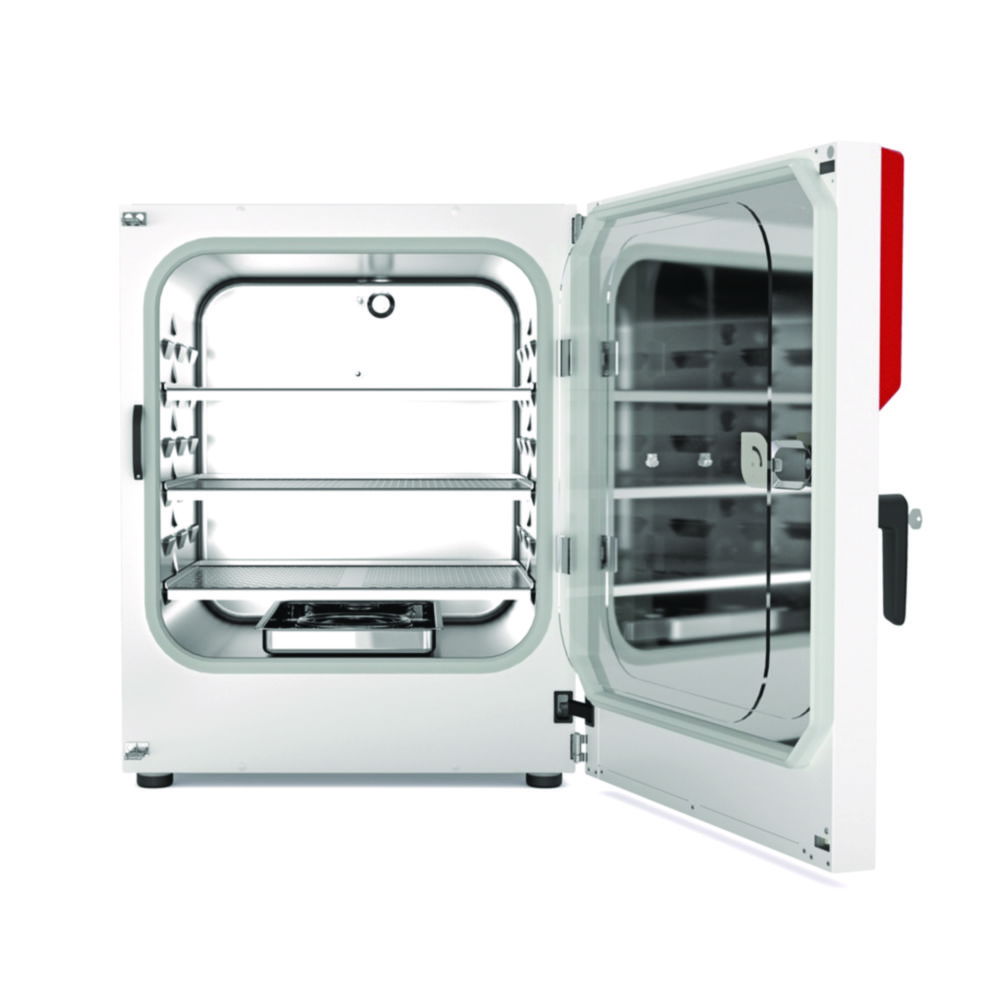

CO2 incubators CB-O, with O2 control
BINDER GmbH
€0.00
Content: 1
Product number: 4705097
Product information "CO2 incubators CB-O, with O2 control"
Suitable for routine cell cultivation applications and incubation tasks, also for complex approaches under hypoxic conditions. Models with additional O2 control are available.
- Anti-contamination concept with 180 °C hot air sterilization
- CO2 sensor with single-beam infrared technology
- Seamless inner chamber made of stainless steel
- Fanless interior with Venturi CO2 gas mixing nozzle
- Internal data logger, measured values can be read out via USB
- Troubleshooting system with visual and acoustic alarms
- Interfaces: Ethernet, USB, zero-voltage alarm contact
- Humidification system with condensation protection
- Touchscreen controller
- Fail-safe CO2 system for protecting the pH of cell cultures
| CO₂ range: | 0 ... 20 % |
|---|---|
| Depth int.: | 500 mm |
| Ext. depth: | 715 mm |
| Ext. height: | 870 mm |
| Ext. width: | 680 mm |
| External dimensions (WxDxH): | 680 x 715 x 870 mm |
| Height int.: | 600 mm |
| Int. width: | 560 mm |
| Internal dimensions (WxDxH): | 560 x 500 x 600 mm |
| Manufacturer Article Number: | 9640-0012 |
| Material interior: | Stainless steel |
| Max. CO₂: | 20 % |
| Max. O₂: | 20 % |
| Max. no. of inserts: | 6 |
| Max. relative humidity: | 95 % |
| Max. temperature: | 60 °C |
| Max. voltage: | 120 V |
| Min. CO₂: | 0 % |
| Min. O₂: | 0.2 % |
| Min. relative humidity: | 90 % |
| Min. temperature: | +6 °C |
| Min. voltage: | 100 V |
| Nominal capacity: | 170 l |
| O₂: | 0.2 ... 20 % |
| Plug type: | US |
| Power supply: | 100 ... 120 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1.4 kW |
| Relative humidity: | 90 ... 95 % |
| Temperature: | RT+6 ... 60 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,1 K (37 °C) |
| Type: | CB170-O-UL |
| Type of auxiliary energy: | Mains connection |
| Weight: | 95 kg |
Login
No reviews found. Share your insights with others.
Skip product gallery
Accessories
Base frames for CO2 incubators CB series
The base frame equipped with casters is used for the secure positioning and leveling of CO2 incubators.
Regular price: €0.00
Stacking adapters for CO2 incubators CB series
Suitable for thermally isolated stacking of two CO2 incubators.
Regular price: €0.00
Stacking frames for CO2 incubators CB series
Stable, vibration-free stacking frame on casters with stop brake for safe stacking of two CO2 incubators.
Regular price: €0.00
