Bridge circulators MAGIO MS and MX
Julabo GmbH
€0.00
Content: 1
Product number: 4678302
Product information "Bridge circulators MAGIO MS and MX"

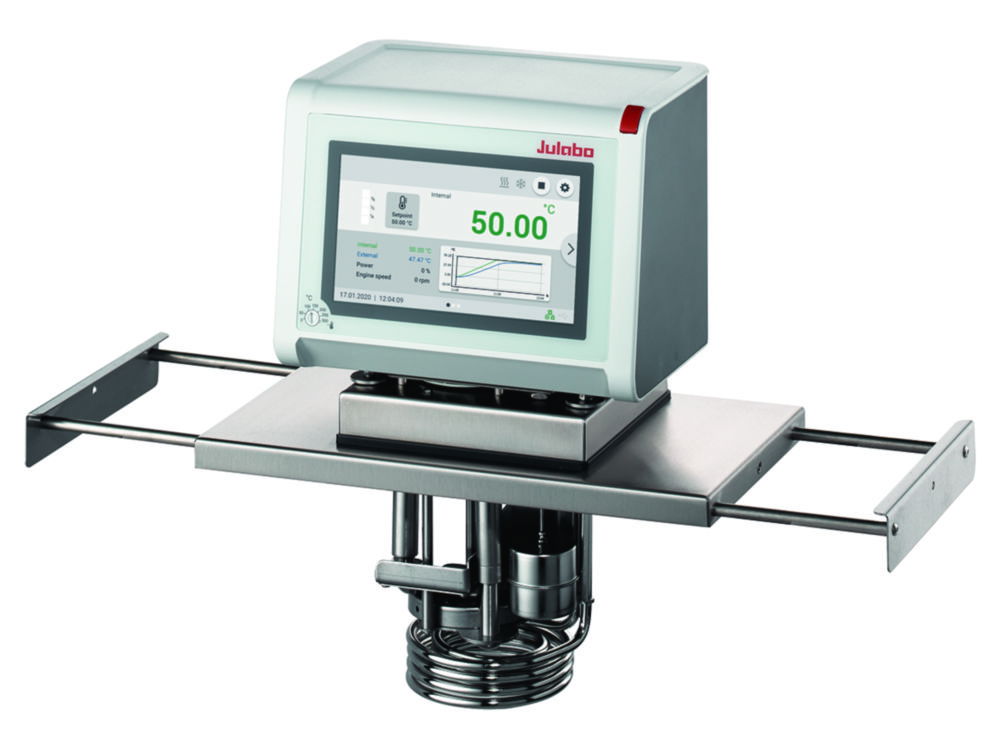

Thanks to the adjustable stainless steel bridge the thermostats can be used with bath tanks up to a filling volume of 100 litres and bath widths from 33 to 68 cm.
- Simple control of complex applications
- Infinitely adjustable, extremely powerful pressure and suction pump
- Large, high-resolution TFT touch display with multilingual user interface
- Medium-contacting parts made of stainless steel
- Integrated programmer
- External Pt100 connection
- USB interface
- RS232 interface
- Ethernet interface
- Analogue interfaces (optionally)
- Classification III according to DIN 12876-1
| Depth: | 190 mm |
|---|---|
| Dimensions (WxDxH): | 340 x 190 x 360 mm |
| Heating capacity: | 2 kW |
| Height: | 360 mm |
| IP code: | IP 20 |
| Immersion depth: | 150 mm |
| Manufacturer Article Number: | 9032201 |
| Max. delivery pressure: | 0.92 bar |
| Max. flow rate: | 31 l/min |
| Max. immersion depth: | 150 mm |
| Max. suction pressure: | 0.4 bar |
| Max. temperature: | 300 °C |
| Max. voltage: | 230 V |
| Min. temperature: | 20 °C |
| Operation: | Touchscreen |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Programmable: | Yes |
| Temperature: | 20 ... 300 °C |
| Temperature stability: | ±0,01 °C |
| Type: | MS-Z |
| Type of auxiliary energy: | Mains connection |
| Type of display: | TFT |
| Weight: | 7.2 kg |
| Width: | 340 mm |
| With timer: | Yes |
