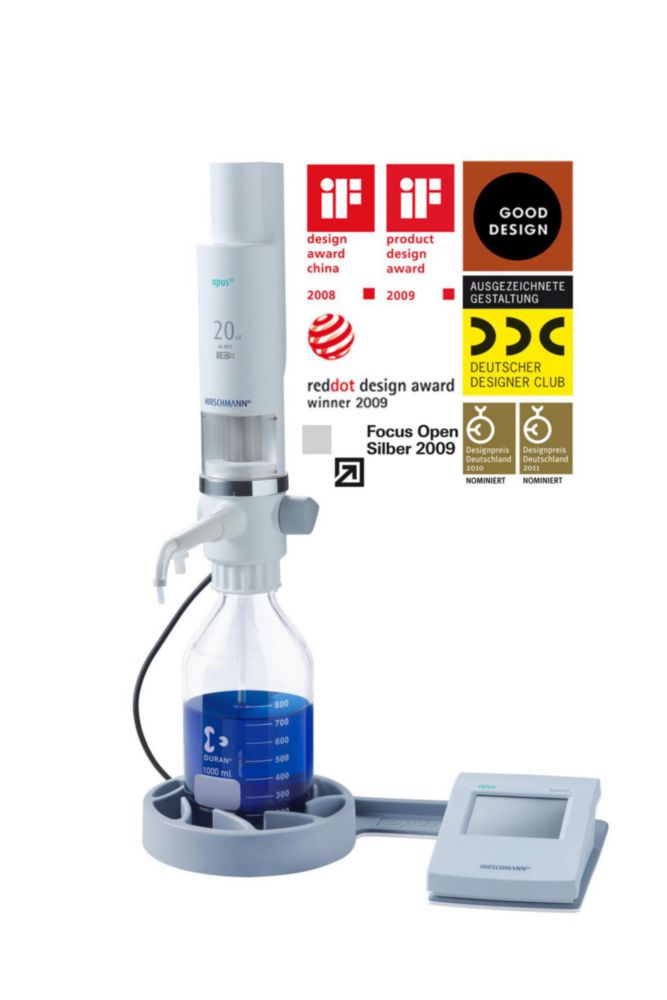

Bottle-top dispenser opus® dispenser
€0.00
Product information "Bottle-top dispenser opus® dispenser"
Outstanding features:
- Simple menu-guided user instructions with tab cards on an external coloured TFT touch screen. Screen legibility is also guaranteed in even strong daylight
- Versatile application options, thanks to superior quality materials (ECTFE, DURAN glass, FEP); media-conveying components are suitable for steam sterilisation (121 °C)
- Configuration of up to 9999 dispensing repetitions possible, intervals of up to 9999 seconds can be selected between individual dispensing operations
- Stepper function: Dispensing of several volume dosages (differing volumes possible) from a single cylinder charge (10 ml, 20 ml or 50 ml)
- Individual problem-free calibration options
- Individual adaptation options, e.g. language selection (DE, UK, FR, ES), specification of charging and dispensing velocity in ml/sec (option for coordination with medium viscosity)
- Method memory, capacity for up to 9 different settings (e.g. volume, velocity, cycle duration, etc.).
- Accessories: pedal switch for triggering dispensing, USB interface connection cable 750, 2000 or 5000 mm long touch screen connection cable, special lengths available, silicone system platform with bottle holder, batteries available for selective battery operation
- Discharge valves and valve seats consisting of high-purity aluminium oxide ceramic
- Saving of last setting ensures speedy further processing when the instrument is reactivated
- Declaration of conformity acc. to DIN 12600
- Quality assurance in compliance with DIN EN ISO 8655
Supplied with: opus® dispenser, complete with thread A 45 mm, 3 adapters (A 32, A 38 and S 40 Merck bottles), 1 screw coupled suction tube, 1 dispensing discharge unit and 1 power supply, 1 brown light protection window, touch screen module "dispenser", Data Power Cable 0.75 m, instruction manual, single calibration report
| Accuracy: | 0.6 ± R% |
|---|---|
| Dosing volume: | 20 ml |
| Manufacturer Article Number: | 9581020 |
| Max. dosing volume: | 20 ml |
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| Plug type: | EU/UK/US |
| Power supply: | 100 ... 240 V |
| Precision: | 0.2 ≤·VK% |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41121516 |
Login
Accessories
Grey. System platform provides a non-slip depositing surface for the control unit and a safe stand for storage bottles up to Ø 135 mm.
Replacement cylinders for base units.
Valve seat/ball made of high purity alumina ceramics (Al2O3 99.7 %).
Hand switch for triggering dispensing.
Valve seat/ball made of high purity alumina ceramics (Al2O3 99.7 %).
Tube material FEP.
With this adapter, the medium can be easily refilled using a funnel. It is not necessary to unscrew the base unit.
Flexible, spiral-shaped, working length approx. 1 m. Tube material FEP.
Suitable for all bottles up to diam. approx. 75 mm to 120 mm.
Discharge tube units with continuous tube guide and Luer-Lock connection.
Valve seat/ball made of high purity alumina ceramics (Al2O3 99.7 %).
For sensitive media dispensing. Left mouse key for dropwise titration in 10 µl steps. Right mouse key for fast titration.
