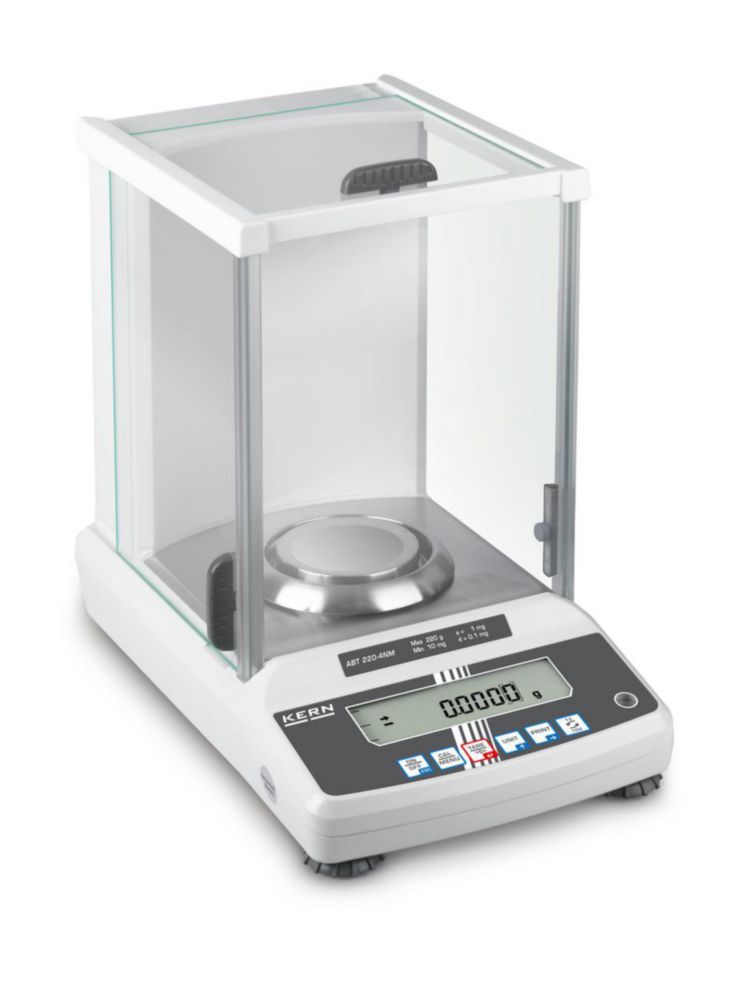

Balances, electronic, analytical, ABT series

Product information "Balances, electronic, analytical, ABT series"

Analytical and semi-microbalances which are suitable for verification.
All models have automatic calibration adjustment function by internal, motor-driven, calibration weight. It is possible to log ISO / GLP-compliant weighing or calibration data at any time via an accessory printer (not supplied) or data interface (bi-directional RS232-C).
Additionally, the balances have formulation, piece counting and percentage determination functions, as well as a flush-mounted weighing platform. All models are supplied with a modern, all-glass draught shield with sliding doors to the left, right and top.
Also available with DKD certified, ionizer, thermal printer, statistic printer at additional cost.

Single-cell advanced technology:
  • Fully automatic manufactured weighing cell from one piece of material
  • Stable temperature behavior
  • Short stabilisation time: Steady weight values within approx. 4 sec under laboratory conditions
  • Shock proof construction
  • High corner load performance

Adjusting program: Internal
Depth: 356 mm
Depth weighing plate: 80 mm
Dimensions (WxDxH): 217 x 356 x 338 mm
Height: 338 mm
Linearity: ±0,05/0,2 mg
Manufacturer Article Number: ABT 120-5DNM
Max. load: 42/120 g
Max. voltage: 220 V
Plug type: EU/CH/UK/US
Power supply: 220 V
Readability: 0,01/0,1 mg
Reproducibility: 0,02/0,1 mg
Type: ABT 120-5DNM
Type of auxiliary energy: Mains connection
UNSPSC: 41111517
Verified calibration: Verifiable
Weighing plate (WxD): Ø 80 mm
Weight: 7 kg
Width: 217 mm
With draft shield: Yes
