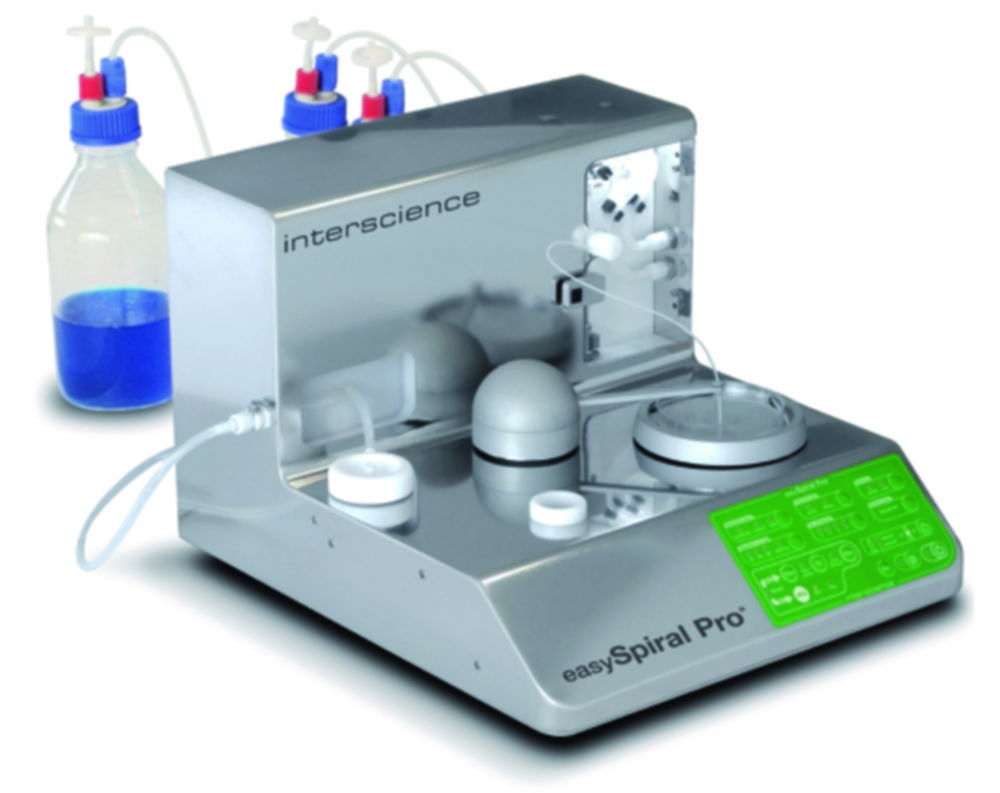

Automatic spiral plater EasySpiral® / EasySpiral pro®
€0.00
Product information "Automatic spiral plater EasySpiral® / EasySpiral pro®"
100% new platform with revolutionary rotating arm design allows simplified mechanics and hight speed movements: full cycle in 25 seconds.
100% new disinfection system:
- The stylus is cleaned inside and outside by over flow.
- The cleaning liquid bottles have sterile connectors, and are fully autoclavable .
- More than 600 platings can be made without changing the cleaning reservoir)
- Security detectors for lack of cleaning liquid
All liquid flows visible and accessible without tools, the stylus can be changed in 25 seconds. No external maintenance required. No need for external vacuum pump. Transparent casing in option to work outside laminar flow.
| Specifications EasySpiral pro® | |
| Petri dish size: | 90mm and 150mm |
| Syringe capacity: | 1000 microlitres |
| Volume dispensed: | from 10 to 1000 microlitres |
| Counting range: | 30 to 107 CFU/ml |
| Full cycle time: | 25 seconds |
| USB programmable volume: Exel export traceability | yes yes |
| deposition mode: cleaning autonomy: | exponential, circles, uniform 600 cycles (2L bottles) |
| EasySpiral® Petri dish size: | 90mm |
| Volume dispensed: | 50 microlitres |
| Counting range: | 30 to 107 CFU/ml |
| Full cycle time: | 25 seconds |
| deposition mode: cleaning autonomy: | exponential, circles 600 cycles (2L bottles) |
| Dimensions (W x D x H) mm: | 290 x 410 x 380 |
|---|---|
| Manufacturer Article Number: | 412.000 |
| Supply requirements V: | 90V to 264 V, 47 to 440 Hz |
| Type: | easySpiral® |
| Weight kg: | 15.3 |
