pH electrode IntelliCAL PHC201
Combined digital pH electrode with built-in temperature sensor and gel electrolyte. With epoxy shaft and Ag/AgCl reference system.
pH electrode LE409
pH eletrode with glass shaft, Ag/AgCl reference system, BNC plug and 1 m fixed cable.
pH electrode SE 101N
Robust electrode with plastic shaft for pH measurements in environmental analysis and water management. With integrated Pt 1000 temperature sensor and Ag/AgCl reference system.

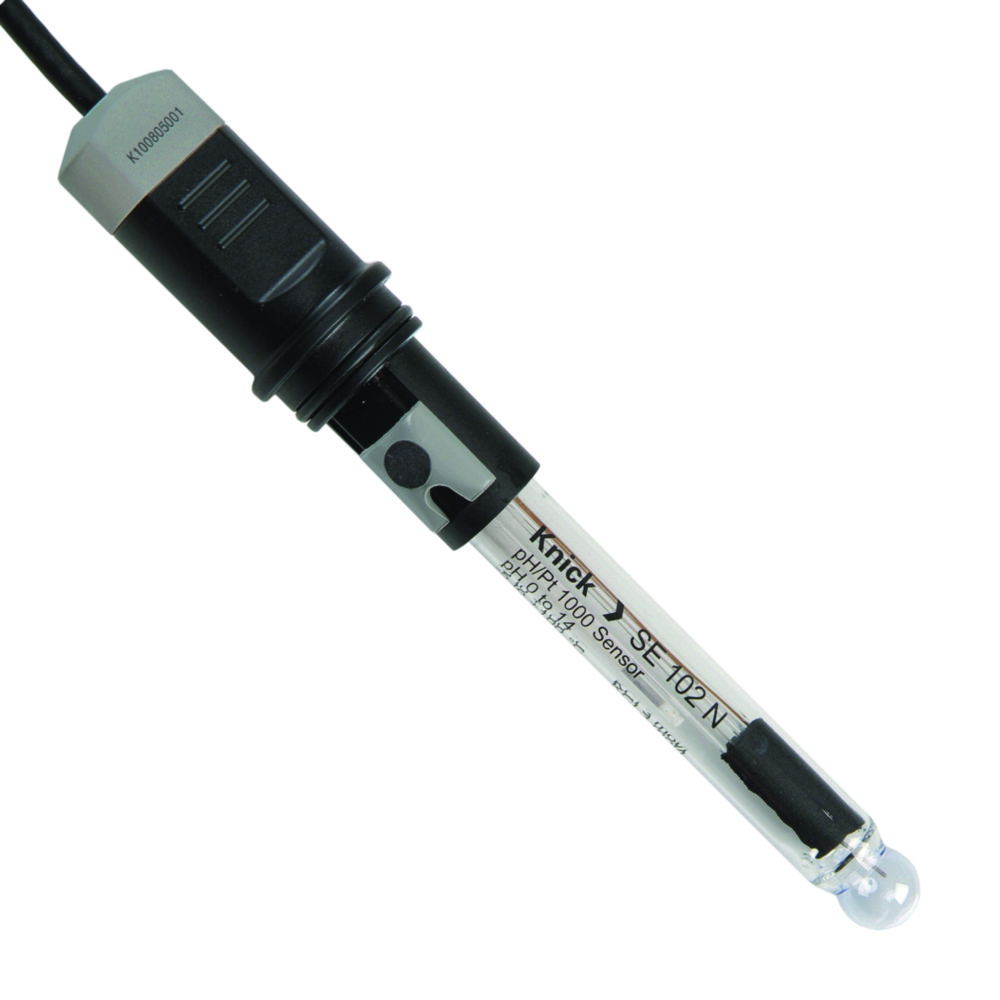

pH electrode SE 102 N
pH electrode with glass shaft and integrated Pt1000 temperature sensor. Ideal for precise pH measurements in laboratory and in the field. With refillable liquid electrolyte and Ag/AgCl reference system.
pH electrode SE 104 N
Insertion electrode with plastic shaft. Ideal for semi-solid and viscous samples for e.g. the food sector. Two hole diaphragms ensure stable measured values. With Ag/AgCl reference system and DIN coax connector.
pH electrode SenTix® Top 940
The digital pH electrode with PEEK shaft is suitable for a wide range of applications in the laboratory, field and process. With Duralid® reference system and integrated NTC 30 kOhm temperature sensor.
pH electrodes for measurements in aqueous and non-aqueous media
DGi111-SC: For pH measurement and acid/base titration in aqueous media. With S12 screw cap and detachable cable. ARGENTHAL™ reference system. With Plug & Play functionality.DGi114-SC: For pH measurements and acid/base titrations in clogged and protein or sulfide containing samples. With Plug & Play functionality and ARGENTHAL™ reference system.DGi115-SC: For pH measurements and acid/base titrations in aqueous media. Suitable for use in polar solvents, e.g. titration with perchloric acid in acetic acid or with sodium methylate in methanol and other media with low ion concentration. With S12 screw cap and ARGENTHAL™ reference system. With Plug & Play functionality.DGi116-Solvent: Especially suitable for acid/base titrations that require fast response times in non-aqueous media, e.g. TAN/TBN determinations in oils, titrations with perchloric acid, cyclohexylamine and alcoholic HCl, alkalis or Na-Methylate. For determination of epoxy numbers, acid values and saponification numbers, also free fatty acids in polymers, oils/fats and resins. With Plug & Play functionality and ARGENTHAL™/LiCl reference system.DGi117-Water: For pH measurement and acid/base titrations in aqueous solutions of low ion conductivity and low buffer capacity. With integrated Pt1000 temperature sensor. Suitable for measurements in rain-, surface- and drinking water. With Plug & Play functionality and ARGENTHAL™ reference system.

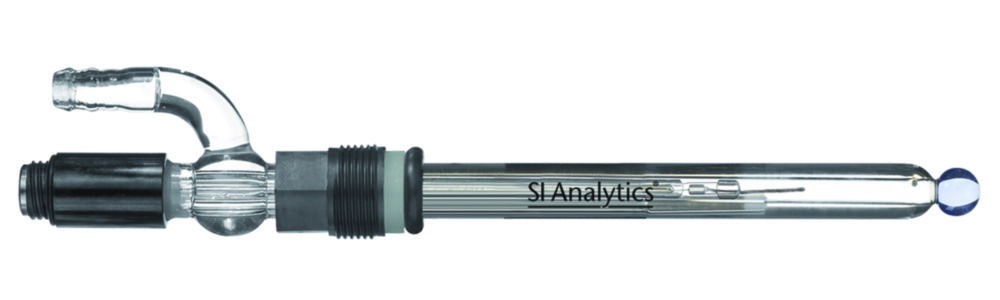

pH electrodes HA465-50
Refillable, with automatic temperature compensation. For use in process technology, e.g. stirring tanks, open basins and pipelines. Suitable for rough process conditions and strongly alcaline media. With patented silver ion blocking that avoids contamination and clogging of the diaphragm in sulphide-containing media.Automatic temperature compensationCan be used up to 6 bar pressureReference system can be pressurised for automatic cleaningRefillable reference electrolyte for long service lifeSterilisableAvailable with KCl or Friscolyt® reference electrolyte for media containing solvent or proteines
pH electrodes InLab® 413
For portable applications in the lab and outdoors, robust and maintenance-free.pH-combination electrode with chemically resistant PEEK shaft, ARGENTHAL™ reference system. Fixed BNC/RCA (Cinch) cable. InLab® 413 IP67 with MultiPin™ electrode head.

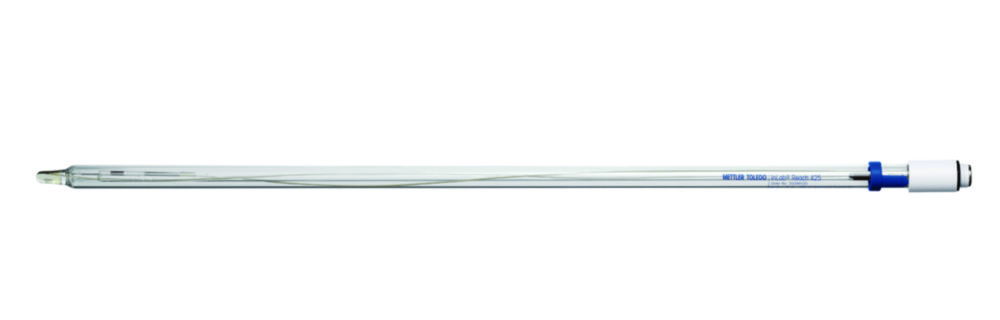

pH electrodes InLab®Reach
Combined pH electrode, glass shaft, ARGENTHAL™ reference with silver-ion trap.Cable, please order separately.

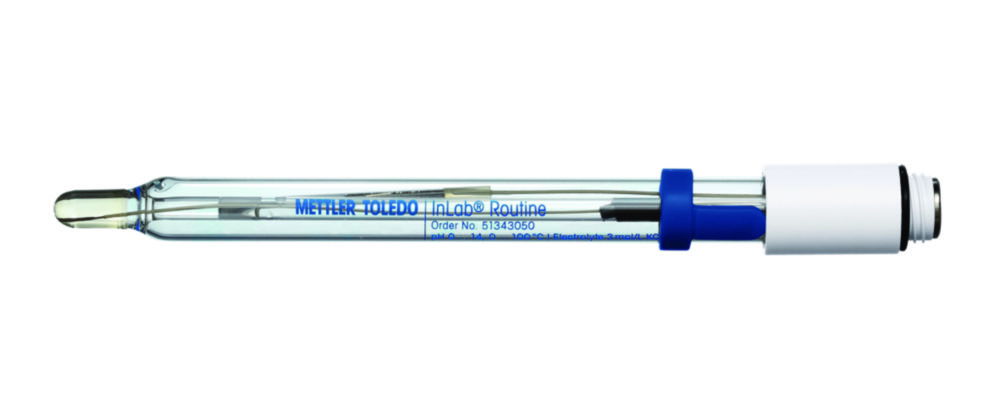

pH electrodes InLab®Routine Series
Combined pH electrode, glass shaft, ARGENTHAL™ reference with silver-ion trap, detachable cable. For InLab®Routine please order separately InLab® cable S7 and for InLab®Routine Pro and InLab®Routine Pro ISM please order separately InLab® cable MultiPin-BNC/RCA.

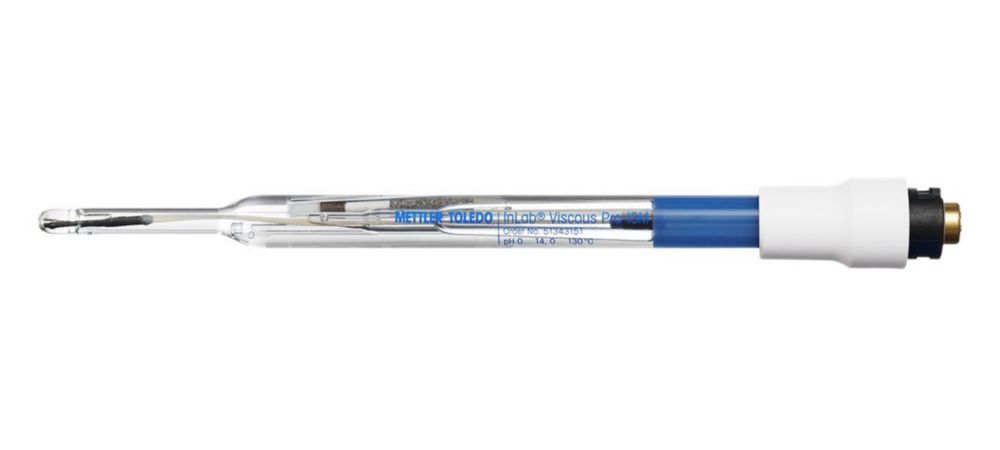

pH electrodes InLab®Viscous/Viscous Pro-ISM
pH combination electrode with glass shaft, suitable for viscous samples, e.g. cosmetics, paints and glues. With SteadyForce™ reference system. InLab® Viscous with S7 screw cap, InLab® Viscous Pro-ISM with MultiPin™ cap.Please order cable separately.

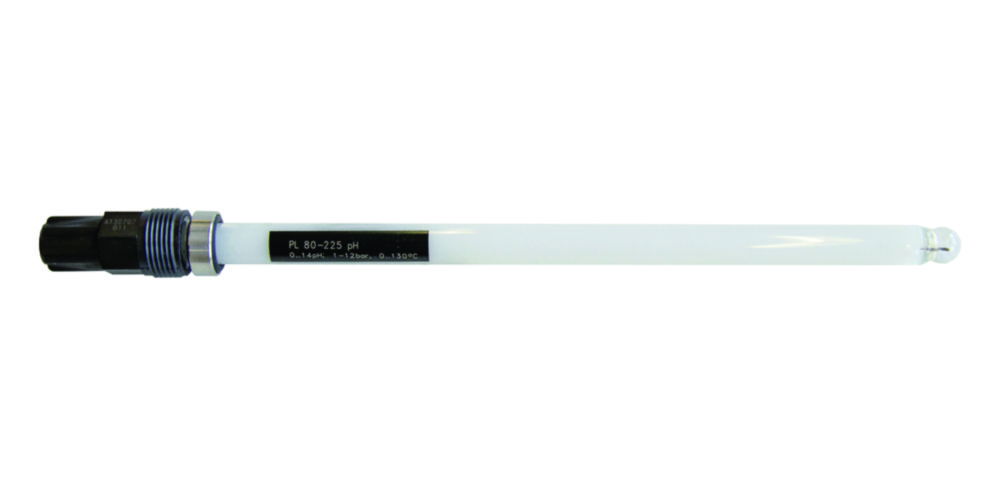

pH electrodes ProcessLine
Low-maintenance pH combination electrode, glass shaft, Silamid®-reference system.
pH electrodes SE 100 N / SE 103 N
pH electrodes for standard applications in the laboratory. With glass shaft and liquid electrolyte.

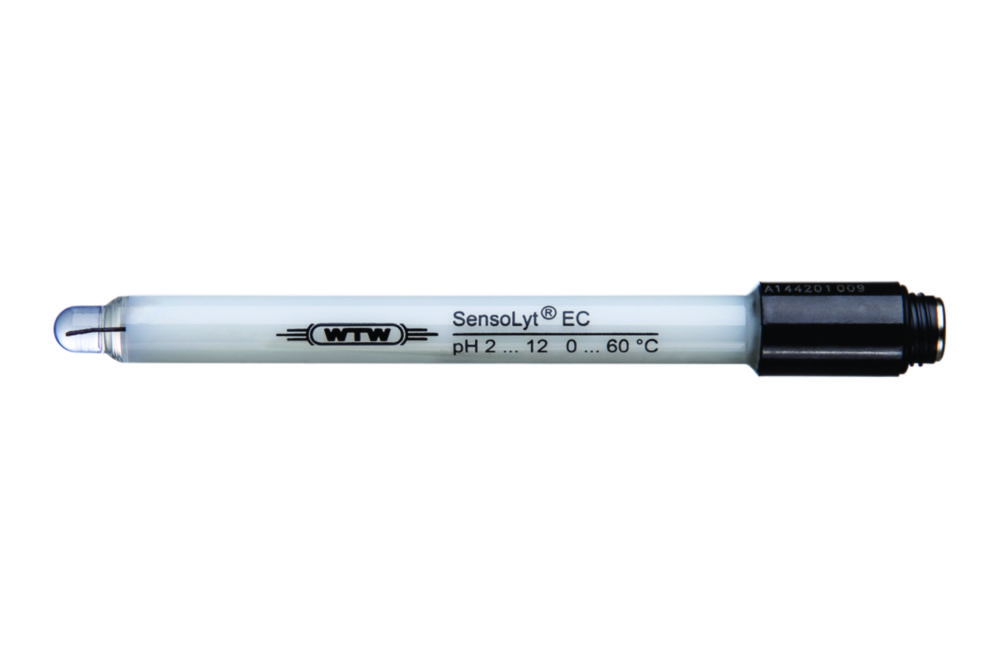

pH electrodes SensoLyt® ProcessLine
Electrodes for measuring pH for monitoring drinking water to waste water. For connection to analogue systems.
pH electrodes TopLine 80 / 81 / 83
pH combination electrode with PEEK shaft and labyrinth reference element (LoopRef). With 1 m fixed cable. TopLine 80-120 pH with coaxial plug-in head (cable combination LB 1A or LB 1BNC please order separately).

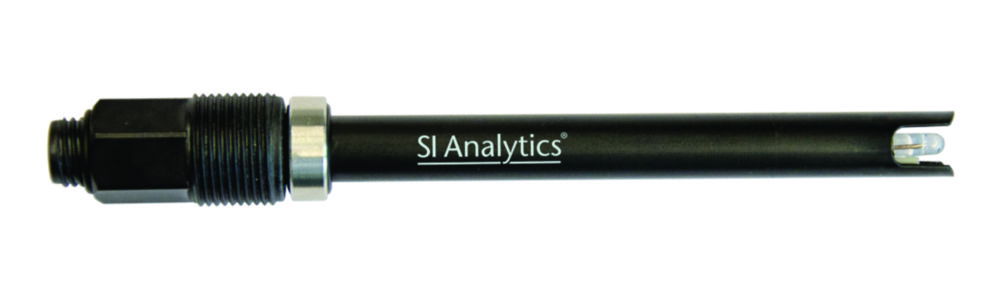

pH electrodes with armouring SensoLyt® ProcessLine
Combination electrodes with armouring for measuring pH for monitoring drinking water to waste water. The armouring allows the electrode to be inserted into the SensoLyt® 700 IQ pH fitting and thus operated at the IQ SENSOR NET. Pressure-resistant up to 10 bar at 20 °C
pH electrodes with liquid electrolyte
With glass shaft, Ag/AgCl reference system, filling port and plug head.Electrolyte: L 200

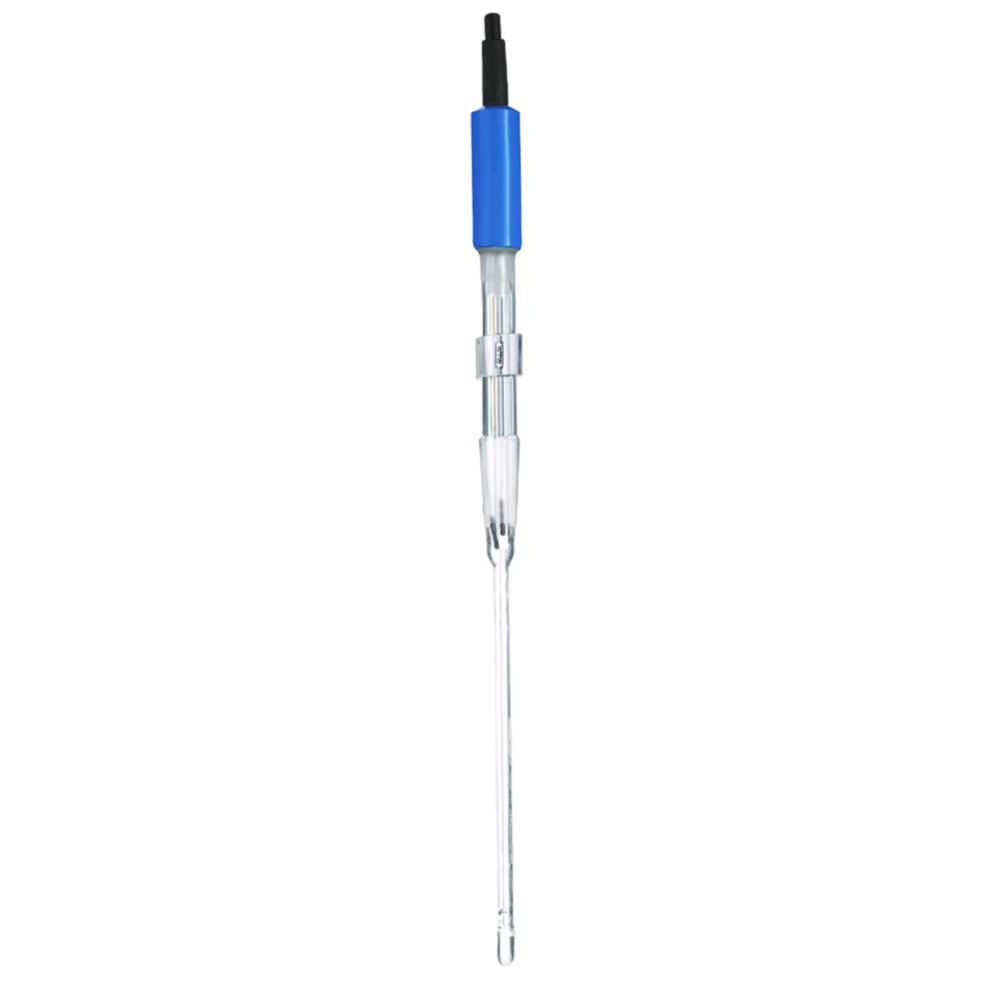

pH electrodes, SenTix® Mic, refillable
pH micro combination electrode glass shaft and liquid electrolyte. With plug head (AS/DIN or AS/BNC cable combination please order separately).Shaft length: 40/80 mmShaft Ø: 12/5 mm
pH electrodes, SenTix® Mic-D / Mic-B, refillable
pH micro combination electrode glass shaft and liquid electrolyte. With fixed cable (1m).

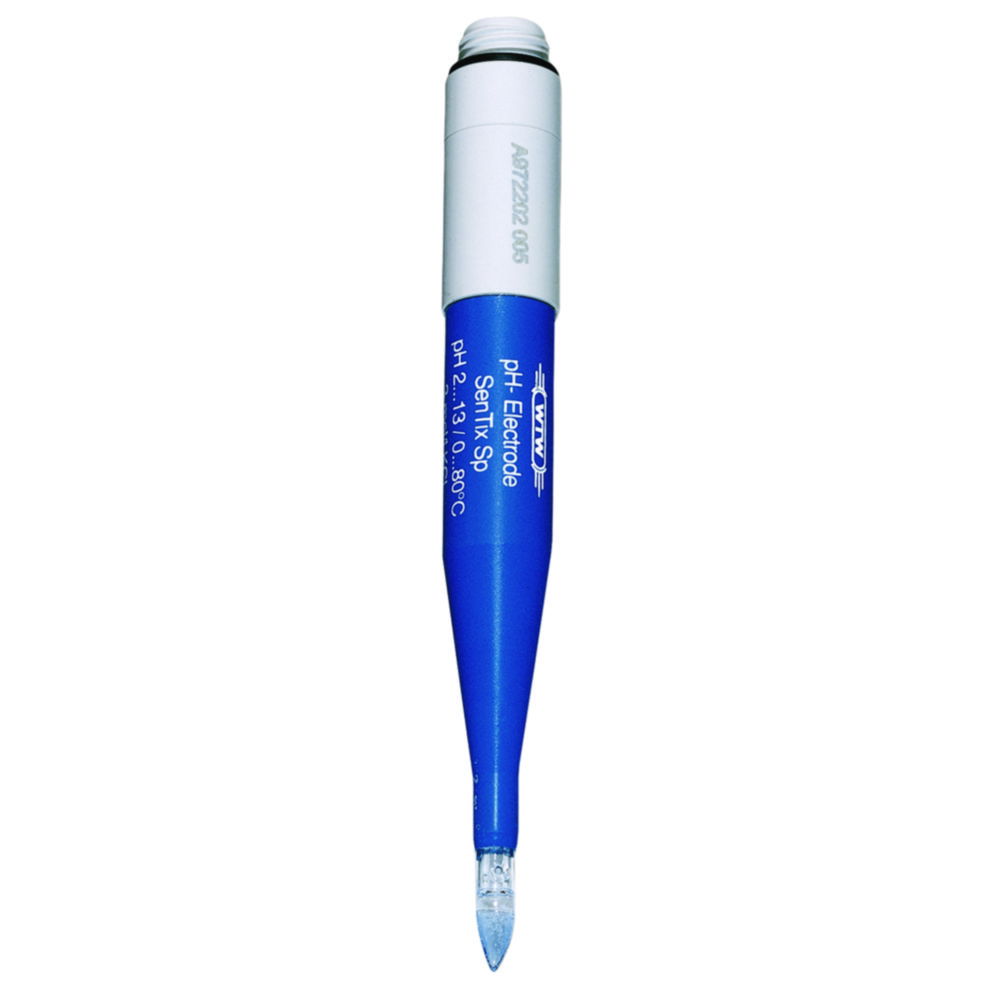

pH electrodes, SenTix® SP, not refillable
pH electrodes with plastic shaft and liquide electrolyte. SenTix® SP with plug head (AS/DIN or AS/BNC cable combination please order separately). For penetration measurements.Shaft length: 65/25 mmShaft Ø: 15/5 mm
pH electrodes, SenTix®, not refillable
pH electrodes with glass shaft and polymer electrolyte. With plug head (AS/DIN or AS/BNC cable combination (please order separately).For surface measurements.
pH puncture electrode LoT 406-M6-DXK-S7/25
Rugged puncture electrode for pH measurements in food industry, e.g. for direct measurements in meat, sausage and cheese. With polymer shaft and S7 plug.Please order cable separately.
pH reference electrodes InLab Reference
Reference electrode with ARGENTHAL™ reference system and S7 plug head.
