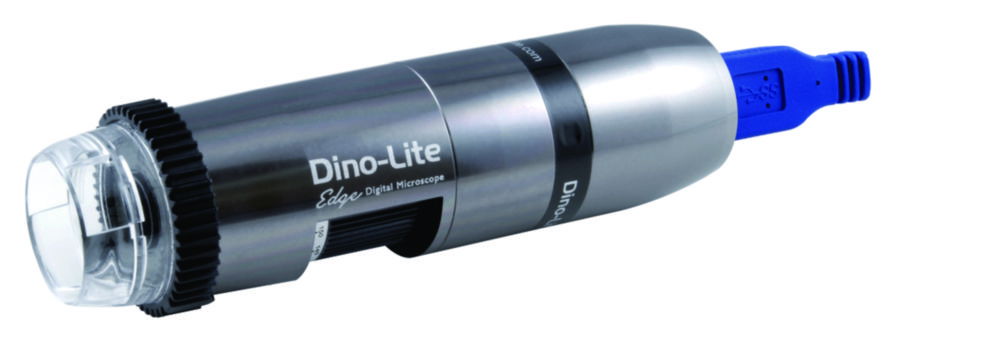

USB Hand held microscopes Dino-lite Edge 3.0

Product information "USB Hand held microscopes Dino-lite Edge 3.0"

The Dino-lite Edge 3.0 high-speed series with its USB 3.0 connection offers uncompressed transmission of images with high resolution and color accuracy. It achieves a maximum speed of 45 fps. The built-in polarizing filter make this models ideal for working with shiny or reflective objects such as metal, plastic, glass, jewelry, electronics, etc.
Special features such as Automated Magnification Reading (AMR) for making easy and accurate measurements or Extended Depth of Field (EDOF) for combining a series of images with different focus levels, are available on selected models.
  • USB 3.0, maximum 45 fps
  • 5 Megapixel Edge sensor
  • Extended Depth of Field (EDOF)
  • Extended Dynamic Range (EDR)
  • Automatic Magnification Reading (AMR)
  • Adjustable Polariser
  • Flexible-LED-Control (FLC)
  • Depth acquisition (DPQ)


Scope of supply: Carry pouch, USB cable, Software for Windows and Mac OS (not for EDOF, EDR models), open and closed cap, diffuser and side light cap, extension and long cap, calibration slide and manual.

Description: EDOF, EDR, AMR, FLC,DPQ
Light type: LED
Magnification: 10x ... 220x
Manufacturer Article Number: AM73915MZT
Resolution: 5 MP
Type: AM73915MZT
Working distance: 235 mm
