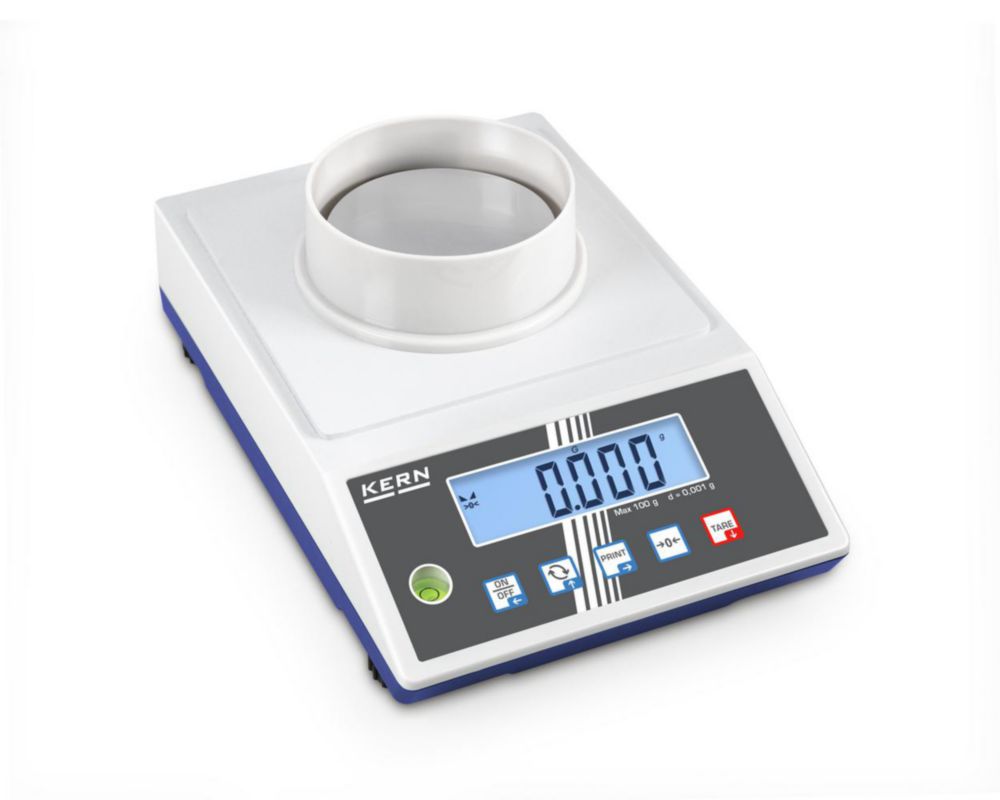

Precision balance PCB IoT-Line
Kern & Sohn GmbH
€0.00
Content: 1
Product number: 6325904
Product information "Precision balance PCB IoT-Line"
The integrated KERN Universal Port (KUP) allows the connection of external KUP interface adapters such as RS-232, USB, Bluetooth, WLAN, Analogue, Ethernet etc. The KUP interface adapters are simply plugged in, i.e. retrofitting interfaces is possible without opening the scale housing. The KERN Communication Protocol (KCP) permits searching and remote control of the balance using external control devices or computers.
Scope of supply:
Precision balance, protective working cover
- Backlit LCD display, digit height 21 mm
- PRE-TARE function
- Recipe function
- Weighing with tolerance range
- Freely programmable weighing unit
- Anti-Shock system
- AUTO-OFF function
- Battery operation possible (not included in scope of supply)
Scope of supply:
Precision balance, protective working cover
| Adjusting program: | External |
|---|---|
| Depth: | 245 mm |
| Depth weighing plate: | 82 mm |
| Dimensions (WxDxH): | 163 x 245 x 79 mm |
| Height: | 79 mm |
| Linearity: | ±0,005 g |
| Manufacturer Article Number: | PCB 200-3 |
| Max. load: | 200 g |
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| Plug type: | EU/CH/UK/US |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0,001 g |
| Reproducibility: | 0,001 g |
| Type: | PCB 200-3 |
| Type of auxiliary energy: | Battery/mains connection |
| UNSPSC: | 41111517 |
| Weighing plate (WxD): | Ø 82 mm |
| Width: | 163 mm |
| With draft shield: | Yes |
