Accessories set for drum pumps B2 Vario
Supplied with: Lutz nozzle, 1.5 m PVC hose 3/4", hose connection, hose clamps, wall bracket
Adapter set for Pump-it® container pump
Adapter set consisting of:2'' Coarse thread, Mauser, green2'' coarse thread, Tri-Sure®, brown2'' Fine thread steel drum, blueDIN 60, blackDIN 51, black
Anti-static set
When dispensing combustible/explosive liquids pump, both dispensing and filling drum involved in the process must be sufficiently earthed, in order to prevent ignition or explosion through electrostatic discharges. Antistatic set, includes three colour-coded connecting cables with clamps, supplied complete in plastic case.
Barrel pump, PTFE, with discharge hose
For ultrapure and aggressive liquidsMade of solid, pure white PTFE, giving an excellent chemical resistance to all media (with the exception of elemental fluorine)With stopcock to prevent the escape of harmful or hazardous liquids and unwanted dripsBarrel screw joints are availabe as accessories
Barrel pump, PTFE, with discharge tube
For ultrapure and aggressive liquidsMade of solid, pure white PTFE, giving an excellent chemical resistance to all media (with the exception of elemental fluorine)With stopcock to prevent the escape of harmful or hazardous liquids and unwanted dripsBarrel screw joints are availabe as accessories
Barrel pumps AccuOne
The drum pumps AccuOne and EnergyOne with hybrid system allow fast, flexible and convenient filling of small quantities. The AccuOne is equipped with a high-capacity rechargeable battery, the EnergyOne is operated with a power cable.The battery or power supply can be removed by means of a clip and replaced quickly and easily. This means that AccuOne can be used with the power supply and EnergyOne with the battery. The drive can also be easily separated from the pump unit with a clip closure. This makes it possible to fill from different containers at several stationary pumping stations with one drive, without changing media and without having to clean the immersion tubes. The lightweight and powerful drum pumps are manufactured from high quality PP, PTFE and Hastelloy C materials and offer excellent chemical resistance.Infinitely adjustable immersion depthTouch panel with dirt, water and dust-proof membrane keypadAuto-stop function before deep dischargeScope of supply: Pumping station, drive, Li-ion rechargeable battery, charger with plug, plug adapter, fixed discharge bend
Barrel pumps EnergyOne
The drum pumps AccuOne and EnergyOne with hybrid system allow fast, flexible and convenient filling of small quantities. The AccuOne is equipped with a high-capacity rechargeable battery, the EnergyOne is operated with a power cable.The battery or power supply can be removed by means of a clip and replaced quickly and easily. This means that AccuOne can be used with the power supply and EnergyOne with the battery. The drive can also be easily separated from the pump unit with a clip closure. This makes it possible to fill from different containers at several stationary pumping stations with one drive, without changing media and without having to clean the immersion tubes. The lightweight and powerful drum pumps are manufactured from high quality PP, PTFE and Hastelloy C materials and offer excellent chemical resistance.Infinitely adjustable immersion depthtouch panel with dirt, water and dust-proof membrane keypadScope of supply: Pumping station, drive, power supply unit with plug, 3 x plug adapter, fixed discharge bend
Barrel pumps, PP, with flexible, PVC dispensing hose and stopcock
For decanting acids, caustic solutions and aggressive detergentsExcellent recovery of residual liquid in the barrel provided by base-sitting, non-return valve and steplessly adjustable immersion tubeFor barrels and tanks from 30 to 1000 l
Barrel pumps, PP, with rigid, angled, dispensing nozzle
For decanting acids, caustic solutions and aggressive detergentsExcellent recovery of residual liquid in the barrel provided by base-sitting, non-return valve and steplessly adjustable immersion tubeFor barrels and tanks from 30 to 1000 l
Barrel pumps, stainless steel, flexible tubing with stopcock
Stainless steel V2A and PTFE.For safe dispensing of liquids with a low flash point . Electrostatic charge can be dissipated through accessories antistatic set and drum screwthread connection. Not suitable for acetone.
Barrel pumps, stainless steel, with rigid dispensing tube
Stainless steel V2A and PTFE.For safe dispensing of liquids with a low flash point . Electrostatic charge can be dissipated through accessories antistatic set and drum screwthread connection. Not suitable for acetone.

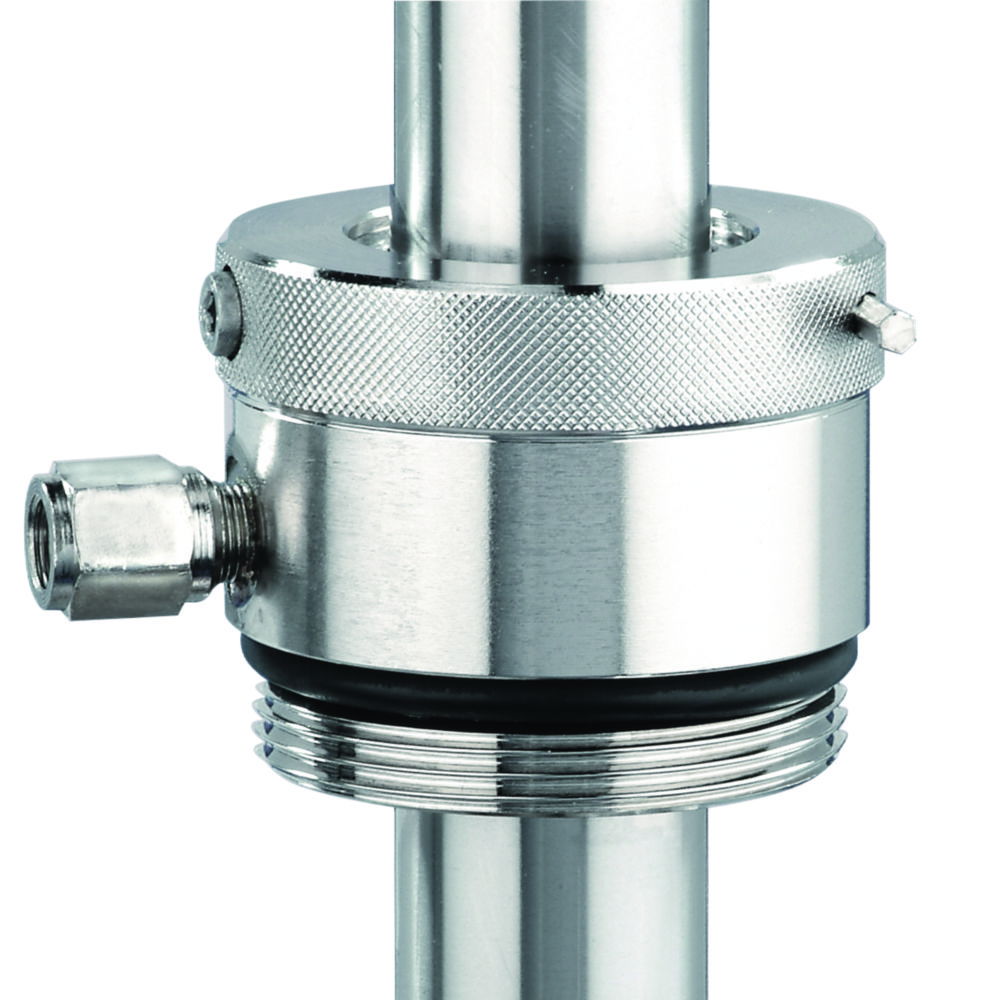

Barrel screw joints for stainless steel drum pumps
Nickel-plated brass. G 2" steel fine outer thread.
Conveying pipes, PE
For OTAL® disposable pump, Ø 12 mm, immersion depth 900 mm.

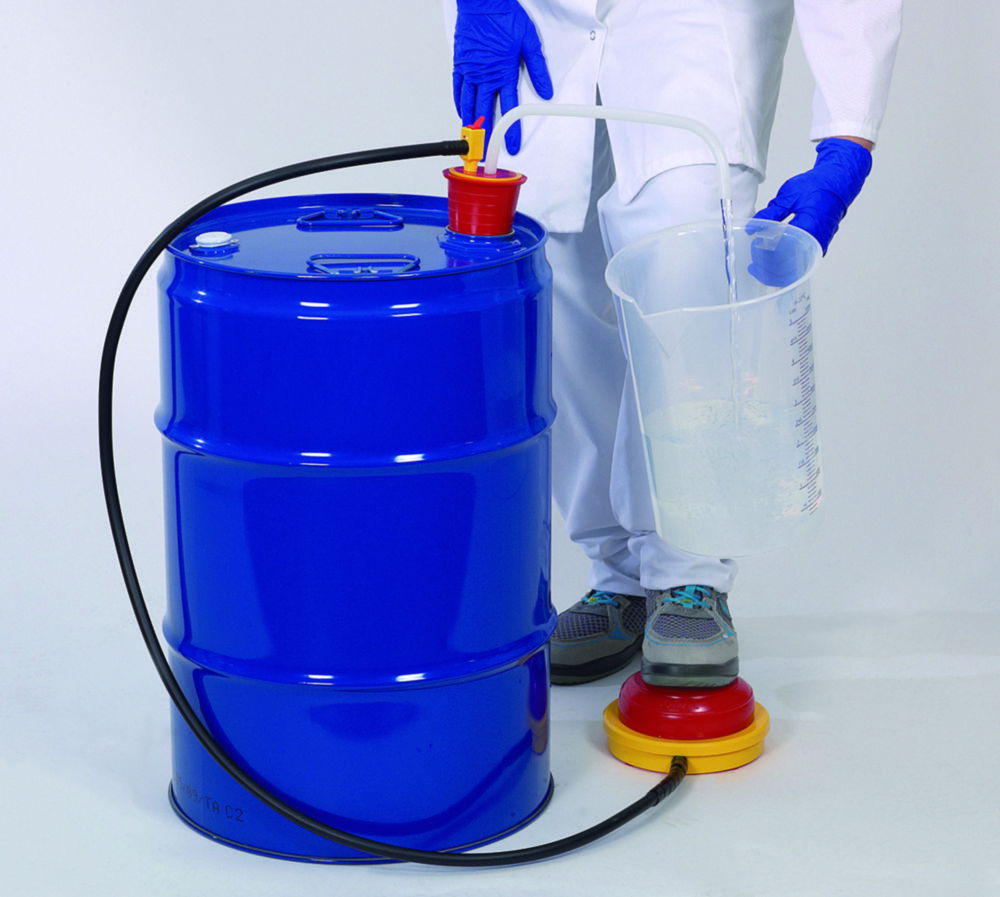

Disposable foot pumps OTAL®, with PE conveying pipes
Space-saving container pump for single use. The medium to be filled only comes into contact with the conveying pipe. The conveying pipe is made of one piece and can easily be shortened to the respective container height with the supplied cutter for good residual emptying. The disposable conveying pipe can be replaced quickly and easily after use.Scope of supply: Pump ball, universal plug made of soft PVC for container openings of 30 - 70 mm Ø, cutter and 10 disposable conveying pipes
Disposable hand pumps OTAL®, with PE conveying pipes
Space-saving container pump for single use. The medium to be filled only comes into contact with the conveying pipe. The conveying pipe is made of one piece and can easily be shortened to the respective container height with the supplied cutter for good residual emptying. The disposable conveying pipe can be replaced quickly and easily after use.Scope of supply: Pump ball, universal plug made of soft PVC for container openings of 30 - 70 mm Ø, cutter and 10 disposable conveying pipes

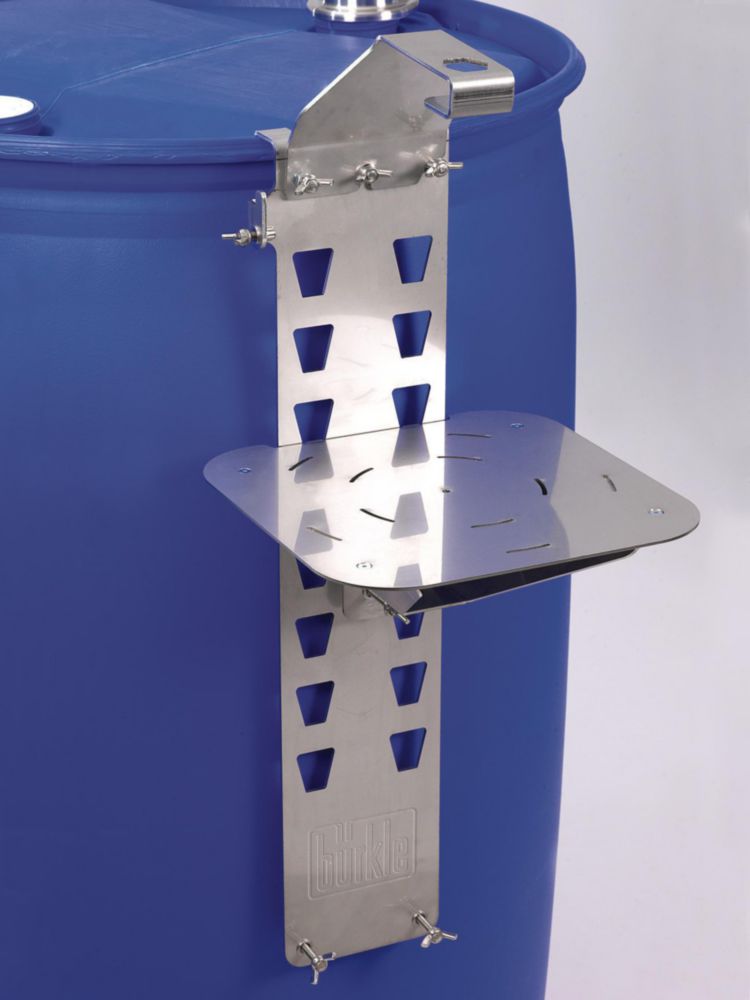

Drum holder, stainless steel
The storage area of the drum holder can be adjusted for height and provides a place for setting down the filling container directly under the discharge of drum pumps. A scale with container can also be placed on the storage area so the liquid that is being dispensed can be measured accurately. The holder can be used for pumps with discharge tube and discharge hose.For drums with 60 to 220 lSize storage area: 240 x 240 mmLoad capacity: 10 kg

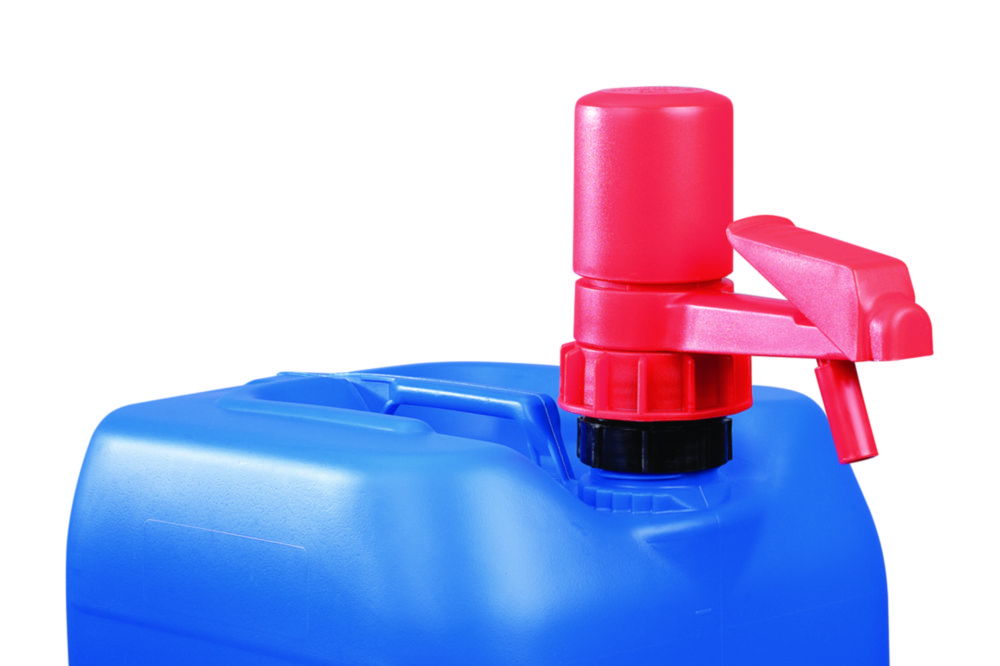

Drum pump Pump-it®
For rapid and clean emptying from cans, drums and small barrels up to 60 l.Medium-contacting parts made of PP, PE and FKMPrecise dosing, without drippingPump connection suitable for 64 mm dia. (BSI) container threadsStepless length adjustment of immersion tubeThreaded adapters for most commercially-sold containers availableNot suitable for HCl
Drum pump PumpMaster, for acids and chemical liquids
The manual pressure pump is ideally suited for drawing off, decanting and emptying canisters and barrels. The hand pump is used to create excess pressure that forces the liquid out of the container. The stopcock also allows extraction of small quantities of liquid. The PumpMaster container pump is mounted on the container using a flexible stopper with a variable and adjustable diameter. No special thread adapters are required. PumpMaster fits all commercial container openings with a diameter from 46.5 mm to 60 mm. The immersion tube has a length of 95 cm and it can be shortened depending on the size of the container.Green. FKM gasket.Scope of supply: Drum pump, three bungs in different sizes
