Accessories for Kjeldahl rapid sample digestors
behrotest® standard digestion vessels have standard dimensions. That means they fit into digestion and distillation units of most brands. Of course, it also means that standard digestion vessels of most brands can be used with behr distillation units.
behrosog 3 Scrubber
Infinitely variable throughputTransparent protective shield for safe operation of the unitExterior manual control elements with easy access prevent the analyst from touching hot glass partsAcid resistant diaphragm pump
Catalyst tablets Kjeltabs
Environmentally hazardous substance, N.O.S., UN 3077, 9, III, (E).
Compact system KCM 1-N with magnetic stirrer for cyanide distillation
Excellent recovery rates even with difficult sample matrices in water and soil analysis: Simultaneous heating and stirring with the compact distillation apparatuses with magnetic stirrer for cyanide determination. With integral magnetic stirrer, suspended absorption vessel, and dropping funnel for reagent additions, the installation corresponds with the draft document for the new DIN/EN/ISO methods. The special behr absorption container with exact behr bore guarantees the full absorption of cyanide and full rinsing into the measurement flask.Exact flowmeter ensures the air pressure defined in the normWith base stand, heating mantle, magnetic stirrer, flow meter, clamps, tubing, and glasswareFor the determination of total cyanideIncluding high-performance membrane vacuum pump
Complete Cyanide Distillation Unit, 6 Sample Places
Professional sample preparation for cyanide determination in aqueous and soil samples with six sample positions: Simultaneous heating and stirring guarantee a high recovery rate and exact analysis results.Efficient unit with six sample places for the distillation of total cyanide. Precision heating block with highly accurate temperature control. The integrated magnetic stirrer makes the CN 6 appropriate for cyanide determination in water according to international standards. Accessories available for the distillation of total cyanide in soils according to ISO 11262:2011 - Soil quality. Determination of total cyanide.

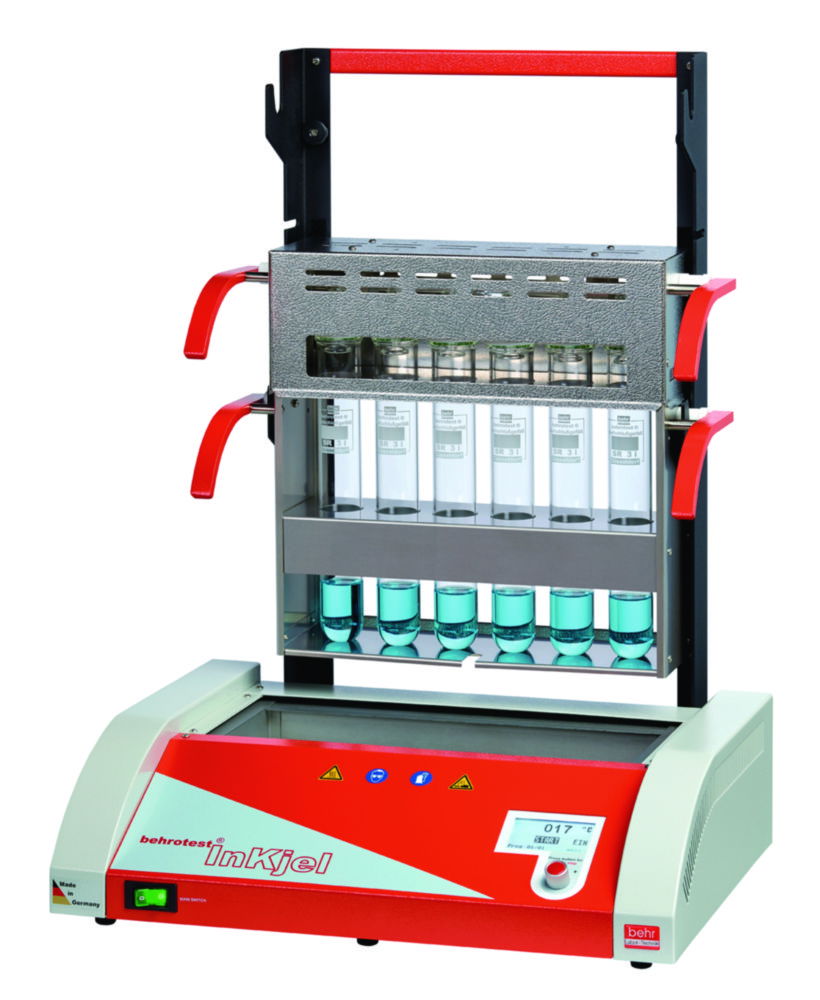

Infrared rapid digestion system with temperature control
The temperature-controlled InKjel TC-series devices combine the advantages of infrared and block digestion in one system: Fast Infrared digestion at defined temperatures ensures high sample throughput.In the programmable version InKjel TCP, the user has a choice of 25 freely configurable programs for temperature and digestion time.The high-quality quartz infrared heaters of InKjel TC reach 830 ° C in a minute and achieve uniform heating at all sample positions.

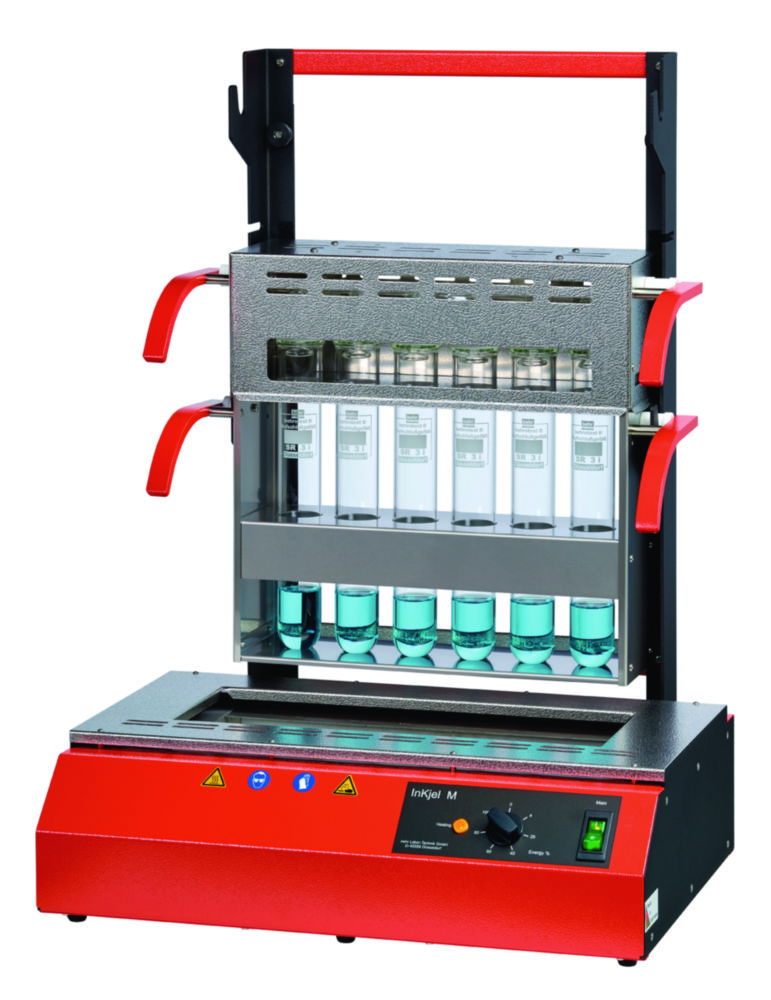

InKjel M manually adjustable infrared digestion system
Rapid digestion system with manually adjustable energy control and direct heating of the samples through high-quality quartz radiators (1500W).Quartz infra-red radiators peak at 830°C within 1 min.Particularly uniform heating at all sample positionsAll InKjel systems are fitted completely with multi-level consoles, fume extraction unit, sample rack and glass digestion vessels.Configurations available:6 sample vessels each 250ml12 sample vessels each 100ml12 sample vessels each 250ml4 sample vessels each 500ml4 sample vessels each 750ml
InKjel P infrared digestion system with 10 freely configurable programmes
Rapid digestion system with 25 freely configurable programmes for power and digestion time and direct heating of the samples through high-quality quartz radiators (1500W).Quartz infra-red radiators peak at 830°C within 1 min.Particularly uniform heating at all sample positionsAll InKjel systems are fitted completely with multi-level consoles, fume extraction unit, sample rack and glass digestion vessels.Configurations available:6 sample vessels each 250ml12 sample vessels each 100ml12 sample vessels each 250ml4 sample vessels each 500ml4 sample vessels each 750ml

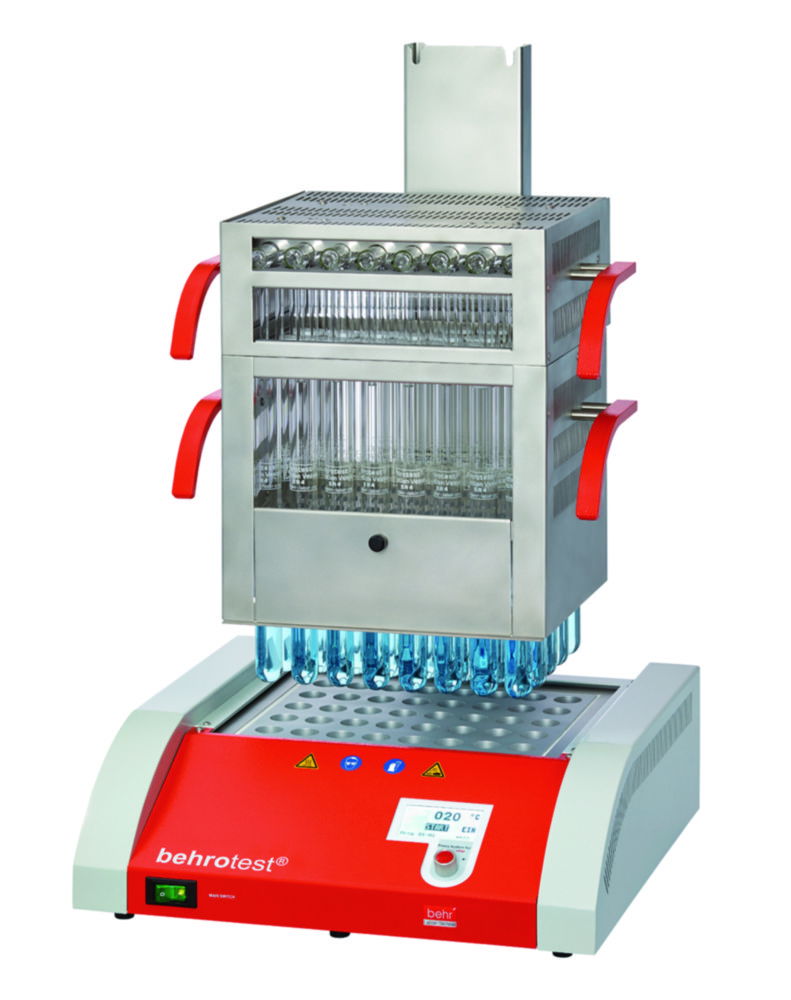

Micro Kjeldahl block digestion systems K 16, K 24 and K 40
Block digestion systems with high-quality corrosion-resistant block housing made of stainless steel. With 16, 24 or 40 sample slots for micro Kjeldahl digestion vessels with a volume of 100 ml. High-efficiency heating and extraction hood with exhaust collector.behr single-knob control for particularly easy and fast programming.Menu navigation in national language.25 freely configurable programs for block temperature and digestion time.Applications can be saved.USB interface.The removable inspection door on the insertion rack enables the progress of the digestion to be observed.Complete systems with digestion vessels, rack and extraction hood.

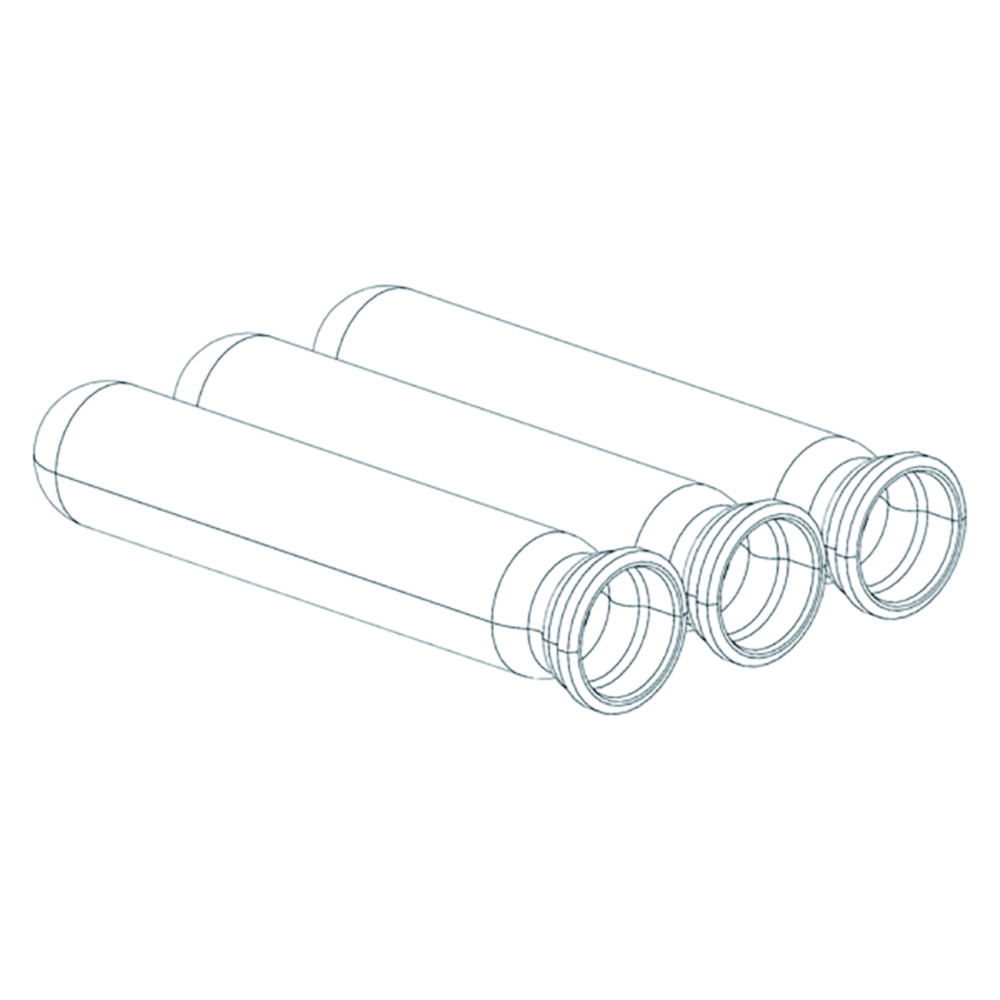

Sample Glass 300 ml
For sample volumes up to 200 ml in volume or 5 g in weight.

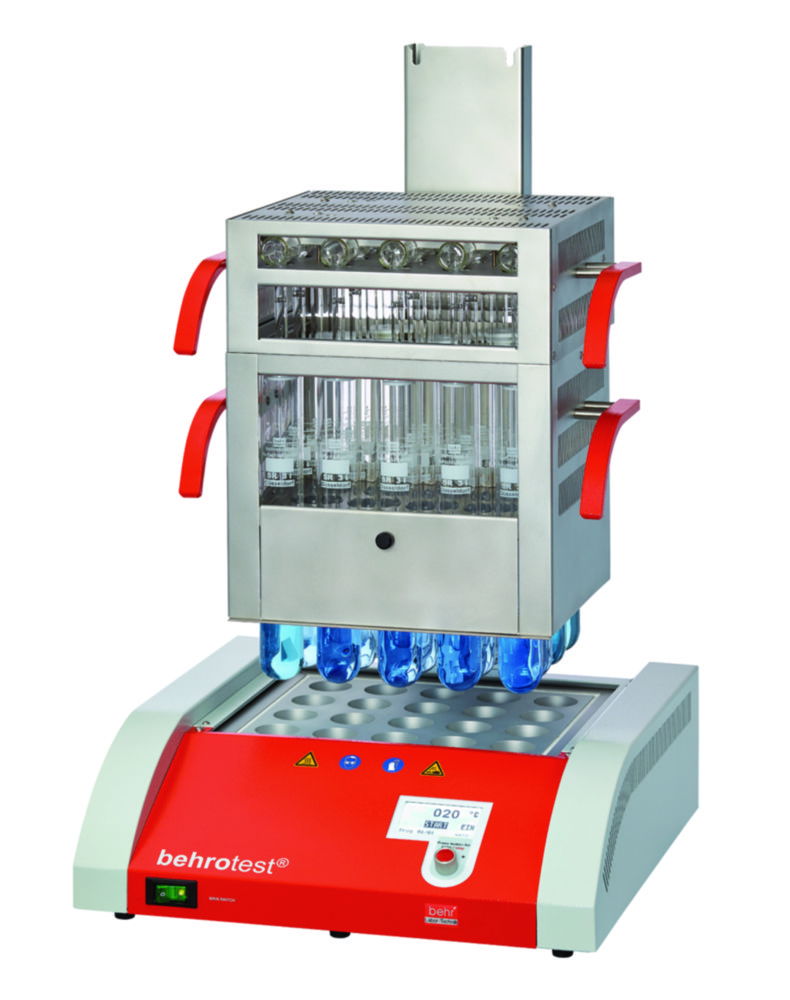

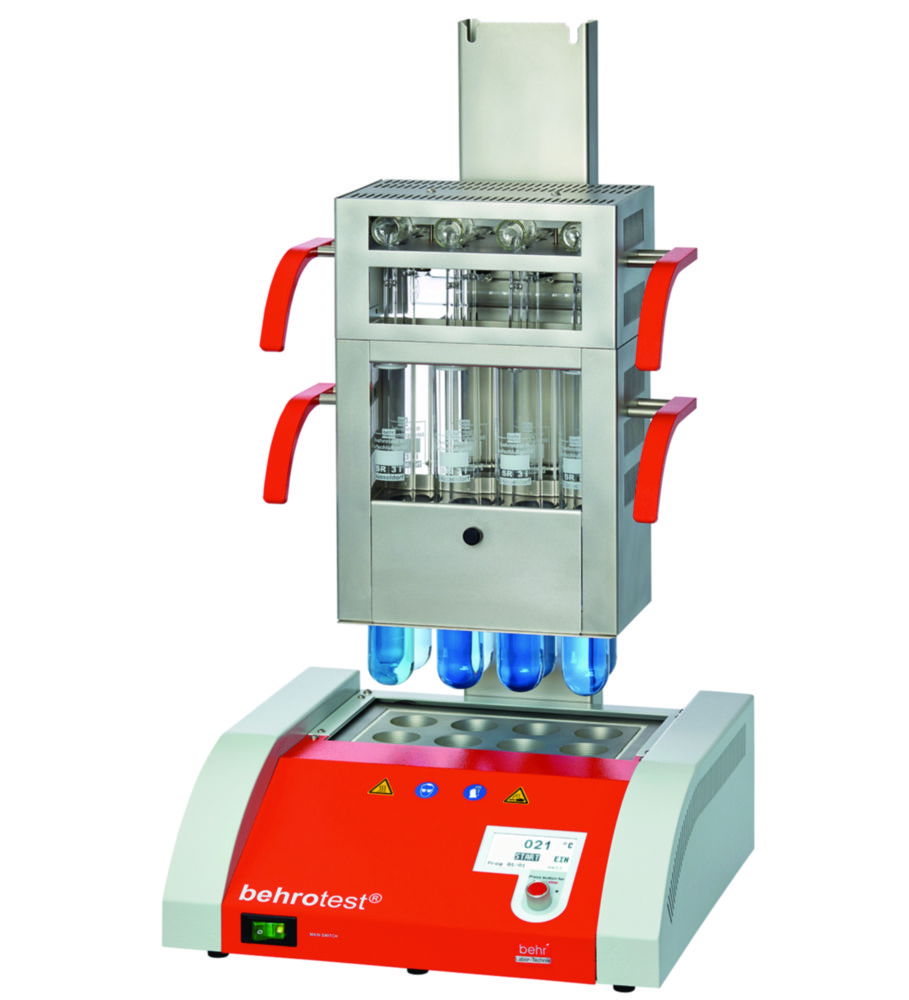

Standard Kjeldahl block digestion systems K 8, K 12 and K 20
Block digestion systems for standard Kjeldahl digestion vessels with a volume of 250mlHigh performance heating and fume exhaust by means of a fume manifold. 25, freely configurable, programmes for block temperature and digestion time. Stable and robust construction. Basic stand for digestion vessels and exhausing hood are made from acid-resistant, stainless steel.
Standard Kjeldahl block digestion systems K 8, K 12 and K 20
Block digestion systems with high-quality corrosion-resistant block housing made of stainless steel. With 8, 12 or 20 sample slots for standard Kjeldahl digestion vessels with a volume of 250 ml. High-efficiency heating and extraction hood with exhaust collector.behr single-knob control for particularly easy and fast programming.Menu navigation in national language.25 freely configurable programs for block temperature and digestion time.Applications can be saved.USB interface.The removable inspection door on the insertion rack enables the progress of the digestion to be observed.Complete systems with digestion vessels, rack and extraction hood.
Steam distillation unit D1 and D2
AlcoholVolatile acid contentsFermentation process (beer, etc.)Ammonium chloride in liquorice productsDistillation units for determining alcohol and volatile acid content in wine and other alcoholic drinks. Complete glassware, with volumetric flasks and pycnometer. Because of its rapidity, the behr D 1 and D 2 are especially suitable for high sample throughputs.

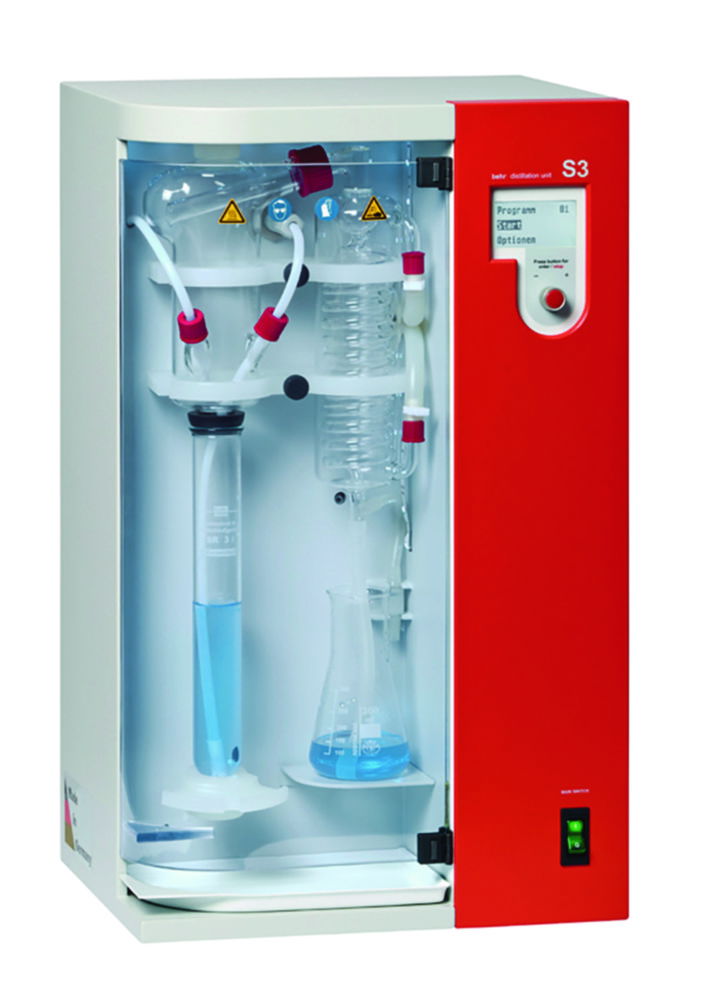

Steam Distillation Unit S
Exemplary safety and reliabilityRobust casing of polyurethaneDistillation time approx.. 3 mins. per sampleDetection limit 0.1 mg NRecovery rate >99.5%Reproducibility ± 1%Steam generating capacity adjustable from 10% - 100%Extremely simple, menu-controlled operation of the programmable units via one single operating element (behr one-button operation)Programmable reaction timeSerial interface (RS232)Filling level monitoring for can setPractical quick clamping device equally suited for the "left-handed" analyst
