Cleanroom Racks
Cleanroom racks consisting of base frame and welded in shelves.Material stainless steel (1.4301 / AISI 304)Functional surfaces in KEK-FinishBase frame made of square tubeupper ends closed with plastic capsFloor leveling with disc feets made of CNS (+/- 10 mm)Shelves, folded on all sidesfirmly weldedsmooth surfacefor perforated version: Dimension punching ø 10 mm in 15 x 15 mm grid to support the laminar flow of airdepending on design and dimensions stabilized by reinforcement
Cleanroom Tables with a Smooth Worktop
Clean room worktable consisting of worktop and underframeMaterial stainless steel (1.4301 / AISI 304)Table top made of 1.5 mm thick stainless steel42 mm bevelled on all sides, 12 mm of which 15 ° after folded inside Functional surfaces in KEK-Finish smooth surface depending on design and dimensions stabilized by reinforcementBase frame made of square tubesGround floor with smooth surface firmly weldedFloor leveling
Cleanroom Tables with Perforated Worktop
Clean room worktable consisting of worktop and underframeMaterial stainless steel (1.4301 / AISI 304)Table top made of 1.5 mm thick stainless steel 42 mm bevelled on all sides, 12 mm of which 15 ° after folded inside Functional surfaces in KEK-Finish Dimension punching (ø10 mm in the grid 15 x 15 mm) to support the laminar flow of air depending on design and dimensions stabilized by reinforcementBase frame made of square tubesGround floor with perforated surface dimension punching (ø10 mm in the grid 15 x 15 mm) firmly weldedFloor leveling
Cleanroom Transport Trolley
Material stainless steel (1.4301 / AISI 304)Functional surfaces in KEK-FinishShelves with a smooth surface or shelves with punched holes (ø 10 mm in 15 x 15 mm grid) to support the laminar flow of airFirmly weldedStabilized by reinforcement depending on design and dimensionsSquare profiles closed at the top with plastic caps4 castors electrically conductive, 2 of them lockable
Dispenser box
Material stainless steel (1.4301 / AISI 304)Functional surfaces in KEK-FinishTo dispense ofdisposable items (hoods, gloves, etc.)1 - 4 boxesHinged lid with bow handle for fillingViewing slots on the front to monitor the filling levelEmbossed removal openingRemovable drip tray arranged under the removal opening2 mounting holes on the back for wall mounting

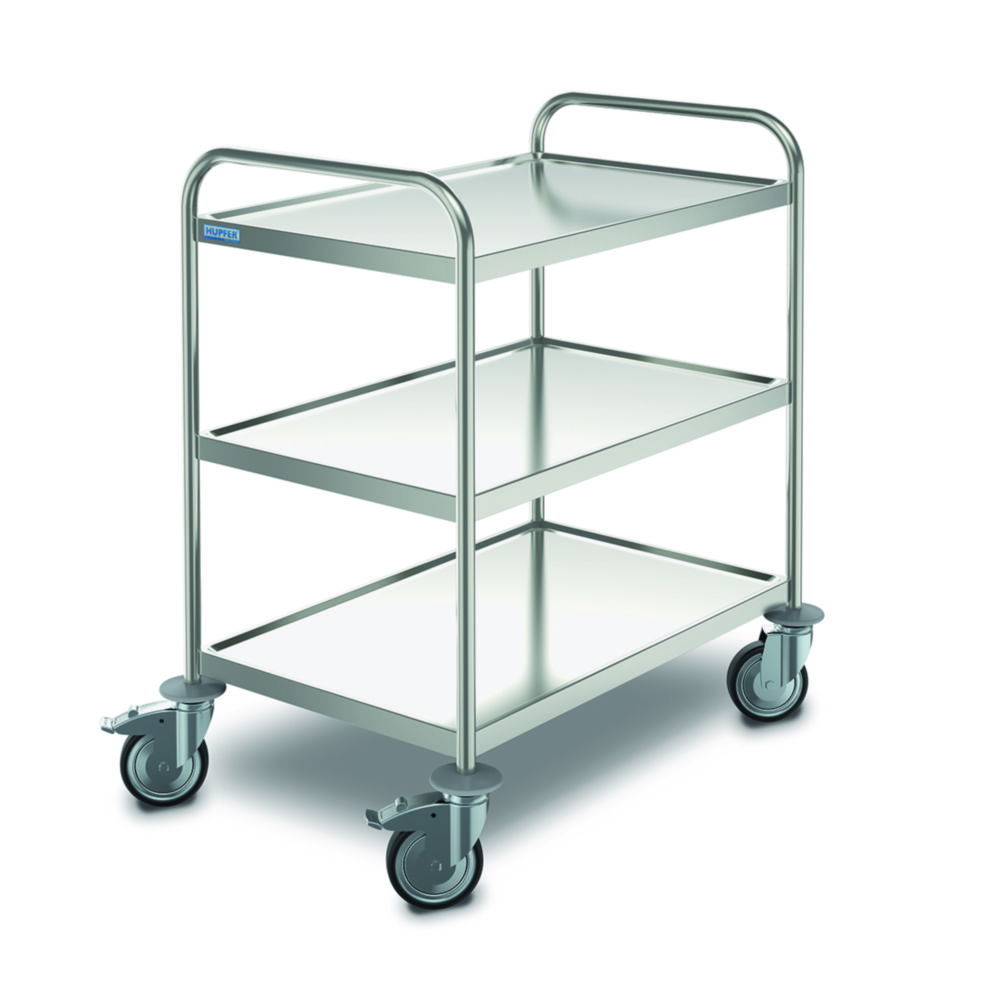

Transport Trolley, stainless steel
Transport trolley made of stainless steel. Rugged construction made from two tubular steel bar push handles, Ø 25 mm with welded deep drawn shelves with elevated perimeter flange inbetween. Shelves are bevelled by 35 mm all over, with flat safety return to the inside. Chassis with 4 swivel castors, 2 of them with brake, Ø 125 mm, antistatic. Massive plastic bumper protect against damage.SpecificationsMax. load per shelf:40 kgShelf dimensions:800 x 500 mmExternal dimensions (W x D x H):895 x 595 x 950 mm
