ChromaJet DS 20
Trace accurate spraying - economical and environment-friendly. ChromaJet DS 20 microprocessor-controlled, automatic spray chamber produces a high precision spray jet for use on thin-layer chromatography plates. Offers a choice of spray settings with memory storage for repeat use. Reagent consumption is greatly reduced. The spray programme is managed via control and editing software.Dimensions:440 x 405 x 275 mmSupply requirements:230 V 50/60 Hz
Chromatography sprayer SG e1
Spraying with powerful and quiet pump.The finest spray is produced even when the battery power is low. Liquids, up to the viscosity of light oil, can be finely sprayed at the touch of a button. Particle diameter 5µm to 10µm with a throughput of 20ml/min. based on water. The reservoir bottle for the spray reagent is made of borosilicate glass. The bottle is screwed into the high-grade PTFE nozzle and can be changed in seconds. With quick-charging dock as a storage base. Overload protection enables continuous storage of the sprayer in the charging station. Supplied with battery, battery charger, bottle and nozzle.
Special atomiser, with rubber blowball
With rubber blowball for nebulising reagents. Can be connected to other compressed air supplies.

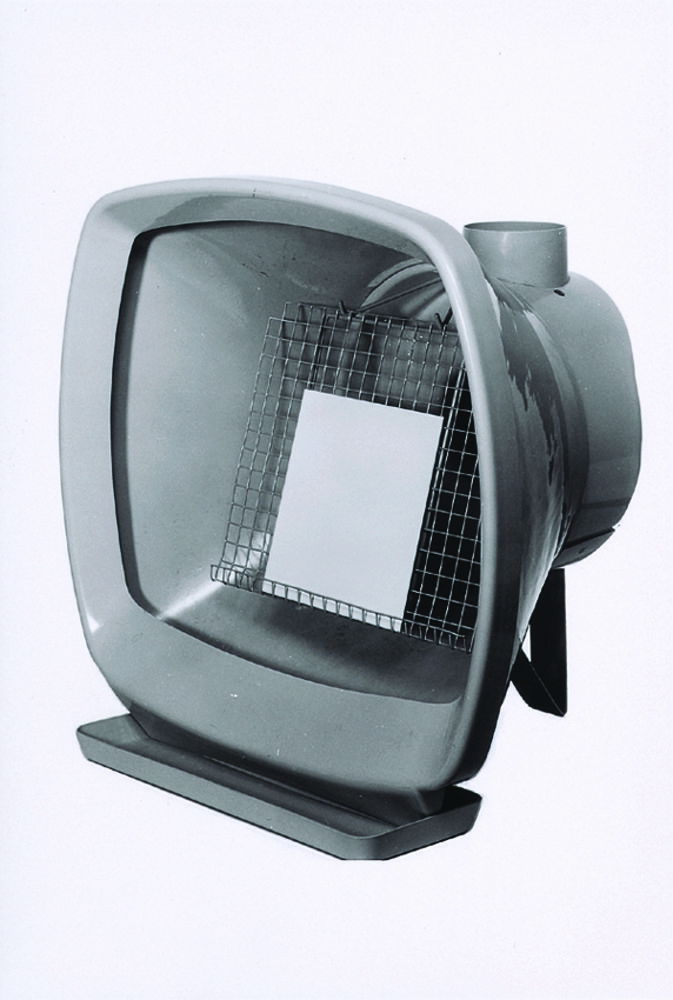

Spray box with fan
For spraying TLC plates with aggressive media. Housing made of acid-resistant PVC for plates up to 200 x 200 mm. Low-noise extraction fan supplies 400 m³/h. The exhaust tube leads upwards and can be connected to NW 100 extraction tubing. Reagent droplets are collected in a separate drip tray. Size (W x D x H) 620 x 610 x 580 mm.

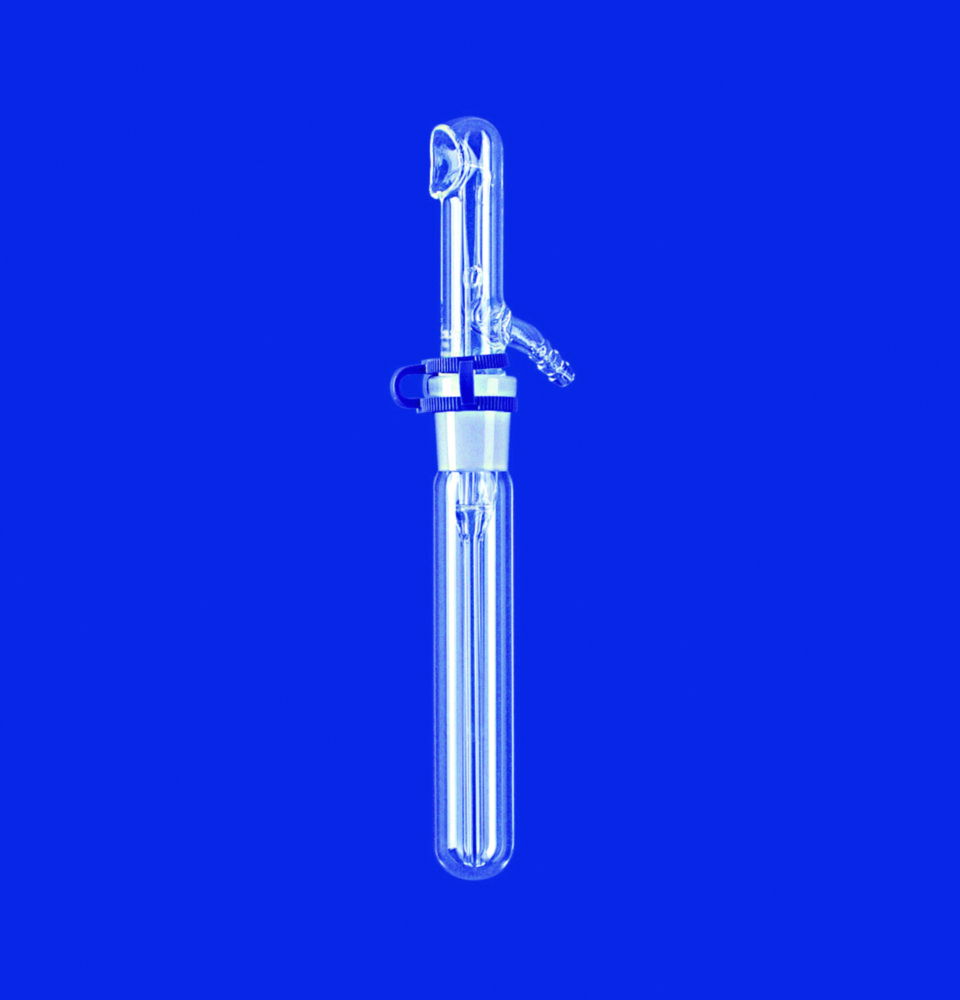

Test tube atomiser, glass
Glass atomiser for nebulising small amounts of reagents. Atomiser can be inserted in a 12ml test tube with a ground joint and held in position with a spring clip.

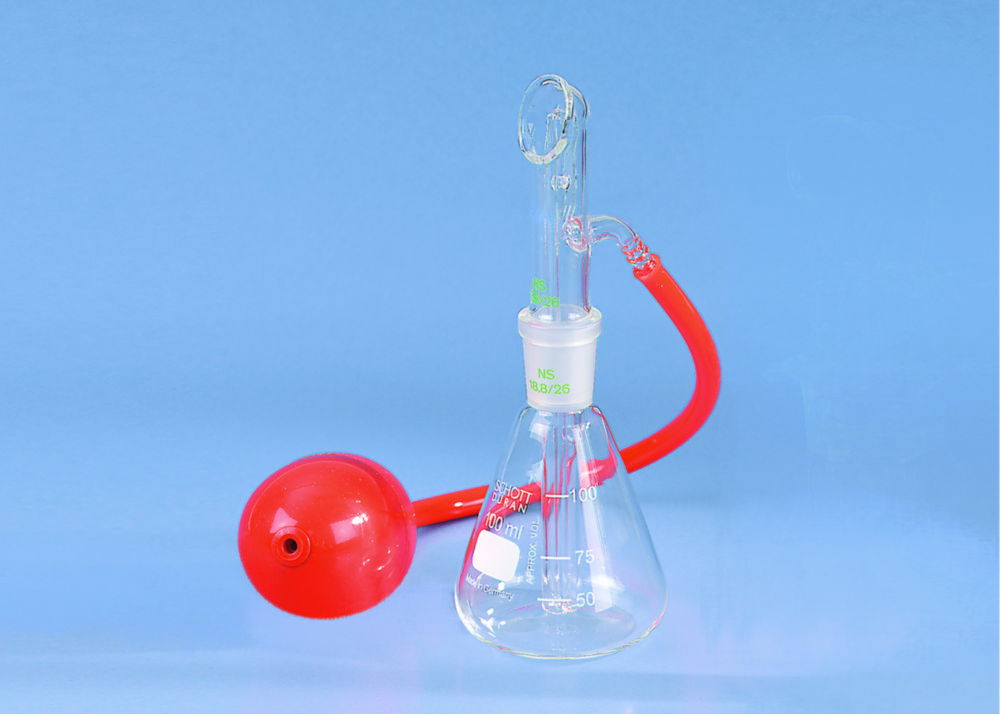

Test tube sprayers, DURAN® - tubing
Made of DURAN® - tubing. Consists of a test tube with NS 14/23 or 19/26 joint neck, sprayer head, clamp and rubber bulb.
TLC sprayer
Versatile sprayer with gas cartridge for spraying reagents and other liquids. Spray pressure: constant 4.4 bar. Eco-friendly propellant mixture of dimethyl ether, propane and isobutane. Sufficient for approx. 500 ml of liquid.Easy to clean: unscrew cartridge, immerse uptake into vessel containing cleaning fluid and spray until the spray is free of residues.Propellants: dimethyl ether, isobutane, propane.

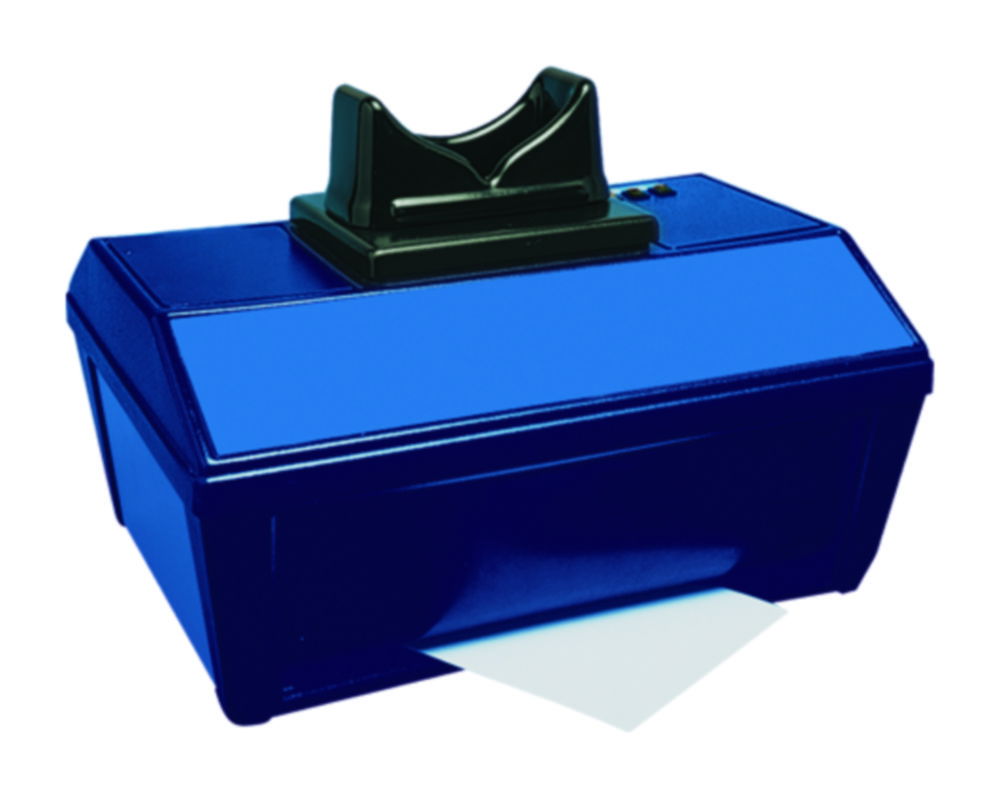

TLC Viewing cabinets
Model CN-6:For one or two UV hand lamps model BVL-6; choice of combined wavelengths 254 nm, 312 nm and 365 nmCabinet dimensions (W x D x H): 300 mm x 280 mm x 240 mmModel CN-15:Integral high intensity UV lamps, extra large capacity; easy access also for large samples; white-light bulb for normal observationRemovable bottom panelCabinet dimensions (W x D x H): 505 mm x 415 mm x 280 mm* Other models available on request.

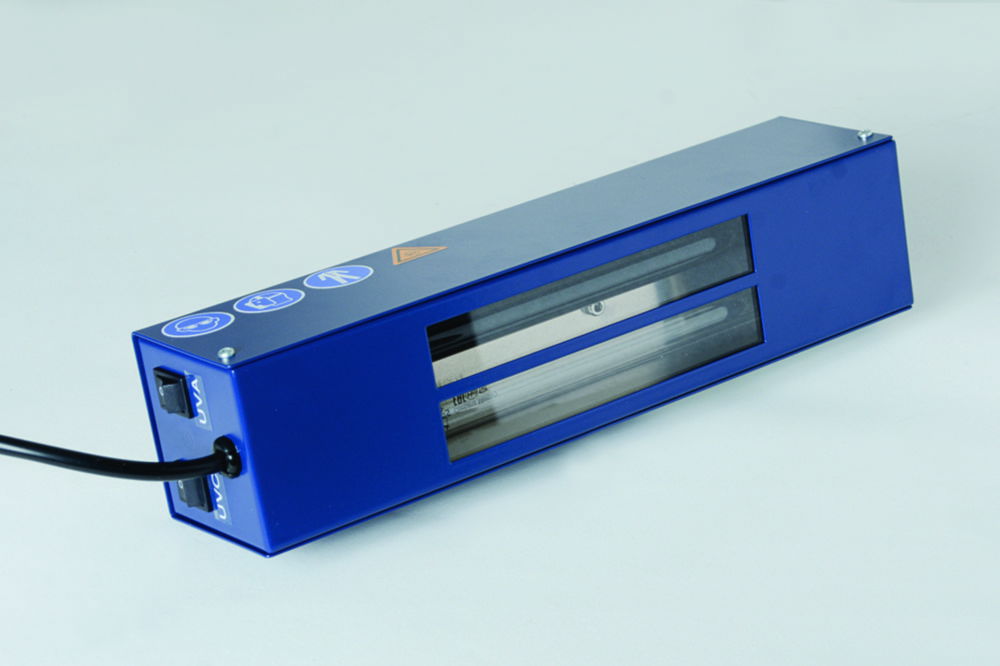

UV analysis lamp
Analysis lamp with two separately switchable UV tubes of high radiation intensity. The UVA tube produces long-wave radiation at 365 nm and the UVC tube short-wave radiation at 254 nm. Ideal for chemical-analytical applications and for hygiene monitoring.Please order table stand separately.

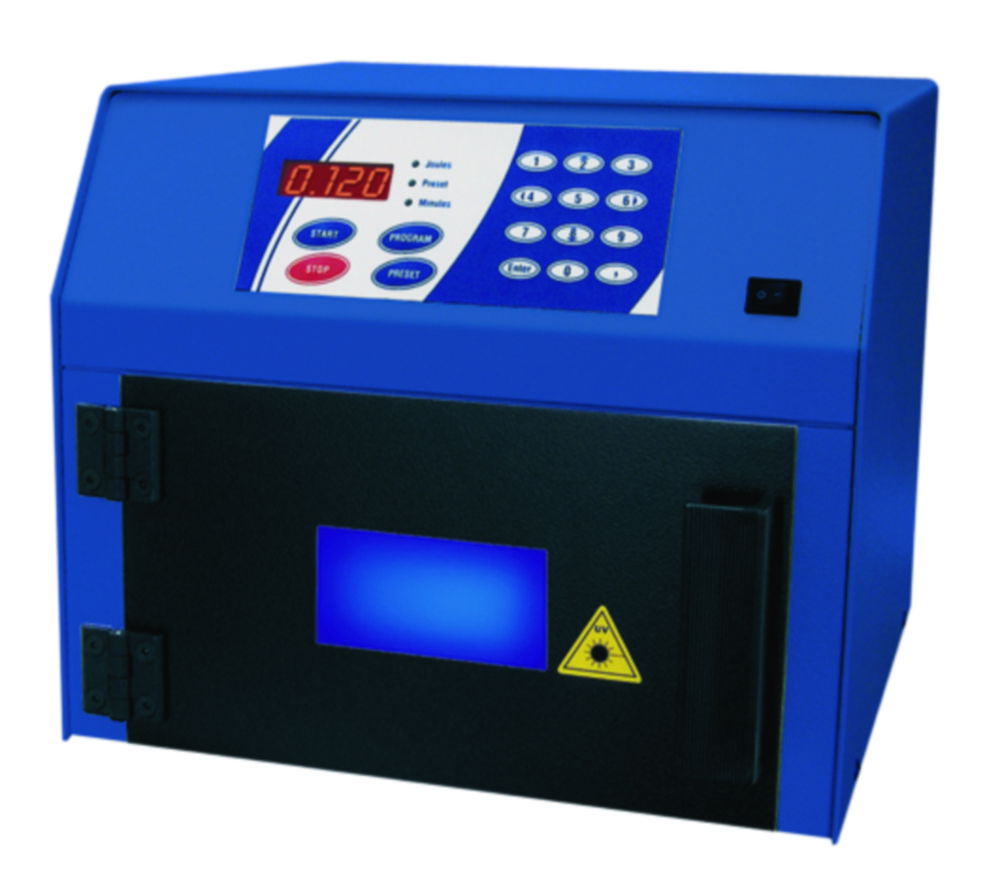

UV Crosslinker CL-508
The UV Crosslinker is a UV irradiation system for versatile applications in the field of molecular biology, such as fixing nucleic acids on membranes and removing PCR contamination.Spacious stainless steel exposure chamberProgrammable microprocessor control9 preset programmes for UV dose and exposure timeLED display and membrane keypadViewing window with UV protectionSafety interlockLight source:5 x 8 W bulbEnergy:0 ... 9.999 J or 0 ... 99.99 JTimer:0 ... 999.9 minInternal dimensions (W x D x H):260 x 330 x 145 mmExternal dimensions (W x D x H):350 x 360 x 305 mmWeight:10 kgPower supply:240 V

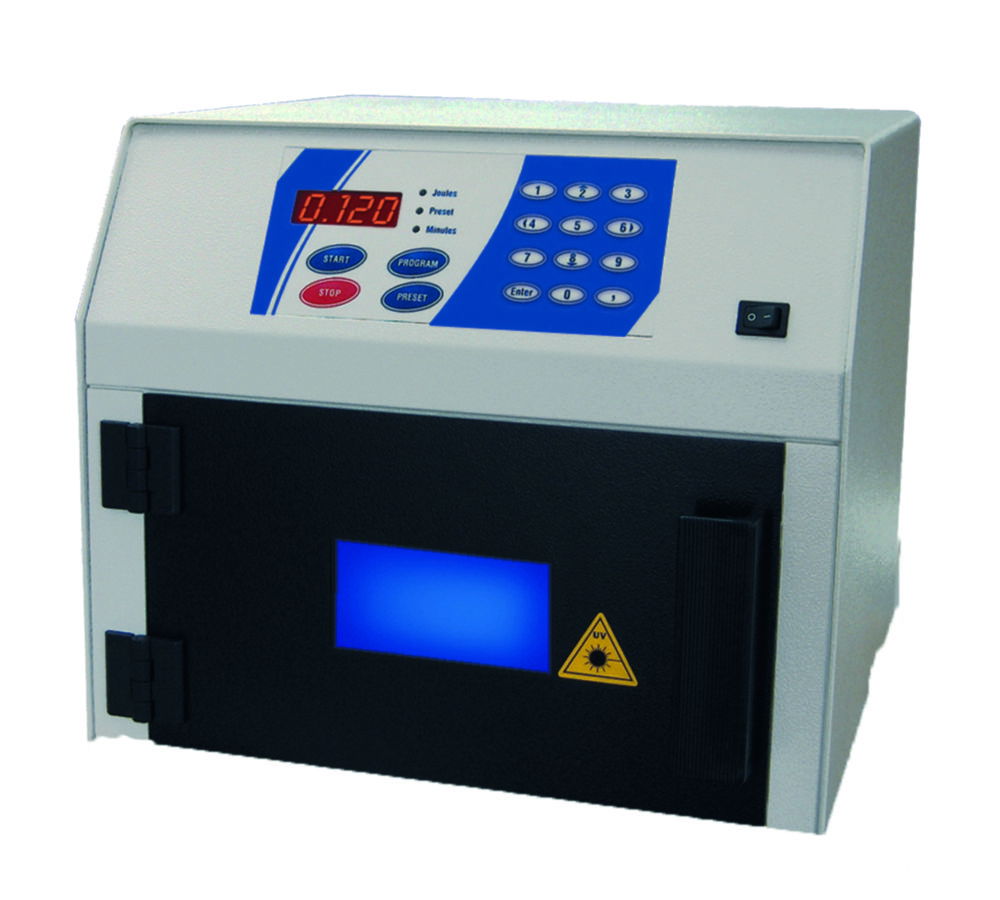

UV irradiation system BIO-LINK
Compact and powerful, ideal for a broad range of applicationsPrecise measurement and control technology, non-ageing UV sensorsChoice for irradiation parameter energy or timeEasy operation: Programme memory, storage of the last parameters, programme resumes after opening of the door, auto-restart after power failureSecure and stable construction, very easy to useEasy exchange of the UV tubes for wavelength changeDimensions (W x D x H)Housing:350 x 360 x 305 mmInterior:260 x 330 x 145 mmOther models available on request.
UV Lamp for TLC
UV Lamp with 2 tubes for different wavelengths.1 on/off button for each tubeTilt sensorTimer with automatic switch-off after 10 min
