HPTLC-Applicator, AS 30
Operates according to the spray-on technique. This principle permits motionless application of samples in lines or dots. Microcomputer controlled stepping motor and gas valve. Clearly arranged menu system enables the input of up to ten methods which can be stored using battery backup memory. Used in combination with an automatic sample transmitter the applicator controls the selection of sample containers, the transport of samples and rinsing processes via a serial interface.Dimensions (W x D x H) 480 x 380 x 280 mm.supply requirements 230 V 50/60 Hz, 50 A.
Outlining templates
With limit stops for precise positioning of the plate on the template. Provide precise pipette guidance due to triangular apertures in a 5mm spaced grid, providing 9, 19 or 39 outlining points, depending on the size of the template. A non-slip coating means that the outlining template does not slide on the bench.

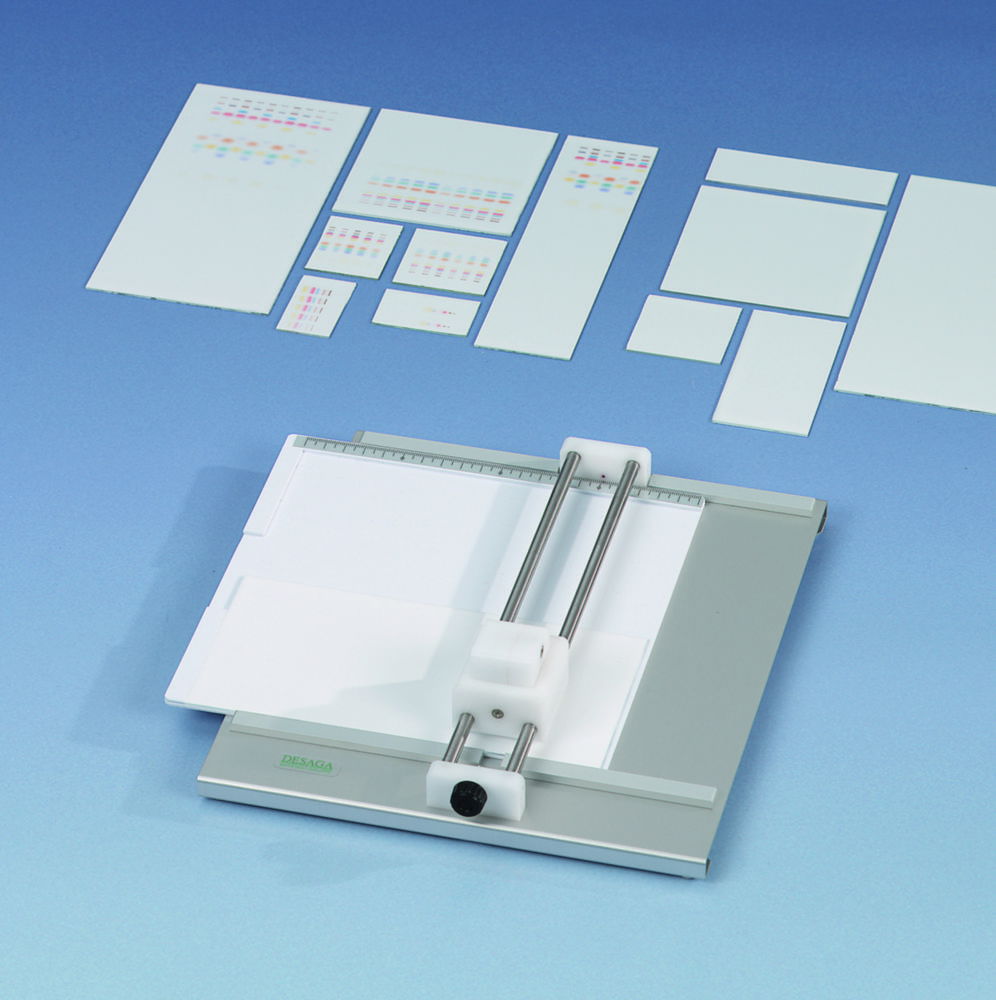

TLC plate cutter
For scoring and cutting glass backed TLC plates. For cost-effectiveness in plate use, or in order to give individual plates different derivatives after separation. Supplied with cutting ring and template.
Universal application and evaluation template
Plexiglass. Simplifies application, marking and evaluation of thin layer chromatograms. Size 200mm x 200mm.
