Attachable stand for Immersion stirrer ZU 6955
In addition to the immersion stirrer, the attachable stand can hold three additional measuring probes. The adjustable stops prevent damage of probe and beaker. Pillar made of anodised aluminium, carriage and base made of polyamide 12 glass-reinforced.With integrated cable ductStroke of the carriage 190 mmClamping options: 2 x 12 mm, 1 x 4 to 14 mm, 1 x 6 to 16 mmMounting directly on the meterDimensions (W x D x H): 130 x 145 x 300 mm

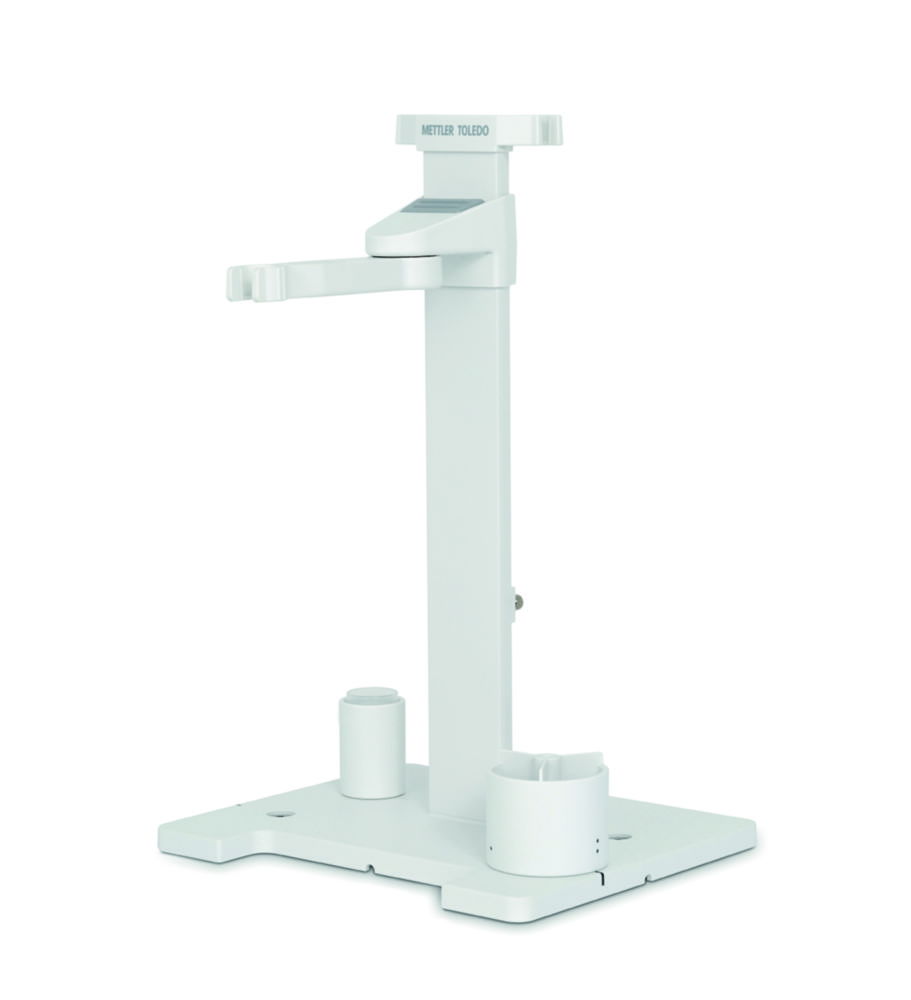

Electrode arm EasyPlace™ for benchtop meters SevenDirect™
Complete electrode arm EasyPlace™ for mounting and precise positioning of electrodes.
Immersion stirrer ZU 6955 for pH meter 765/766 and conductivity meter 703
The immersion stirrer reduces electrode response time for measurement and calibration. Stainless steel impeller Ø 12 mm.Please order power supply unit and attachable stand for fixing the immersion stirrer separately.

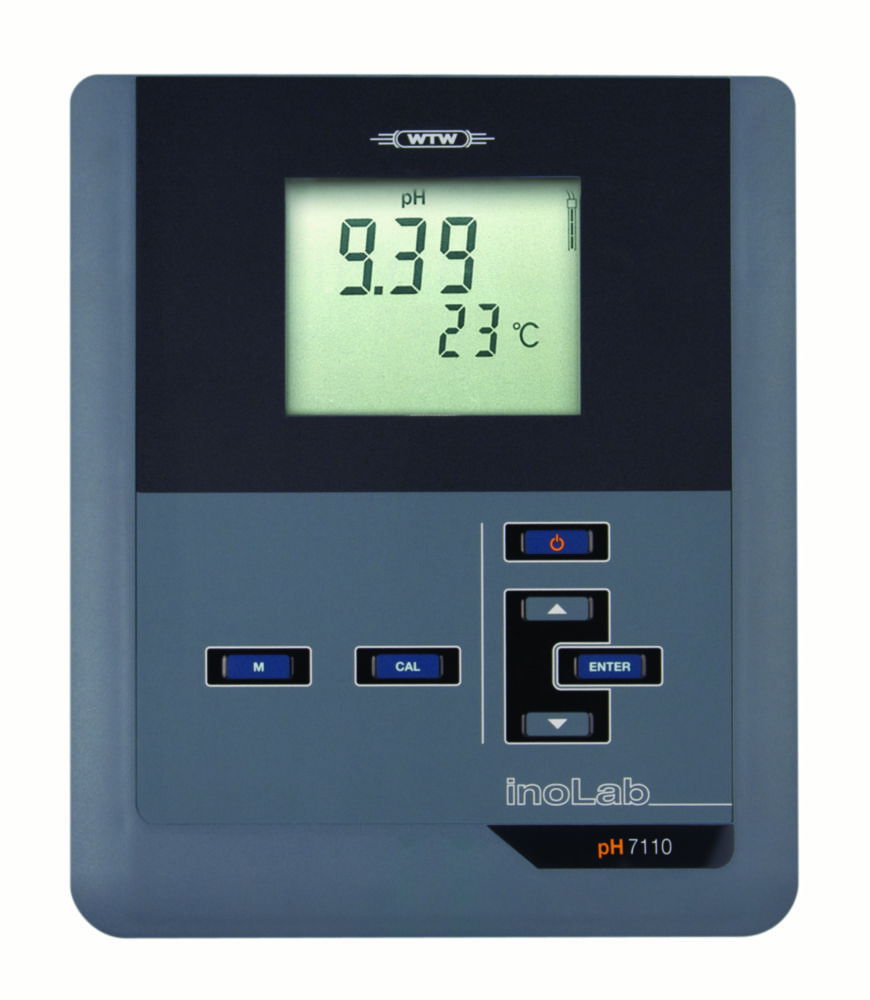

Laboratory instrument inoLab® pH 7110
Basic pH/mV laboratory instrument for all tasks where reliable, accurate readings are required quickly and easily. With large LCD segment display and easy-to-read keyboard. The AutoRead function ensures correct and repeatable measurement results. A built-in timer reminds the user of periodical calibration.Scope of supply: Laboratory instrument with DIN connection, mains power adapter, stand
Laboratory instrument inoLab® pH 7110 BNC
Basic pH/mV laboratory instrument for all tasks where reliable, accurate readings are required quickly and easily. With large LCD segment display and easy-to-read keyboard. The AutoRead function ensures correct and repeatable measurement results. A built-in timer reminds the user of periodical calibration.Scope of supply: Laboratory instrument with BNC connection, mains power adapter, stand
Laboratory instrument inoLab® pH 7110 SET 2
Basic pH/mV laboratory instrument for all tasks where reliable, accurate readings are required quickly and easily. With large LCD segment display and easy-to-read keyboard. The AutoRead function ensures correct and repeatable measurement results. A built-in timer reminds the user of periodical calibration.Scope of supply: Laboratory instrument with DIN connection, mains power adapter, stand, SenTix® 41, 3 mol/l KCl, buffer 4.7/10.01
Laboratory instrument inoLab® pH 7110 SET 4
Basic pH/mV laboratory instrument for all tasks where reliable, accurate readings are required quickly and easily. With large LCD segment display and easy-to-read keyboard. The AutoRead function ensures correct and repeatable measurement results. A built-in timer reminds the user of periodical calibration.Scope of supply: Laboratory instrument with DIN connection, mains power adapter, stand, SenTix® 81, 3 mol/l KCl, buffer 4.7/10.01
Laboratory instrument inoLab® pH 7310
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.Scope of supply: Laboratory instrument with DIN connection, power supply, stand, USB cable
Laboratory instrument inoLab® pH 7310 BNC
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.Scope of supply: Laboratory instrument with BNC connection, power supply, stand, USB cable
Laboratory instrument inoLab® pH 7310 Set 2
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.Scope of supply: Laboratory instrument with DIN connection, power supply, stand, USB cable, SenTix® 41, 3 mol/l KCl, buffer 4, 7, and 10.01
Laboratory instrument inoLab® pH 7310 Set 4
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.Scope of supply: Laboratory instrument with DIN connection, power supply, stand, USB cable, SenTix® 81, 3 mol/l KCl, buffer 4, 7, and 10.01
Laboratory instrument inoLab® pH 7310P
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.An integrated thermal printer (58 mm width) is ready for printout of the measured data.Scope of supply: Laboratory instrument with integrated printer and DIN connection, power supply, stand, USB cable
Laboratory instrument inoLab® pH 7310P BNC
Reliable documentation for pH measurement, if desired also available with built-in printer. A modern backlit graphic display with menu controlled user interface allows easy and intuitive operation. The mini USB-B interface provides fast data transfer to a PC. The internal memory can record up to 5000 GLP complying data including ID, date and time. The housing and the keypad are easy-to-clean. Up to five calibration points cover almost the complete pH range. A calibration history of the 10 last calibrations allows conclusions on the state of the sensor.An integrated thermal printer (58 mm width) is ready for printout of the measured data.Scope of supply: Laboratory instrument with integrated printer and BNC connection, power supply, stand
Laboratory pH meter 766
Laboratory pH meter for standard laboratory applicationsGaincheck® performs a complete instrument check. At the touch of a button it not only checks electrical features, but also display and keypad. A short check after power-on automatically reviews efficiency of instrument functions.Drycheck® monitors electrode impedance and alerts to electrode dry-up even in stand-by mode.Sensoface® monitors the electrode performance and provides information on its condition, by evaluating zero point, transconductance and electrode impedanceTrueline® delivers a calibrated analog line recorder signalCalimatic®, which automatically recognises the correct buffer, calibrates safely and easily at the touch of a button. EMC design protects instrument against electromagnetic interference. CE compliant and follows the EMC guidelines. Case made of glass reinforced PA12, stainless steel cover, IP 54 protective system, ready for connection to ZU 6954 attachment stand. Alphanumeric display, 2 x 4 digits, 14 segment LED, character height 13 mm, 3 Sensoface status indicators.Electrode monitoringSensoface®: Evaluates zero point, transconductance, response time and electrode impedance, good/average/poor optical display gives information on electrode condition, can be disabled.Drycheck®: Monitors electrode impedance for dry-up, glass breakage and defective connections also in stand-by mode. Calibration timer monitors calibration intervals.Instrument self-test system:Gaincheck®: Tests electrode and memory data and monitors the measuring circuit and measurement value analysis. Results of all test stages are displayed.Laboratory pH meter 766, includes mains cable and 3 year guarantee.Laboratory pH meter 766 SET A, with mains cable and pH/Pt 1000 SE 101 combination electrode (Plastic, 110 mm).Laboratory pH meter 766 SET B, with mains cable and pH/Pt 1000 SE 100 combination electrode (Glass, 165 mm).
Laboratory pH meter Knick 765
With many safety features making pH measurement easier and more reliable.Fullcheck® automatically checks instrument function from input socket to recorder output. Functional efficiency of the instrument can be documented as part of quality management in accordance with DIN EN ISO 9000 using a test print. Drycheck® monitors electrode impedance and alerts to electrode dry-up, glass breakage and defective connections even in stand-by mode. Sensoface® monitors the electrode performance and gives information on electrode condition, evaluating zero point, transductance, response time, electrode impedance and calibration intervals.Trueline® delivers a calibrated analog recorder signal (electrically isolated). Calimatic® automatically recognises the correct buffer. EMC design protects instrument from electromagnetic interference. The 765 laboratory pH meter complies fully with NAMUR (German committee for measurement and control standards in the chemical industry) EMC recommendations.Temperature compensation is either automatic with a Pt 100 or Pt 1000 sensor or manual. Data can be processed immediately by a computer via standard RS 232 interface. Direct output to a printer is also possible. Large, bright LED display enables simultaneous readout of 2 measured values, such as pH value and temperature.Case made of glass reinforced PA, with non-rusting, stainless steel, IP 54 protection level cover, ready for connection of ZU 6954 electrode stand.Alpahnumerical display, 2 x 4 digits, 14 segment, 13 mm characters, 3 Sensoface status indicators.Interface:RS 232 without control lines, galvanically isolated, printer or computer interface.Printer control:Via serial interface for ZU 0244 or other standard printers, printing at the touch of a button or via print interval timer 0.1 to 999.9 min.Electrode monitoring:Sensoface®:analysis of zero point, transductance, response time and electrode glass impedance, good/average/poor optical display for monitoring electrode condition can be disabled.Drycheck®: Monitors electrode impedance and alerts to electrode dry-up, glass breakage and defective connections even in stand-by mode. Calibration timer monitors calibration interval.Instrument self-test system:Fullcheck®: tests all measurement electronics, including analogue output, segment and keyboard test in diagnostic mode, automatic short test after power-on, QM documentation print-outs according to DIN EN ISO 9000 retrievable in diagnostic mode or via interface (printer).Laboratory pH meter 765, includes mains cable, electrode not included, 3 year guarantee.Laboratory pH meter 765 SET, with electrode statistics (Opt. 347), pH/Pt 1000 SE 100 combination electrode, ZU 6954 attachment stand and ZU 6928 buffer set (no other optional ancillary equipment available).

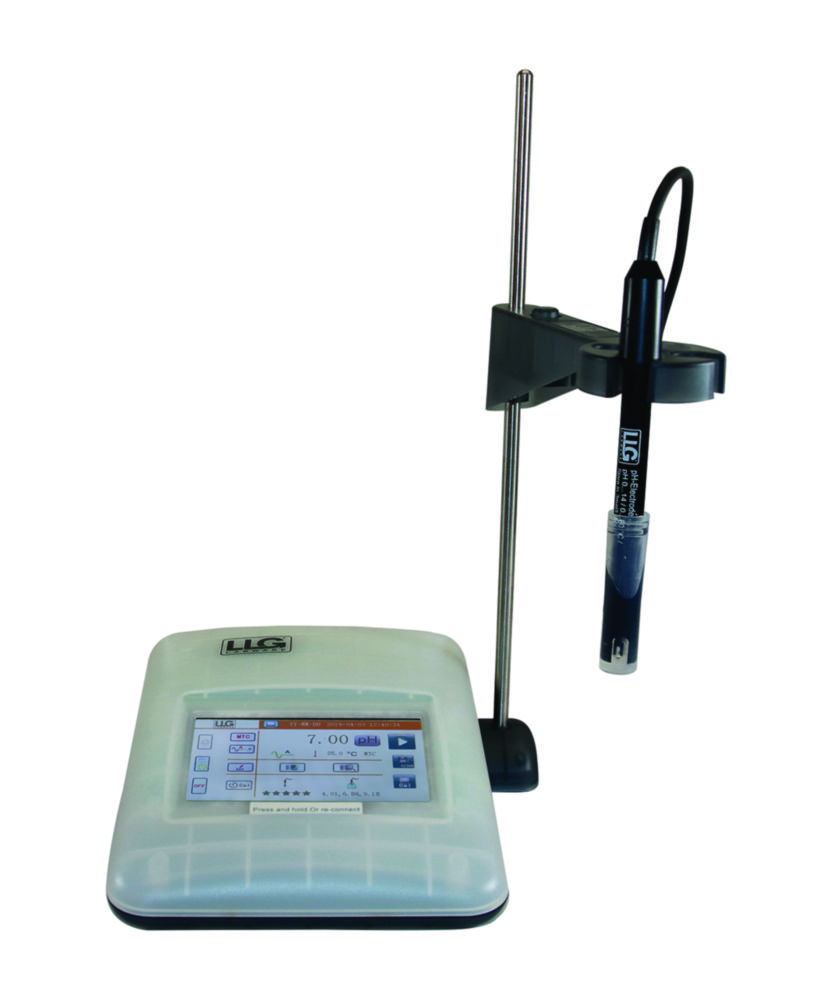

LLG-pH meter 7
The LLG-pH Meter 7 is an easy-to-use, robust table-top instrument for measuring pH and redox potential. The large color-touch-display and the intuitive, language-independent user interface ensure fast and easy use. Particularly suitable for routine applications in laboratories, production plants and schools.Available as set with gel combination electrode ("Made in Germany") with temperature sensor Large color-touch-display with language-independent graphical user interfaceAutomatic temperature compensationMemory for 500 values3-point calibrationReminder function for upcoming calibrationsBNC connection for the electrodeRS232 interface for data transferElectrode holder can be mounted left and rightScope of supply:LLG-pH meter 7: pH meter, electrode holder, protective cover, power supply unitLLG-pH Meter 7 set: pH meter, combination electrode, electrode holder, protective cover, power supply unitSpecificationspH range:0 ... 14pH resolution:0.01pH accuracy:±0,01Temperature range electrode:0 ... 80 °CDimensions (W x D x H):180 x 240 x 80 mmWeight:0.7 kgPower supply:9 V DC/1AIP code:IP 54Warranty:3 years
Nominal electrode zero point/electrode slope option 346 for pH meter 765
For use with electrodes having a zero point other than pH 7 and a slope other than 59.2 mV/pH. Nominal electrode zero point and nominal electrode slope is configurable.Zero point:pH 0 ... 14Slope:25 ... 61 mV/pH
