Advanced Inverted Microscope for Industrial and Material science AE2000 MET
The AE2000 MET series is the ideal microscope for industrial quality inspection and material science. Different objective options allow applications in brightfield & darkfield or examination of larger samples.Infinity Optics [CCIS®]Observation Tube Siedentopf Type, Trinocular-/Phototube 45°, F.N. 20, 360° swivellingInterpupillary Distance 48-75 mmEyepieces High-Eyepoint N-WF 10x/20 mm with diopter adjustment on both eyepieces and rubber eyecupsSide facing quintuple nosepieceObjectives CCIS LM Plan achromat DIN 5X, 10X, 20X, 50XM32 with adapters to W 4/5" x 1/36" (RMS standard)Mechanical stage 280 x 192 mm surface with metal round and oval stage insertsX and Y range of 50 x 50 mmExternal lamphouse, Illumination 12 V/100 W halogen with intensity control and sleeping modeUniversal power supply 100-240 V (CE)Blue filter, Allen hexagonal key, vinyl dust cover and power cord
Advanced Microscope for Industrial and Material science, BA310 MET
The BA310 MET series is the ideal microscope for industrial quality inspection or material science. Different alternative stand options also allow applications in brightfield or examination of larger samplesInfinity Optics [CCIS®]Observation Tube Trinocular 30° (Light split 100:00/20:80), F.N. 20Interpupillary distance 48-75mmWidefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecupsReversed quintuple revolving nosepieceCCIS LM Plan Achromatic objectives 5X, 10X, 20X, 50XCoaxial course and fine focusing systemMechanical stage, hard coated with built-in low position coaxial stage controlEpi-illuminator 12V/50W quartz halogen with integrated field and aperture diaphragms and external lamphousePower supply 100-240V (CE)Power cord, Allen hexagonal key, vinyl dust coverThe BA310 MET series is the ideal microscope for industrial quality inspection or material science. Different alternative stand options also allow applications in brightfield or examination of larger samplesInfinity Optics [CCIS®]Observation Tube Trinocular 30° (Light split 100:00/20:80), F.N. 20Interpupillary distance 48-75mmWidefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecupsReversed quintuple revolving nosepieceCCIS LM Plan Achromatic objectives 5X, 10X, 20X, 50XCoaxial course and fine focusing systemMechanical stage, hard coated with built-in low position coaxial stage controlEpi-illuminator 12V/50W quartz halogen with integrated field and aperture diaphragms and external lamphousePower supply 100-240V (CE)Power cord, Allen hexagonal key, vinyl dust cover
Advanced Microscope for Industrial and Material science, BA310 MET-T
The BA310 MET series is the ideal microscope for industrial quality inspection or material science. Different alternative stand options also allow applications in brightfield or examination of larger samplesInfinity Optics [CCIS®]Observation Tube Trinocular 30° (Light split 100:00/20:80), F.N. 20Interpupillary distance 48-75mmWidefield high eyepoint eyepieces N-WF10X/20mm with diopter adjustment on both eyepieces and rubber eyecupsReversed quintuple revolving nosepieceCCIS LM Plan Achromatic objectives 5X, 10X, 20X, 50XCoaxial course and fine focusing systemMechanical stage, hard coated with built-in low position coaxial stage controlEpi-illuminator 12V/50W quartz halogen with integrated field and aperture diaphragms and external lamphousePower supply 100-240V (CE)Power cord, Allen hexagonal key, vinyl dust coverCoaxial course and fine focusing system, course focusing system adjustableTransmitted illumination of 6V/30W Quartz Halogen Koehler illumination with intensity controlBlue, frosted, green and yellow filtersInterchangeable LED modul for transmitted light available
Advanced Polarization Microscope for Laboratory, Research and Education, BA310 POL
An extremely powerful yet affordable Polarization microscope for Transmitted light samples. Designed for the examination of birefringent samples from petrography and mineralogy, and can also be used for the synthetic materials in industry.Infinity Optics [CCIS®]Observation Tube Siedentopf Type, Trinocular-/Phototube 30°, F.N. 20Interpupillary Distance 55-75 mmEyepieces High-Eyepoint N-WF 10x/20 mm with dioptre adjustment on both eyepieces and rubber eyecupsRotatable analyzer 360°, Bertrand lens 0,5X and slot for compensatorsReversed quadruple revolving nosepiece, single centrable positionsObjectives CCIS® EC Plan Achromatic Strain-free 4x, 10x, 40x-S, 60x-S360° circular rotating stage, 160 mm diameter, 1° increments, 0,1°vernier scale and lockableAchromat swing-out condenser N.A. 0.90/0.13 (strain-free) with iris diaphragm and rotatable polarizerKoehler illumination quartz halogen 6V/30 W with intensity controlUniversal power supply 100-240 V (CE)Empty insertion plate, blue filter, power cord, Allen hexagonal key, vinyl dust cover and spare fuse

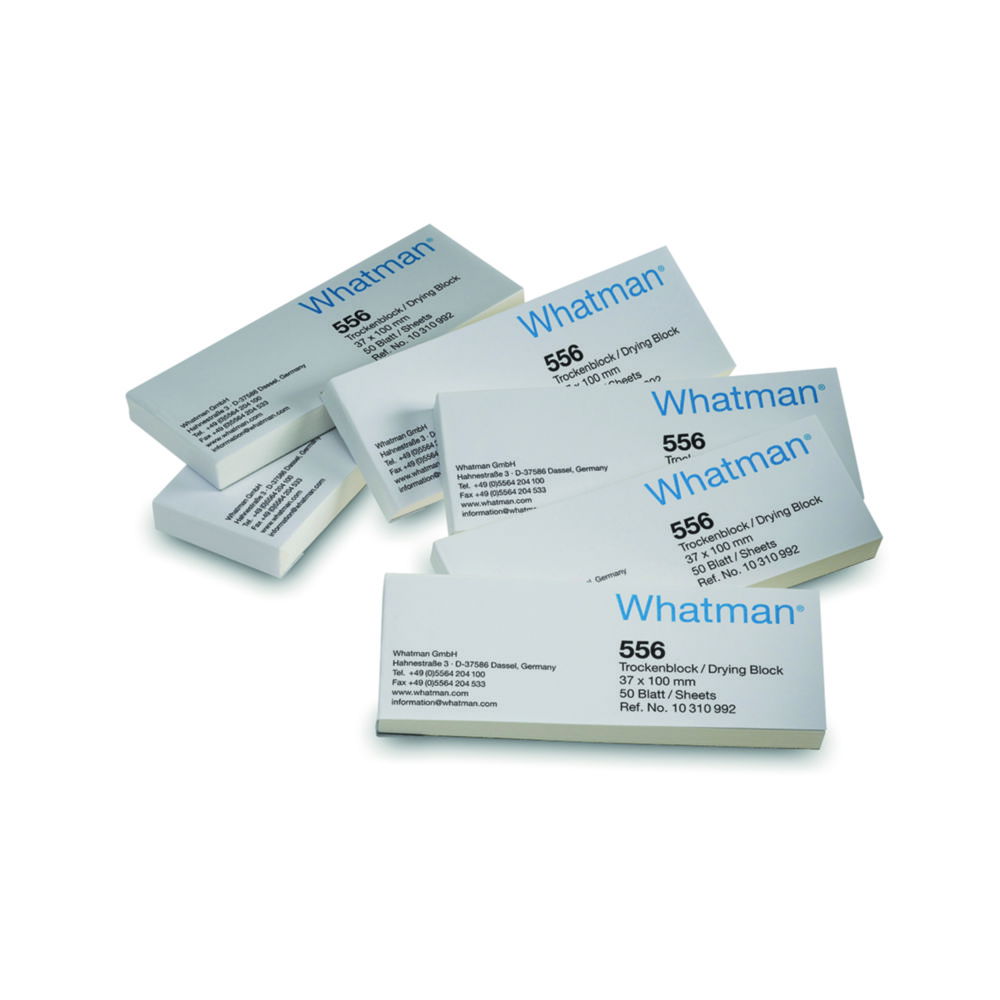

Drying pads grade 556
Absorbent paper strips for the removal of excess liquids, e.g., from microscope specimens (100 x 50 sheets).

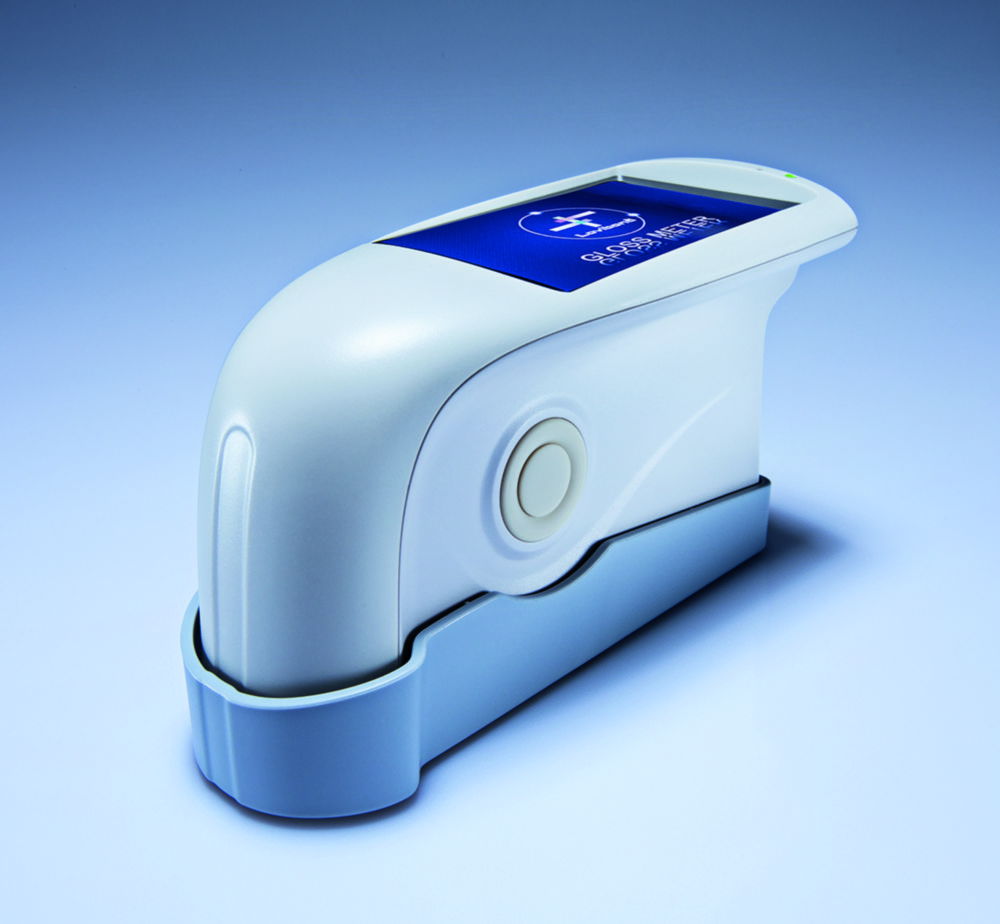

Gloss meter TG 268
Versatile, portable gloss meter designed for fast and accurate measurement of low, medium or high gloss levels of coatings, plastics and related materials. The device is also suitable for large-scale uniformity checks in continuity mode.Basic, statistical and continuous measurement methodsDisplay of 5 data rows including storage capacity of more than 5000 data setsTFT 3.5 inch, capacitive touchscreenIntuitive, integrated software with icon guideUSB and RS 232 interfacesSupports ASTM D523, ASTM C584, ASTM D2457, BS3900 D5, DIN 67530, DIN EN ISO 2813, EN ISO 7668 and JI Z 8741 standardsScope of supply: Gloss meter, OnGloss software (PC), calibration plate, USB cable, external DC power supply, user manual (USB stick), carrying case, batterySpecificationsMeasuring angle:20° / 60° / 85°Measuring range:20°: 0 ... 2000 GU 60°: 0 ... 1000 GU 85°: 0 ... 160 GUResolution:0.1 GUEnvironmental conditions:0 ... 40 °C, 85% RHDimensions (W x D x H):160 x 75 x 90 mmWeight:350 gPower supply:3200 mAh Li-ion batteryStorage:Basic Mode: 1000 Statistical Mode: 5000 Continuous Mode: 5000

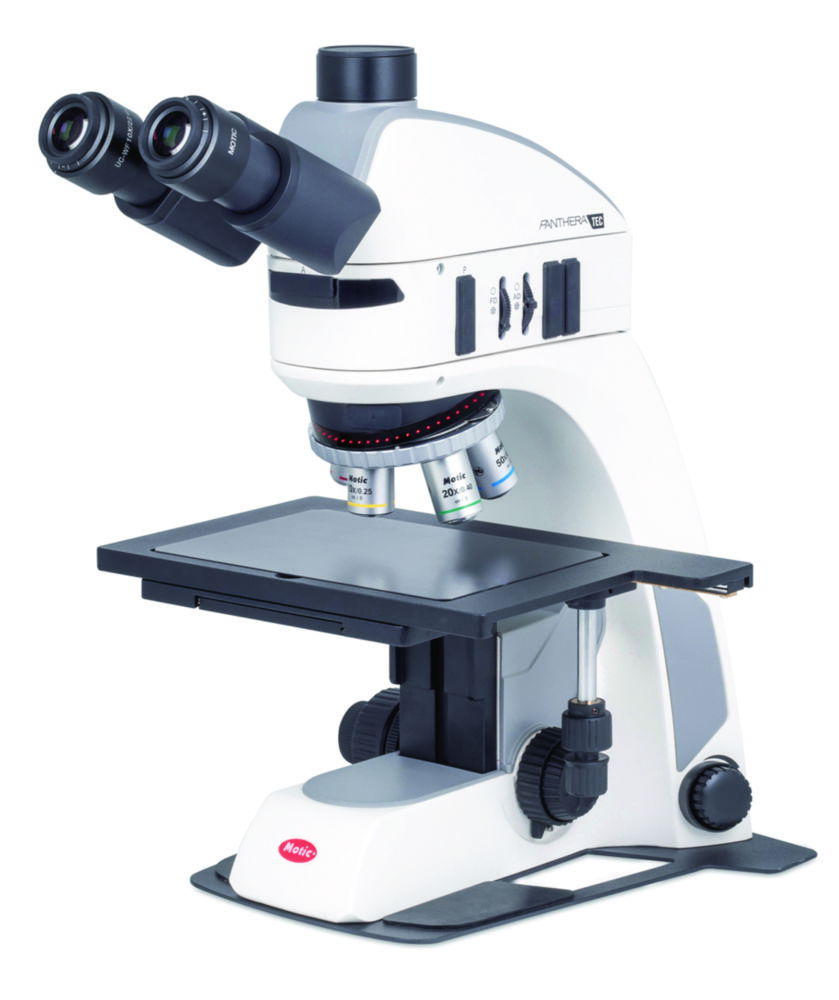

Incident and transmitted light microscopes Panthera TEC MAT
Incident and transmitted light microscopes for science materials, inspection of semiconductor components, LCD displays and wafers, equipped with an intelligent brightfield / darkfield illumination concept. The microscope models with additionally integrated LED transmitted light expand the application options in the direction of complex composite materials.Tube type Siedentopf, swivelingWidefield oculars for spectacle wearers with diopter adjustment on both ocularsCCIS® Plan Achromat & S-APO (PB free), DIN objectivesReversed coded nosepieceLED incident light illuminator with field and aperture diaphragm, with slots for polariser / analyser slidersWith interchangeable illuminationMotic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicatorCoaxial coarse and fine focusing system with tension adjustmentIntegrated power supply with sleep modeUSB 2.0 for external camera powerAdditional equipment depending on the model with bright field (transmitted light), segmentable dark field (reflected light), polarization (reflected light)Scope of supply: Dust cover, power cord, allen key, screws for metal extension support
Microscope Cleaning Kit
Content: 1 power blower, cleaning liquid, cleaning cloth, retractable brush
Polarisation microscope Panthera TEC POL
Powerful polarisation microscope for all material sciences. Maximum flexibility for all applications in polarisation microscopy, suitable for transparent as well as opaque samples from the education sector and industrial quality assurance.Tube type Siedentopf, swivelingWidefield oculars for spectacle wearers with diopter adjustment on both ocularsCCIS® Plan achromatic objectives UC PL (strain-free)Reversed coded nosepiece with single centering holesBertrand lens and slot for compensatorsFocusable and centerable Achromat Swing-out Abbe condenser N.A. 0.90/0.13 (strain-free) and rotatable polariserIllumination acc. to Köhler, with interchangeable illuminatorMotic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity and mode indicatorCoaxial coarse and fine focusing system with tension adjustmentCompact, built-in mechanical stageIntegrated power supply with sleep modeVisual camera outputUSB 2.0 for external camera powerScope of supply: Microscope, dust cover, power cord, Allen key, blue filter, halogen bulb, LED module, adjustable key for nosepiece, interference color chart, screws for metal extension support

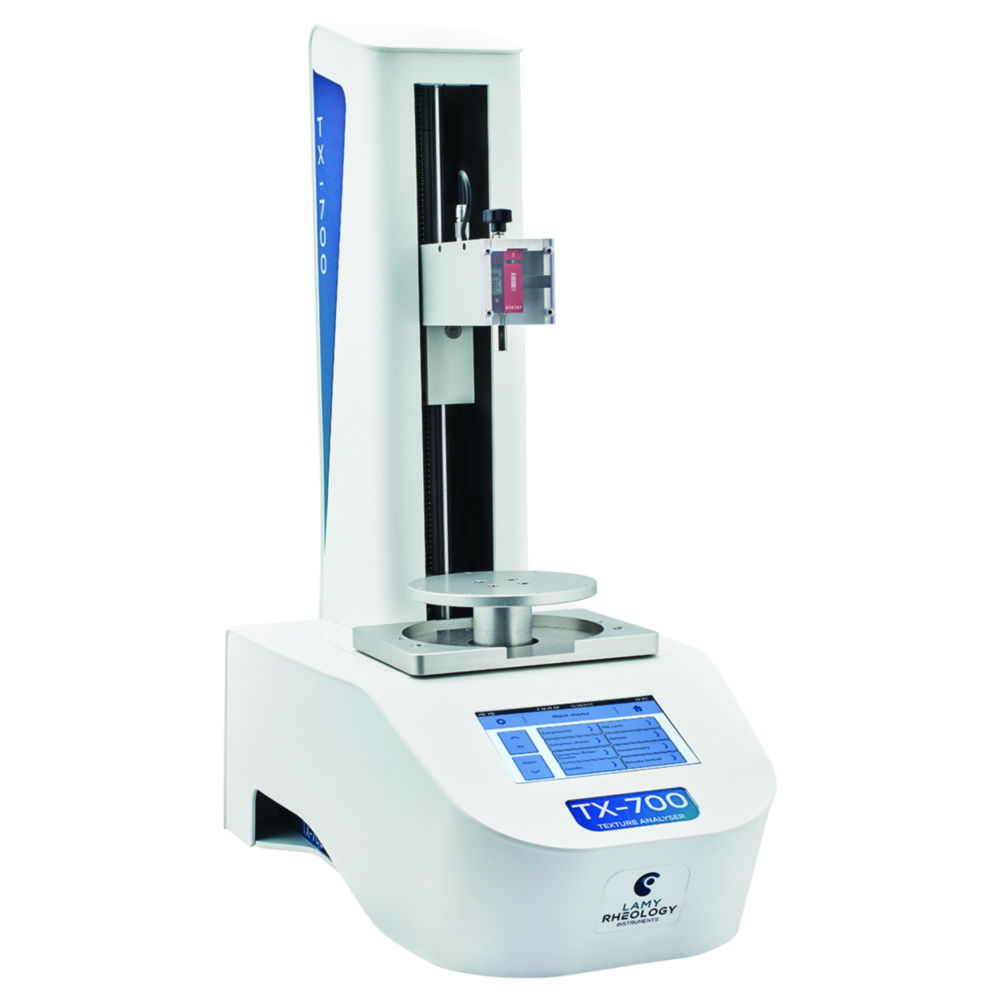

Texture analyser TX-700
The texture analyser TX-700 is a testing device for determining the physical properties of various substances and materials. E.g. the elasticity, the adhesiveness and the strength of substances can be measured. The TX-700 is ideal for your consistent, elastic and adhesive products.Wide selection of different test specimensDisplay settings: force, speed, distance, time, temperature, measuring sensor, force sensorUnits: Gram or NewtonMeasurement modes: Penetration, compression, traction, relaxation, TPA cycleIncludes PT100 probe for temperature measurement from -50 to 300 °CSpeed adjustable from 0.1 to 10 mm/sRS232 and USB interface

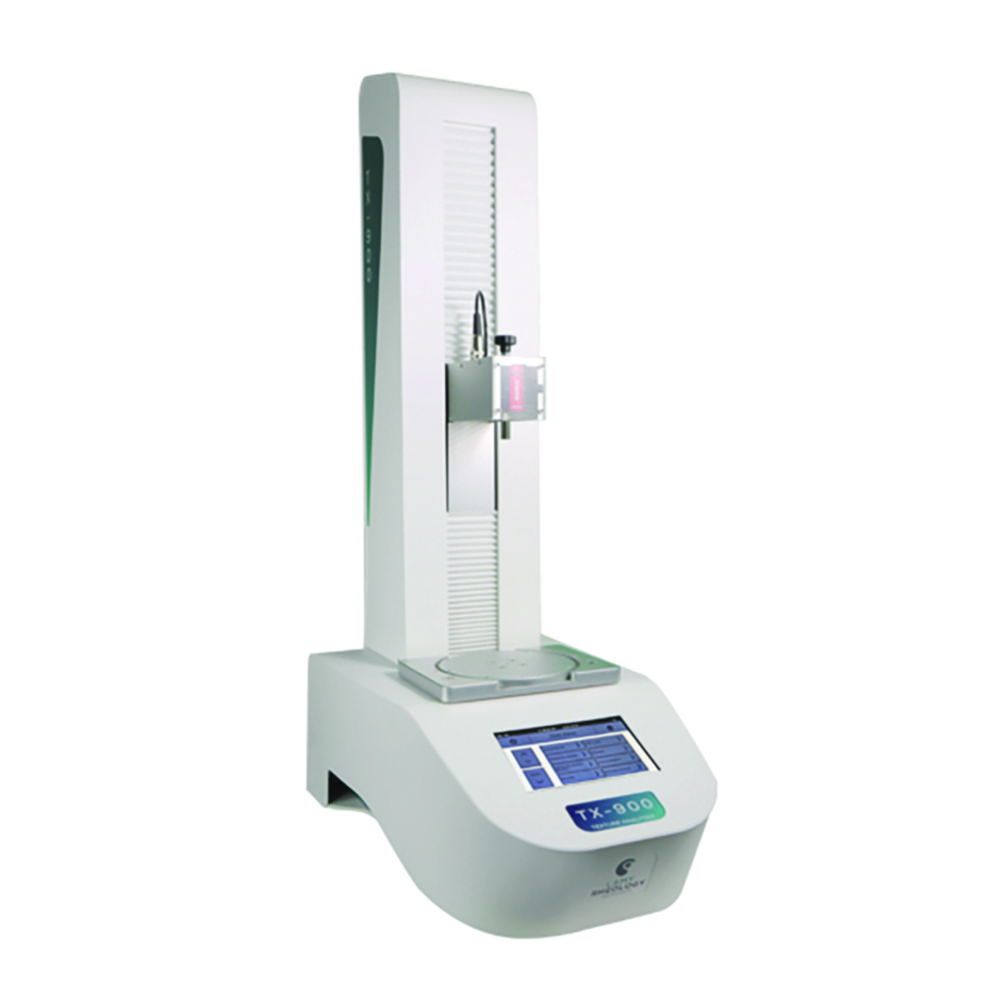

Texture analyser TX-900
The texture analyser is a testing device for determining the physical properties of a wide range of substances and materials. Among other things, the elasticity, adhesion, and strength of materials can be determined. Customised methods can be programmed and saved in the TX-900. Measurements are displayed directly as curves on the large colour touchscreen. Measurement results can be exported and saved on a USB stick.Large selection of different test specimensDisplay settings: Force, speed, distance, time, temperature, measuring sensor, force sensorUnits: Gram or NewtonMeasurement modes: Penetration, compression, traction, relaxation, TPA cyclePT100 probe for temperature measurement from -50 to 300 °CSpeed adjustable from 0.1 to 10 mm/sRS232 and USB interface

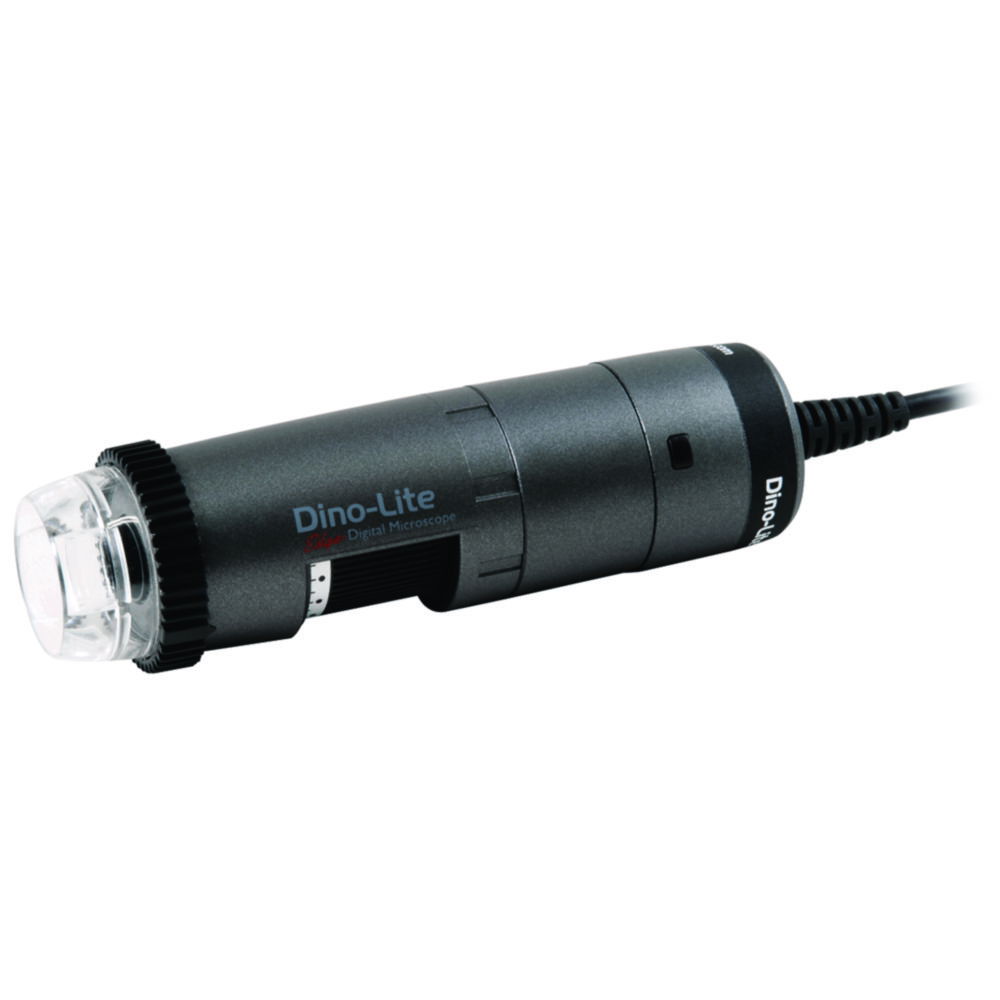

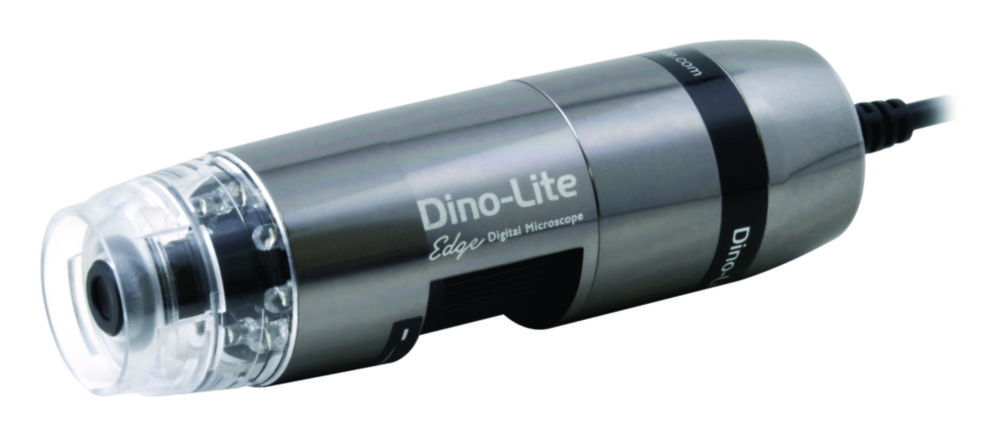

USB Hand held microscopes for industry, Edge
Dino-Lite digital USB microscopes are powerful, portable and easy to use for many different applications in the industry and for material sciences.USB 2.0, max. 30 fpsMetall housing or plastic housingDinoCapture software for Windows / DinoXcope for MacOSEdge sensor for low image errors or vignettingAdjustable polariser for reflective objectsExtended Depth of Field (EDOF)Extended Dynamic Range (EDR)Automatic Magnification Reading (AMR)Flexible LED Control (FLC)Long Working Distance (LWD)
USB Hand held microscopes for industry, Edge, wireless
Dino-Lite digital USB microscopes are powerful, portable and easy to use for many different applications in the industry and for material sciences.USB 2.0, max. 30 fpsMetall housing or plastic housingDinoCapture software for Windows / DinoXcope for MacOSEdge sensor for low image errors or vignettingAdjustable polariser for reflective objectsExtended Depth of Field (EDOF)Extended Dynamic Range (EDR)Automatic Magnification Reading (AMR)Flexible LED Control (FLC)Wireless operation with adapter WF-20 (incl.)
USB Hand held microscopes for industry, Edge, without polariser
Dino-Lite digital USB microscopes are powerful, portable and easy to use for many different applications in the industry and for material sciences.USB 2.0, max. 30 fpsMetall housing or plastic housingDinoCapture software for Windows / DinoXcope for MacOSEdge sensor for low image errors or vignettingAutomatic Magnification Reading (AMR)Flexible LED Control (FLC)

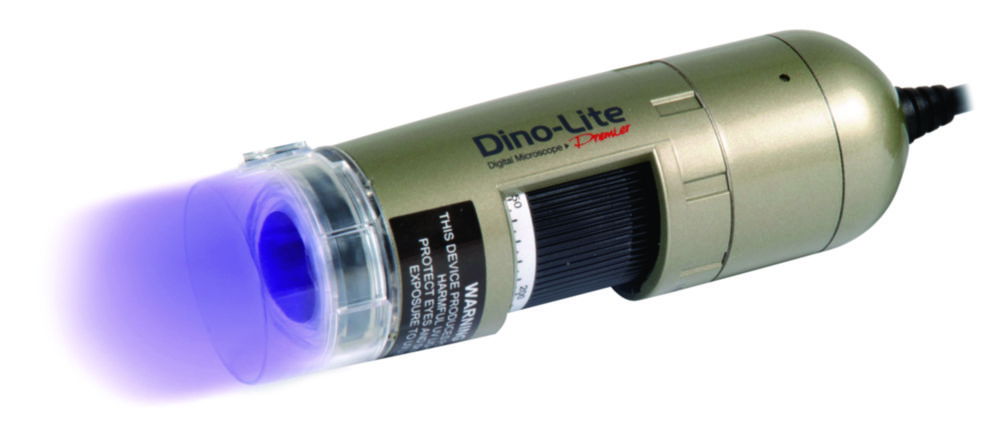

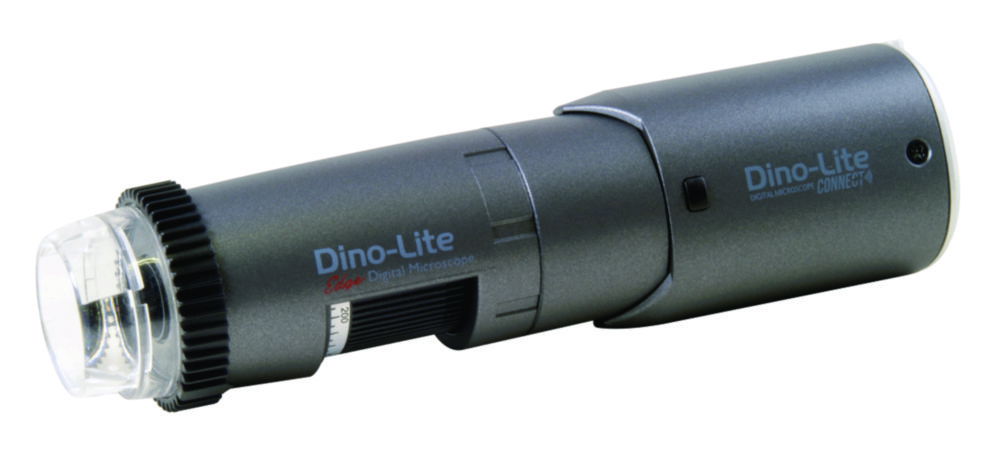

USB Hand held microscopes for industry, wireless-ready
Dino-Lite digital USB microscopes are powerful, portable and easy to use for many different applications in the industry and for material sciences.USB 2.0, max. 30 fpsMetall housing or plastic housingDinoCapture software for Windows / DinoXcope for MacOSWireless operation with adapter WF-10LED lights switchable (UV 375 nm)
USB Hand held microscopes for industry, wireless-ready
Dino-Lite digital USB microscopes are powerful, portable and easy to use for many different applications in the industry and for material sciences.USB 2.0, max. 30 fpsMetall housing or plastic housingDinoCapture software for Windows / DinoXcope for MacOSEdge sensor for low image errors or vignettingAdjustable polariser for reflective objectsExtended Depth of Field (EDOF)Extended Dynamic Range (EDR)Automatic Magnification Reading (AMR)Flexible LED Control (FLC)Long Working Distance (LWD)Wireless operation with adapter WF-20 (optional)
USB Hand held microscopes for industry, with polariser
Dino-Lite digital USB microscopes are powerful, portable and easy to use for many different applications in the industry and for material sciences.USB 2.0, max. 30 fpsMetall housing or plastic housingDinoCapture software for Windows / DinoXcope for MacOSAdjustable polariser for reflective objectsLong Working Distance (LWD)

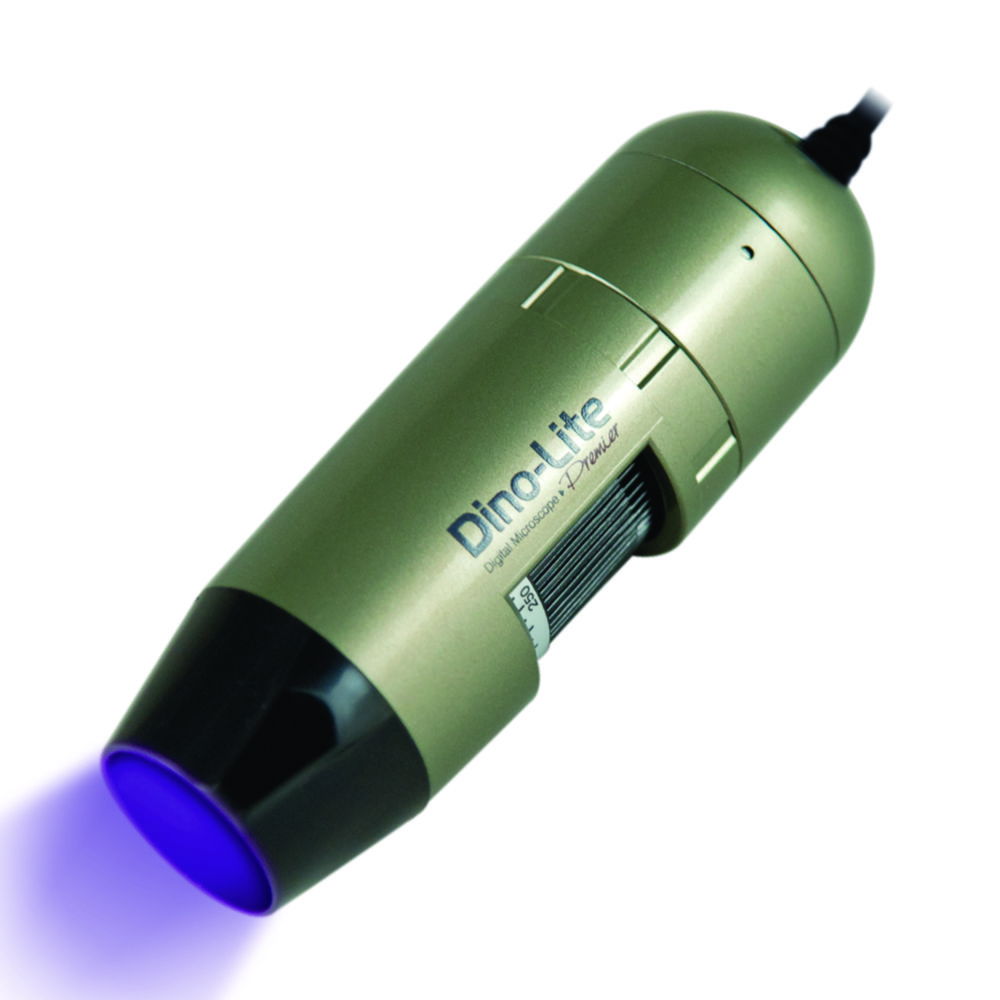

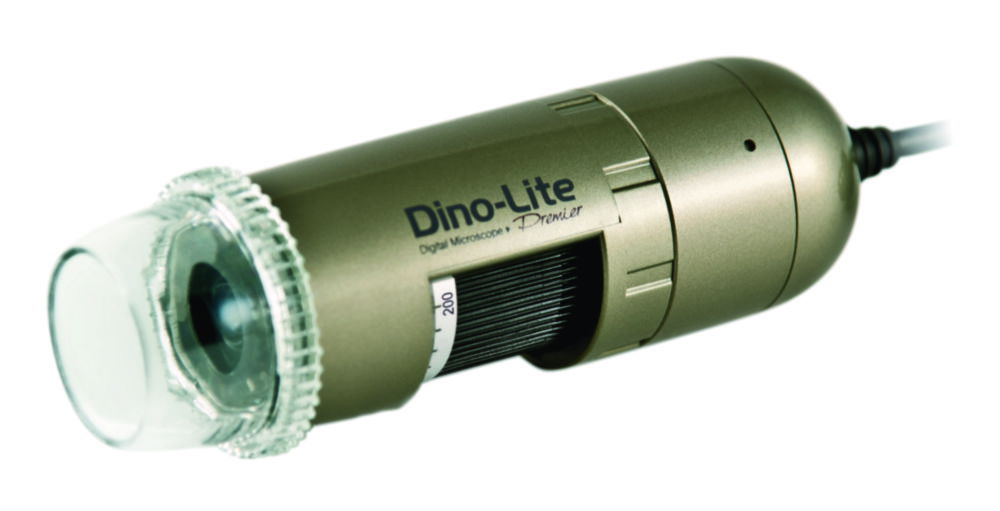

USB Hand held microscopes for industry, without polariser
Dino-Lite digital USB microscopes are powerful, portable and easy to use for many different applications in the industry and for material sciences.USB 2.0, max. 30 fpsMetall housing or plastic housingDinoCapture software for Windows / DinoXcope for MacOSLED lights switchable (UV 395 nm, IR 940 nm)

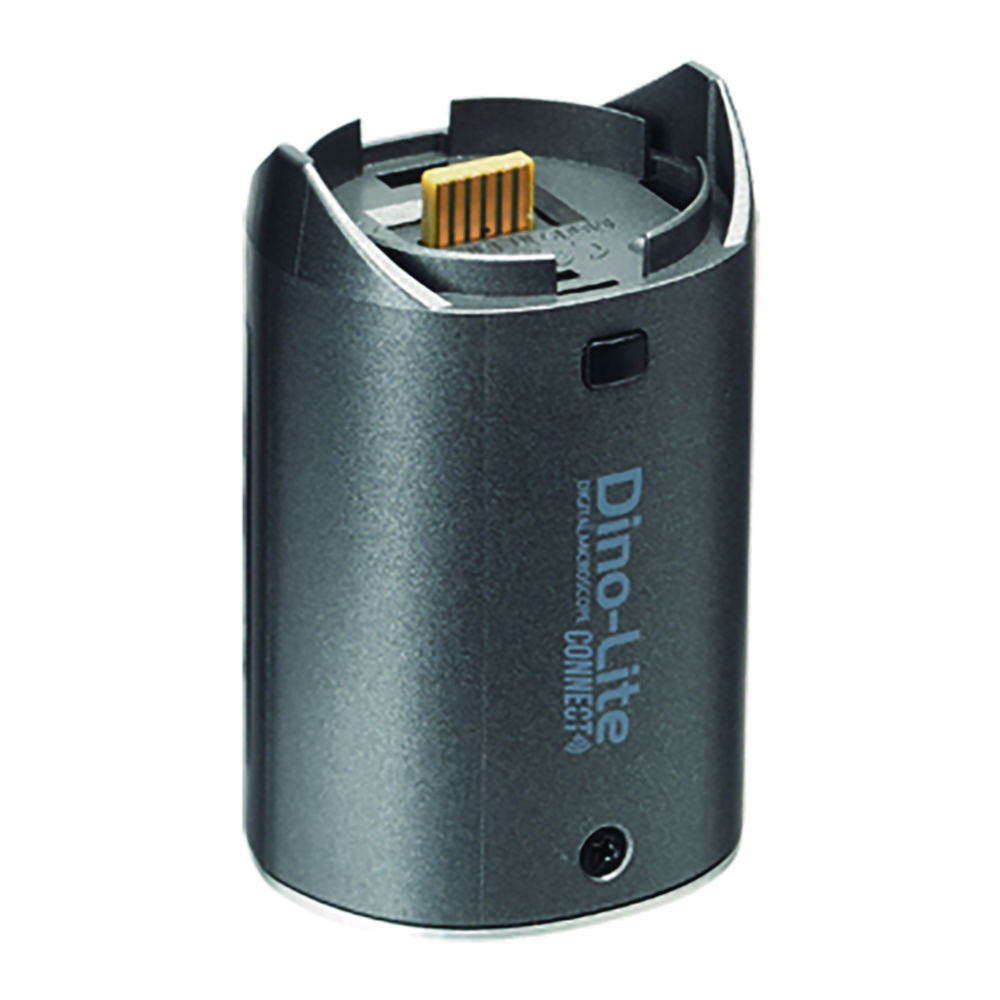

WiFi streamer WF-20
Live images can be created wirelessly in connection with the iOS app, Android app or with the DinoCapture 2.0 software for Windows.For microscopes AF4x15 seriesStable image transmissionLong battery life (more than 2,5 hours)Scope of supply:WiFi streamer, user manual, mini USB charging cable, integrated Li-Ion battery
