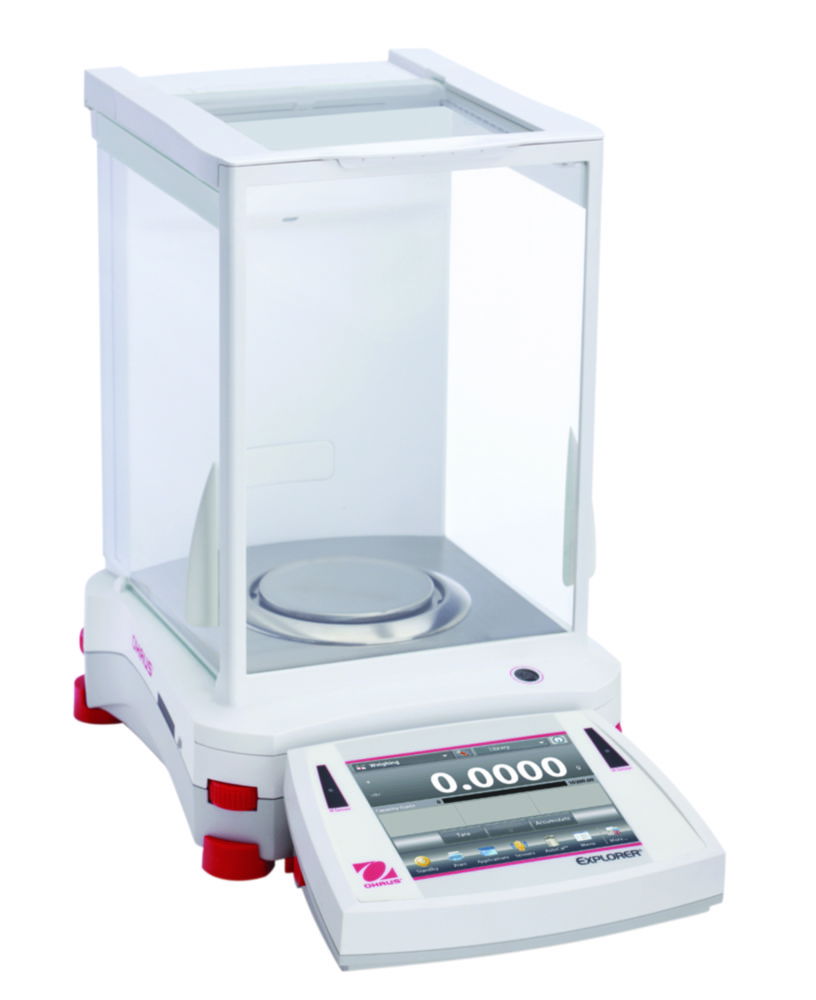

Analytical balances Explorer® EX, with automatic draftshield doors
Ohaus GmbH
€0.00
Content: 1
Product number: 6286990
Product information "Analytical balances Explorer® EX, with automatic draftshield doors"
- High resolution multi-lingual colour VGA touch display with icons for simple operation
- Programmable multi-functional touch-free sensors
- Multiple application modes plus library for storage of personal application settings
- Application: Weighing (17 units + custom units), Parts Counting, % weighing, Animal/Dynamic Weighing, Checkweighing, Filling, Totalization, Formulation, Differential weighing, Density determination, Peak hold, Ingredient costing, Pipette adjustment, Gross/Net/Tare Weighing
- Display: High resolution full-color VGA graphic display (5.7" diagonal), 4-wire resistive touch screen. QWERTY keyboard and numeric keypad
- Operation: Mains Operation
- Communication: Easy access communication ports including USB host, USB device, RS232 and an optional 4th port for either RS232 or Ethernet
- GLP/GMP Data Output with Real Time Clock. Direct Data Transfer Function
- Construction: Metal base, ABS top housing, stainless steel pan, anti-static glass draftshield with flip-top door, replaceable in-use cover, automatic draftshield doors on selected models
- Design features: 3-door frameless draftshield with removable panels on 0.1 mg and 1 mg models. With built in ionizer on 0.01 mg automatic draftshield door models. Modular display design with adjustable angle (attach to base, wall or optional tower). AutoCal™ fully-automatic internal calibration system. Level assist feature with illuminated level indicator. Selectable environmental and auto-print settings. Integral weigh below hook. Protective in-use cover. Software lock switch
| Adjusting program: | Internal |
|---|---|
| Depth: | 393 mm |
| Depth weighing plate: | 80 mm |
| Dimensions (WxDxH): | 230 x 393 x 350 mm |
| Height: | 350 mm |
| Manufacturer Article Number: | 30139518 |
| Max. load: | 120/220 g |
| Max. voltage: | 240 V |
| Min. voltage: | 100 V |
| Power supply: | 100 ... 240 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Readability: | 0,01/0,1 mg |
| Type: | EX225DM/AD |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41111517 |
| Verified calibration: | Verified |
| Weighing plate (WxD): | Ø 80 mm |
| Weight: | 7 kg |
| Width: | 230 mm |
| With draft shield: | Yes |
